5.4.2

Display

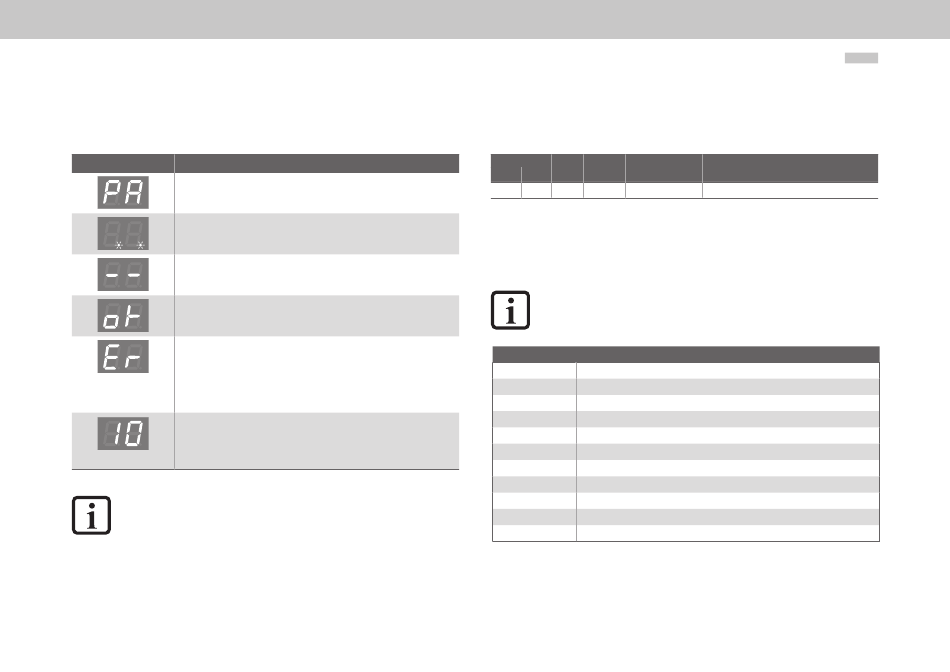

The following table defines various displays and status information about the display.
Display Meaning
Menu entries
("PA" in this case serves as an example, further possible entries see sections 5.4.5
and 5.4.6)
[flashing decimal points
Selected function in action
[two dashes]
Entry/function not available
[OK]
Action executed successfully, no errors
[Error]
Action via control unit not executed successfully,
"Er" flashes alternately with error number
(see section 5.4.3)
Display device error,
"Er" flashes alternately with error number and error location
(see "MSD Servo Drive Device Help")
Numerical values
("10" in this case serves as an example)
In the parameter menu (PA) error numbers are shown in decimal.
All other values are displayed in hexadecimal. In these cases the 10 displayed
would represent the decimal value 16.
Table 5.7 Meaning of display
NOTE:
If no input is made via the keyboard for a period of 60 s, the display returns to
the device status display.
MSD Single-Axis Servo Drive Compact Operation Manual
5.4.3

Parameter menu (PA)

On the Parameter menu the device settings can be reset to the factory setting.
Menu level Param- Value
Meaning
1 2 eter range
PA
Pr - - Parameter reset
Table 5.8 Parameter menu
5.4.4

Error numbers

A failed user action is indicated by an error message. The message consists of an
alternating display of "Er" and the error number.
NOTE:
The error messages displayed during user input should not be confused with
drive error messages. For detailed information on the error codes and on
error management refer to the "MSD Servo Drive Device Help".
Error number Meaning
File system no error
00
File system any file system error
01
File system command rejected
02
File system function parameter invalid File system
03
create file error
04
File system open file error
05
Parameter reset to factory settings failed Parameter
17
write access failed
18
Save parameter data set non volatile failed Not all
19
parameters written
20
Error while reset to factory settings
21
Table 5.9 Error numbers
50
Explanation
Reset device settings to factory setting
