Electrical installation
moog
ID no.: CA65642-001 06/2018
4.5
Overview of the connections, Size 7
The layout on the left shows the corresponding positions of connectors and terminals.
For improved clarity we have added an abbreviation to the designation for the
connectors and terminals.
MSD Single-Axis System Operation Manual AC-AC Servo Drive
L1
L2
L3
PE ZK-
ZK+
X11
X45
5
D1, D2
T1, T2
X2
SW
W
W
W
W
W
W
W
W
W
HW
X12
RB-
RB+
PE
U
V
W

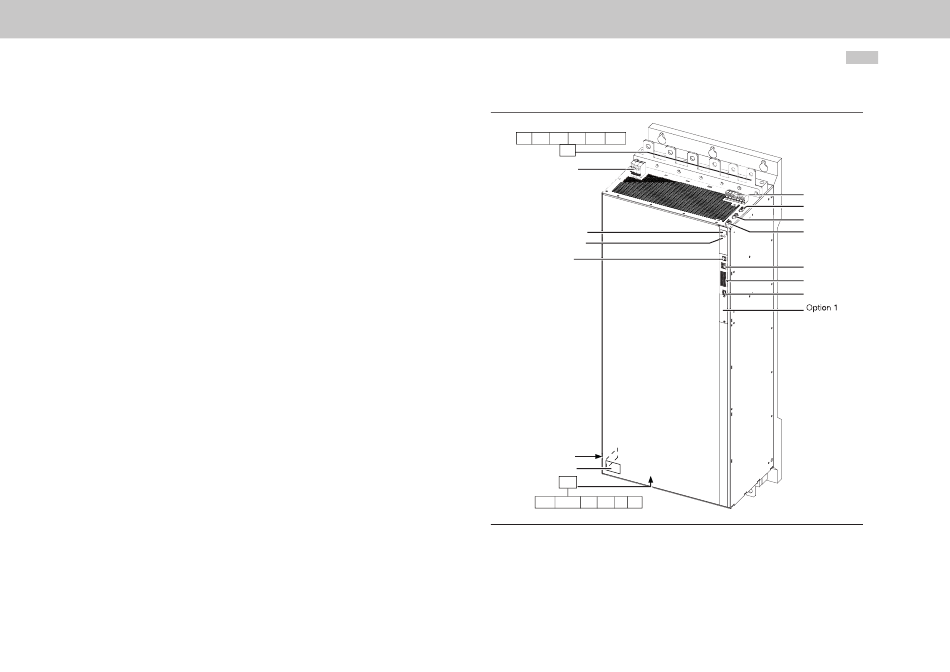

Figure 4.9 Layout, Size 7 (without shield plates and terminal covers on X11 and X12)
28
X44
X8
X7
X6
X3
X4
X5
