Ethernet Ip Address Menu (Ip) - Moog MSD Operation Manual

5.4.4

Ethernet IP address menu (IP)

An Ethernet TCP/IP port is available as a service and diagnostics interface. The IP
address is set in the factory to 192.168.39.5. It can be changed using the PC software
Moog D A 5 or via the display.
rive DministrAtor
Menu level Value
Parameter Meaning
1 2 range
IP
Iu b0 00..FF IP address
update byte 0
b1 00..FF IP address
update byte 1
b2 00..FF IP address
update byte 2
b3 00..FF IP address
update byte 3
Ir - - IP reset to
factory setting
Su b0 00..FF Subnet mask
update byte 0
b1 00..FF Subnet mask
update byte 1
b2 00..FF Subnet mask
update byte 2
b3 00..FF Subnet mask
update byte 3
Sr - - Subnet mask
reset to
factory setting

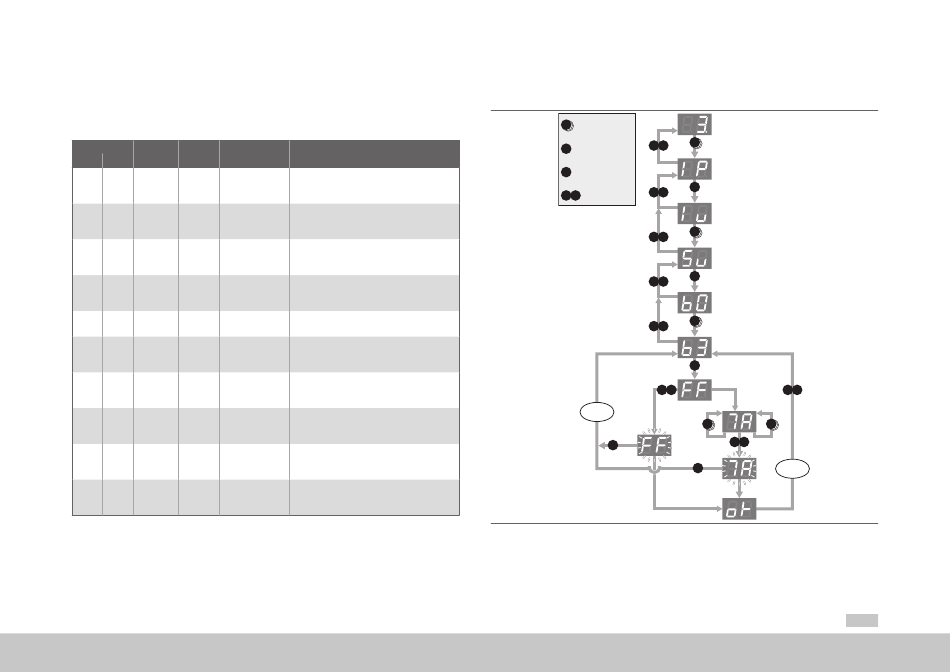

Table 5.7 IP address menu
moog
ID no.: CA65642-001 06/2018
Commissioning
Explanation
Setting for byte 0 of the IP address in
hexadecimal format
(e.g. "05" in 192.168.39.5)
Setting for byte 1 of the IP address in
hexadecimal format
(e.g. "27" for 192.168.39.5)
Setting for byte 2 of the IP address in
hexadecimal format
(e.g. "A8" for 192.168.39.5)
Setting for byte 3 of the IP address in
hexadecimal format
(e.g. "C0" at 192.168.39.5)
Reset IP address to factory setting
(192.168.39.5)
Setting for byte 0 of the subnet mask in
hexadecimal format
(e.g. "00" in 255.255.255.0)
Setting for byte 1 of the subnet mask in
hexadecimal format
(e.g. "FF" in 255.255.255.0)
Setting for byte 2 of the subnet mask in
hexadecimal format
(e.g. "FF" in 255.255.255.0)
Setting for byte 3 of the subnet mask in
hexadecimal format
(e.g. "FF" in 255.255.255.0)
Reset subnet mask to factory setting
(255.255.255.0)
Example configuration of the subnet mask
In this example the subnet mask is changed from 255.255.255.0 to 122.255.255.0.
several actuations
of buttonTx (X = 1, 2)
Tx
until the desired menu
appears in the display
T1 T2
single actuation
Tx
of button Tx (X = 1, 2)
back
Actuation of
any button
simultaneous actuation T1 T2
T1 T2
of both buttons T1 and T2
back
T1 T2
back
T1 T2
back
T1 T2
back
T1 T2
back
Value NOT
saved
<5 s
>5 s
Figure 5.3 Example configuration of the subnet mask
MSD Single-Axis System Operation Manual AC-AC Servo Drive
T1
T2
T1
T2
T1
T2
T1 T2
T1 T2
T1 T2
accept
<5 s
Value
saved
>5 s
