Labfors 5 – Version for Microorganisms
Accessories

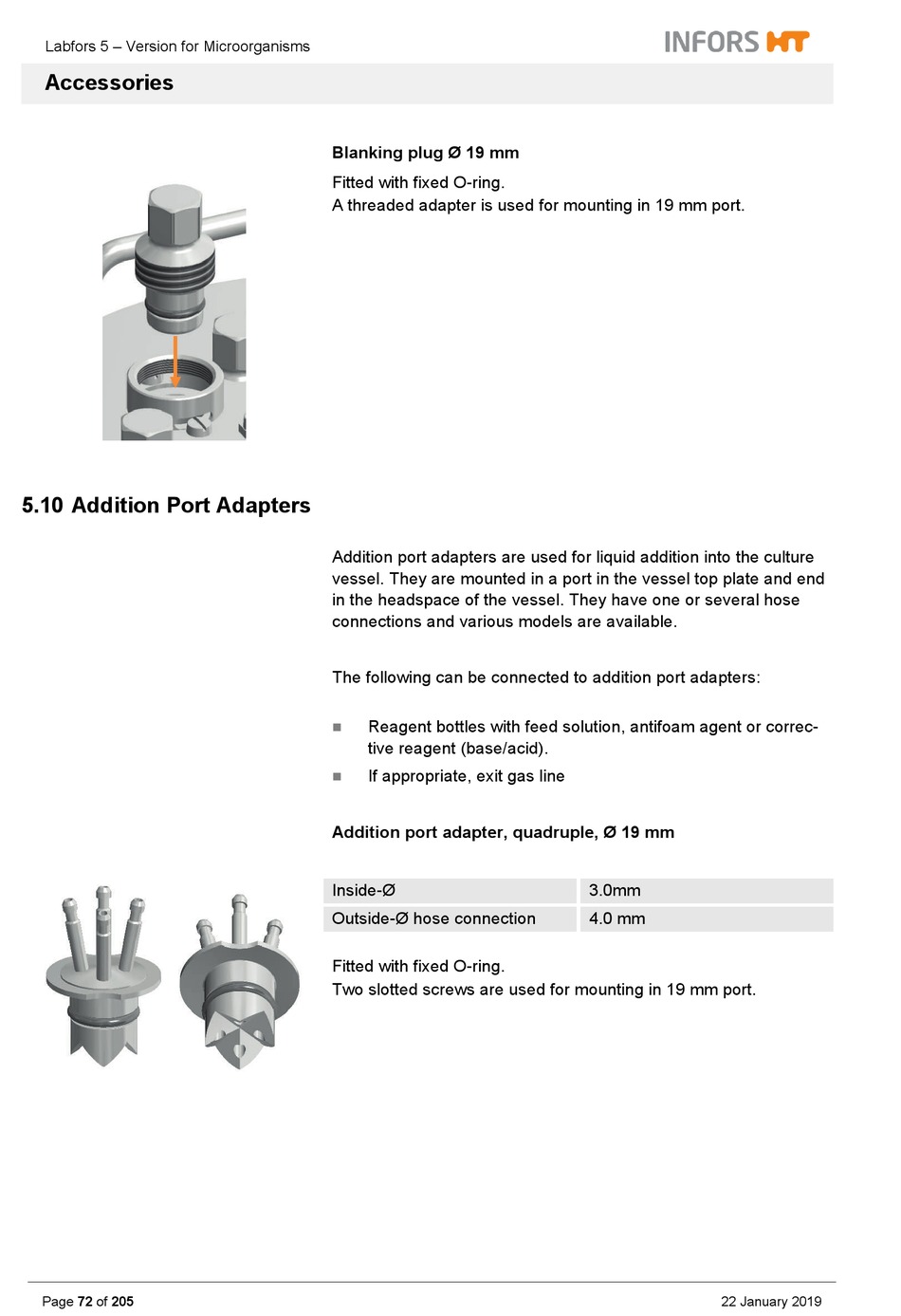

5.10 Addition Port Adapters

Page 72 of 205
Blanking plug Ø 19 mm
Fitted with fixed O-ring.
A threaded adapter is used for mounting in 19 mm port.
Addition port adapters are used for liquid addition into the culture
vessel. They are mounted in a port in the vessel top plate and end
in the headspace of the vessel. They have one or several hose
connections and various models are available.
The following can be connected to addition port adapters:
Reagent bottles with feed solution, antifoam agent or correc-

tive reagent (base/acid).
If appropriate, exit gas line

Addition port adapter, quadruple, Ø 19 mm
Inside-Ø
Outside-Ø hose connection
Fitted with fixed O-ring.
Two slotted screws are used for mounting in 19 mm port.
3.0mm
4.0 mm
22 January 2019
