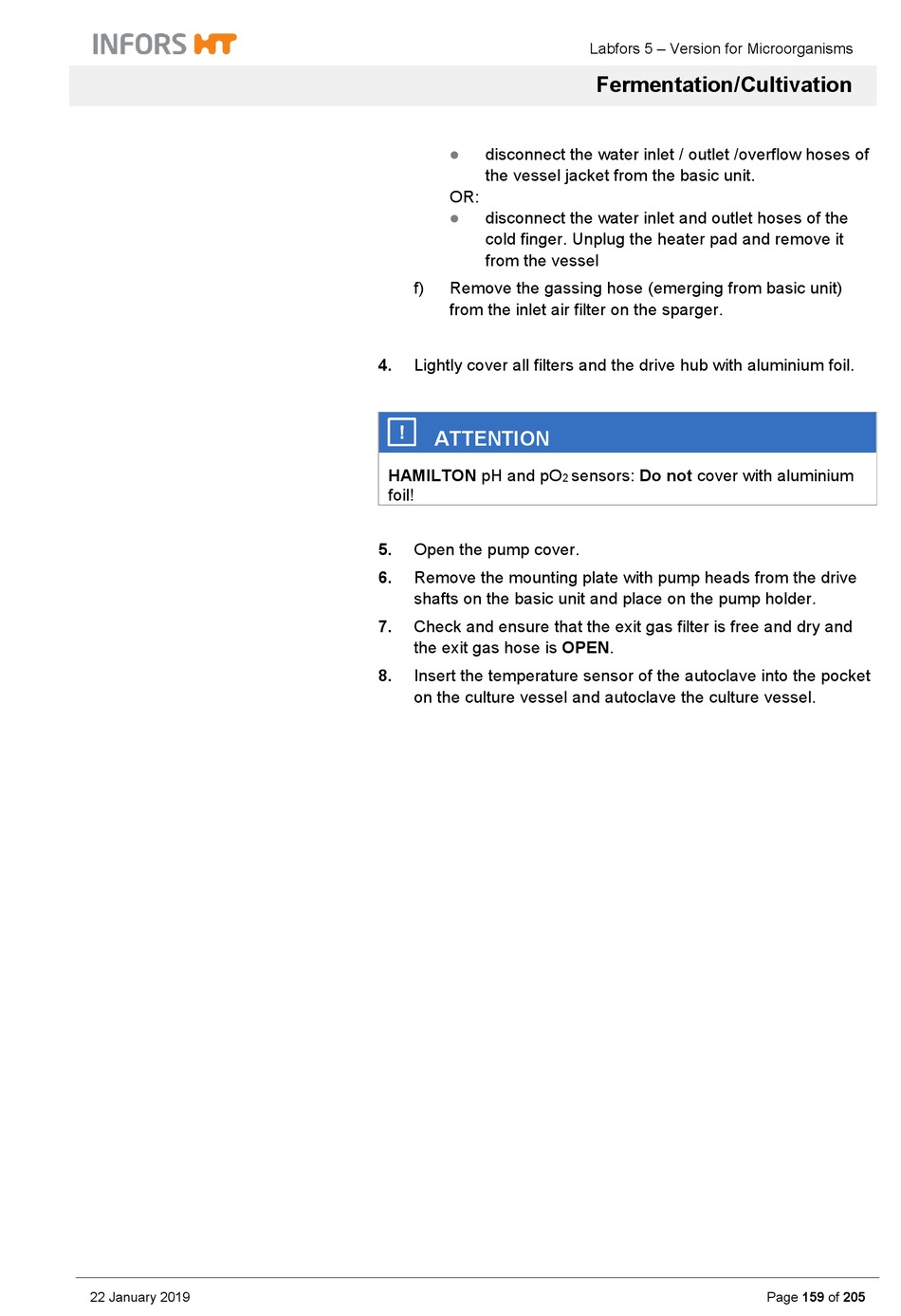

Infors HT Labfors 5 Operating Manual page 161

22 January 2019
disconnect the water inlet / outlet /overflow hoses of

the vessel jacket from the basic unit.
OR:
disconnect the water inlet and outlet hoses of the

cold finger. Unplug the heater pad and remove it
from the vessel
f) Remove the gassing hose (emerging from basic unit)
from the inlet air filter on the sparger.
4. Lightly cover all filters and the drive hub with aluminium foil.
ATTENTION
HAMILTON pH and pO
foil!
5. Open the pump cover.
6.
Remove the mounting plate with pump heads from the drive
shafts on the basic unit and place on the pump holder.
7. Check and ensure that the exit gas filter is free and dry and
the exit gas hose is OPEN.
8. Insert the temperature sensor of the autoclave into the pocket
on the culture vessel and autoclave the culture vessel.
Labfors 5 – Version for Microorganisms
Fermentation/Cultivation
sensors: Do not cover with aluminium
