5.15 Electrode Holder

1
5
4

5.16 Threaded Adapter

5.17 Adapter

22 January 2019
Electrode holders are used for mounting sensors (pH, pO
12 mm/Pg 13.5 ports. They can also be used to adjust the mount-
ing depth of the sensor.

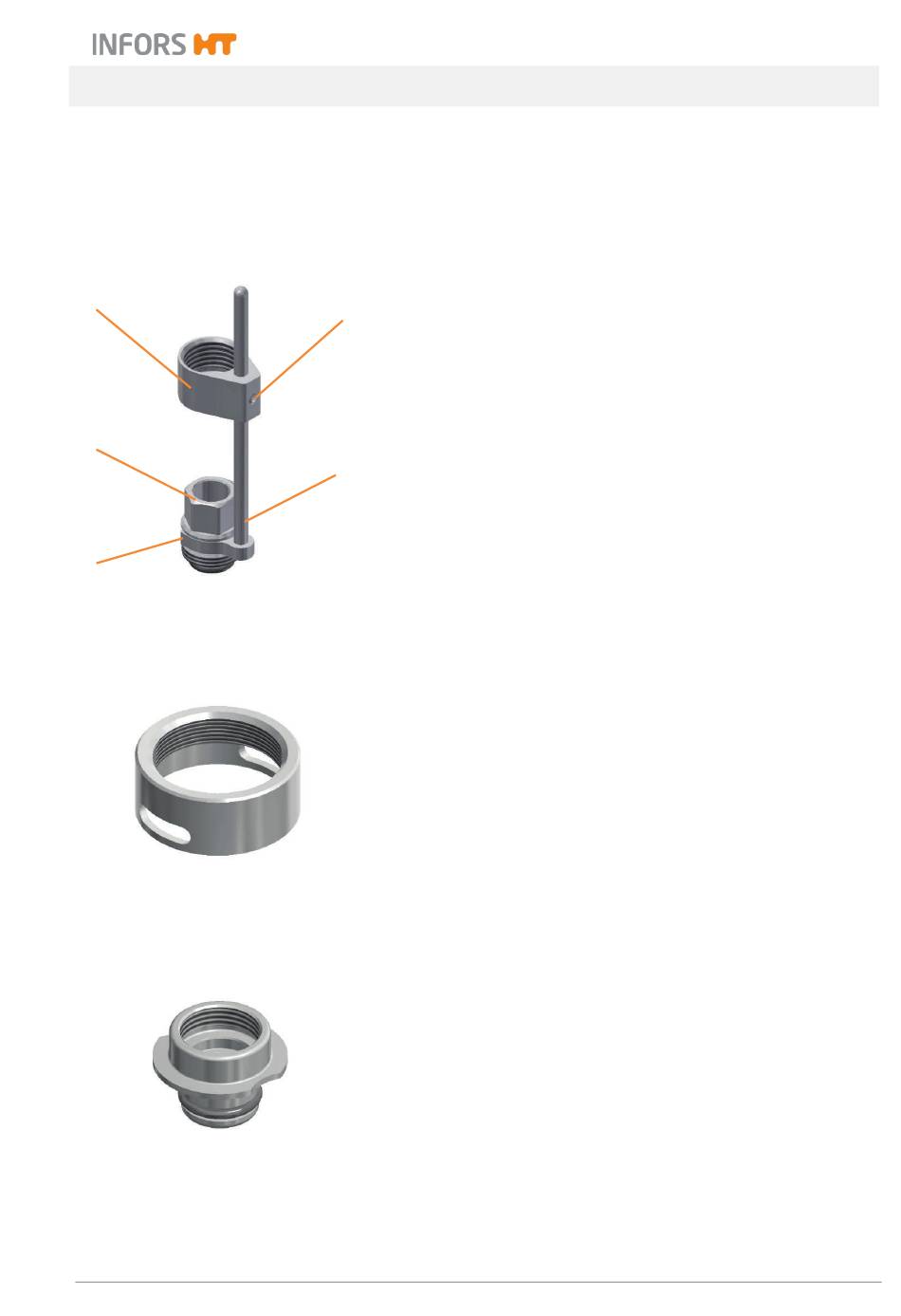

The electrode holder comprises a sheath with a grub screw, a
guide bar with a fork, and a hollow screw. The wrench for the grub
2
screw is also included in the scope of supply.
1 Sheath
2 Grub screw
3 Guide bar
4 Fork
3
5 Hollow screw
The threaded adapter has an inside thread and is used for mount-
ing blanking plugs or clamping adapters with Ø 19 mm in (thread-
less) 19 mm ports in the vessel top plate.
Two slotted screws are used for mounting.
The adapter is used for component parts with Ø 12 mm into a
(thread less) 19 mm port in the vessel top plate.
Fitted with a fixed O-ring.
Labfors 5 – Version for Microorganisms
Accessories
, etc.) in
