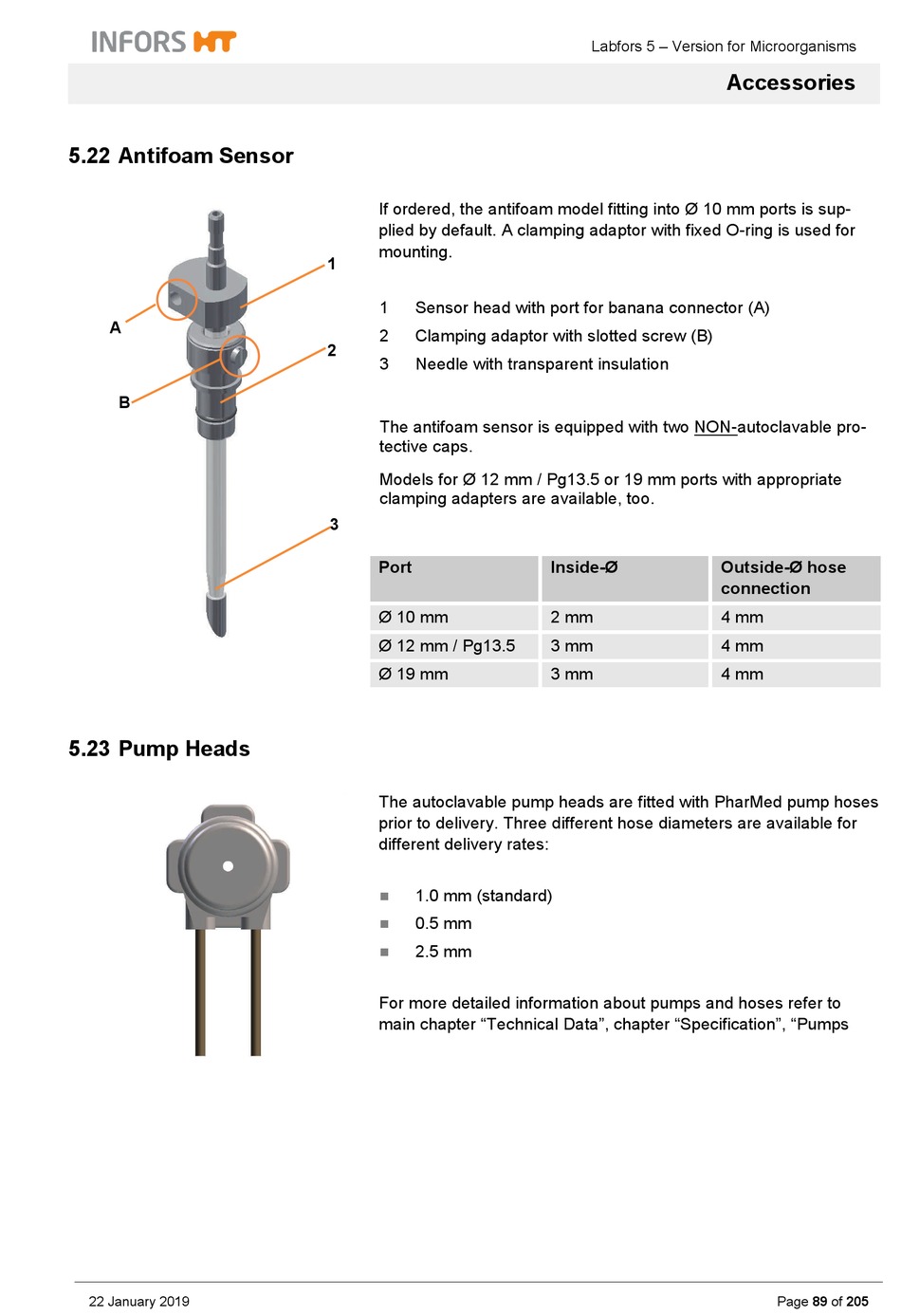

5.22 Antifoam Sensor

A
B

5.23 Pump Heads

22 January 2019
If ordered, the antifoam model fitting into Ø 10 mm ports is sup-
plied by default. A clamping adaptor with fixed O-ring is used for
mounting.
1
1 Sensor head with port for banana connector (A)
2 Clamping adaptor with slotted screw (B)
2
3 Needle with transparent insulation
The antifoam sensor is equipped with two NON-autoclavable pro-
tective caps.
Models for Ø 12 mm / Pg13.5 or 19 mm ports with appropriate
clamping adapters are available, too.
3
Port
Ø 10 mm
Ø 12 mm / Pg13.5
Ø 19 mm
The autoclavable pump heads are fitted with PharMed pump hoses
prior to delivery. Three different hose diameters are available for
different delivery rates:
1.0 mm (standard)

0.5 mm

2.5 mm

For more detailed information about pumps and hoses refer to
main chapter "Technical Data", chapter "Specification", "Pumps
Labfors 5 – Version for Microorganisms
Inside-Ø Outside-Ø hose
connection
2 mm 4 mm
3 mm 4 mm
3 mm 4 mm
Accessories
