3.6 Gassing System
22 January 2019

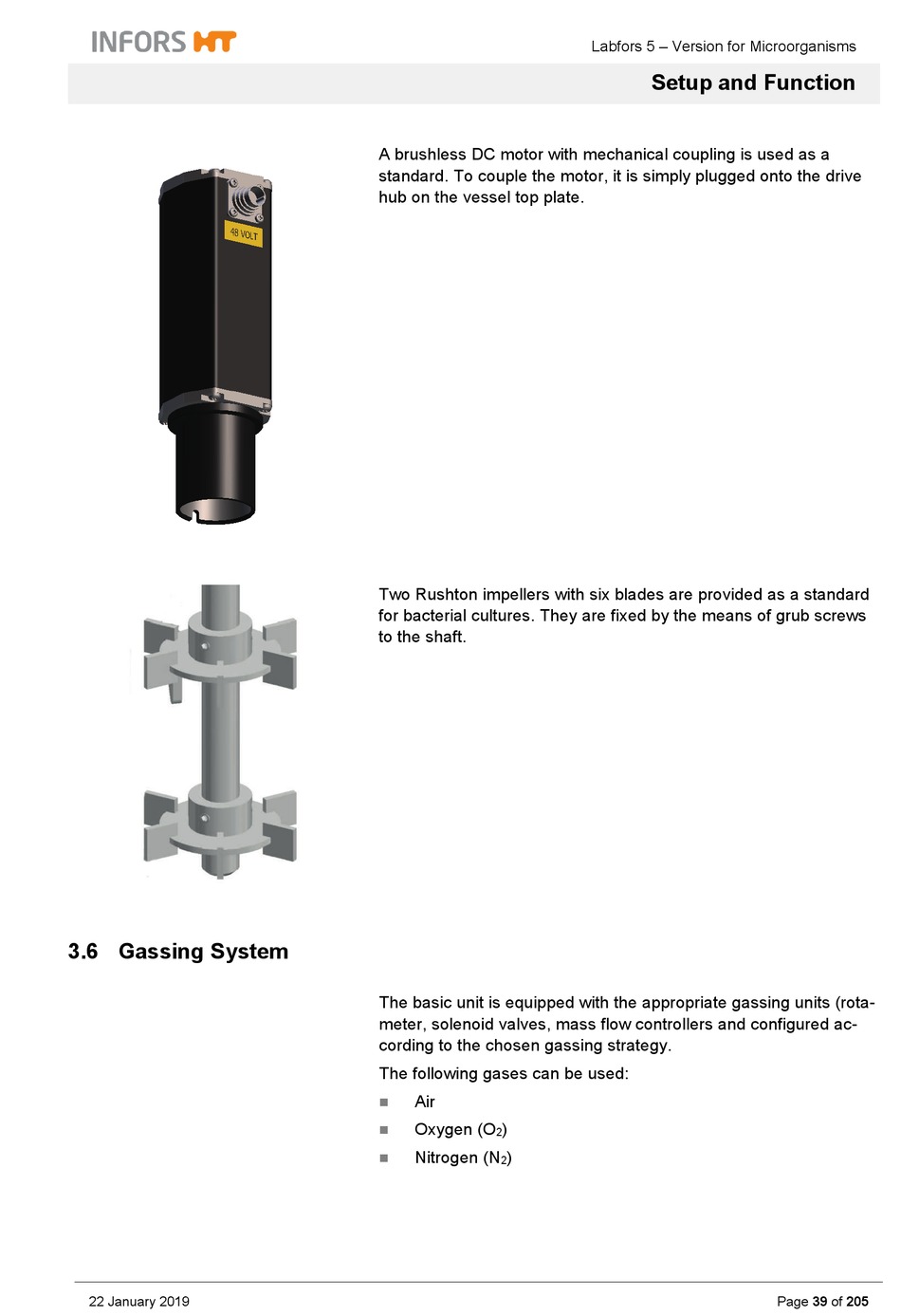

A brushless DC motor with mechanical coupling is used as a
standard. To couple the motor, it is simply plugged onto the drive
hub on the vessel top plate.
Two Rushton impellers with six blades are provided as a standard
for bacterial cultures. They are fixed by the means of grub screws
to the shaft.
The basic unit is equipped with the appropriate gassing units (rota-
meter, solenoid valves, mass flow controllers and configured ac-
cording to the chosen gassing strategy.
The following gases can be used:
Air
Oxygen (O
)
2
Nitrogen (N
)
2
Labfors 5 – Version for Microorganisms
Setup and Function
Page 39 of 205
