Array parameters function as follows:
Setup 1
5 x
1
OK
Setup 1
INDEX
2
OK
Setup 1
INDEX
Setup 1
INDEX
OK 4
Setup 1
INDEX

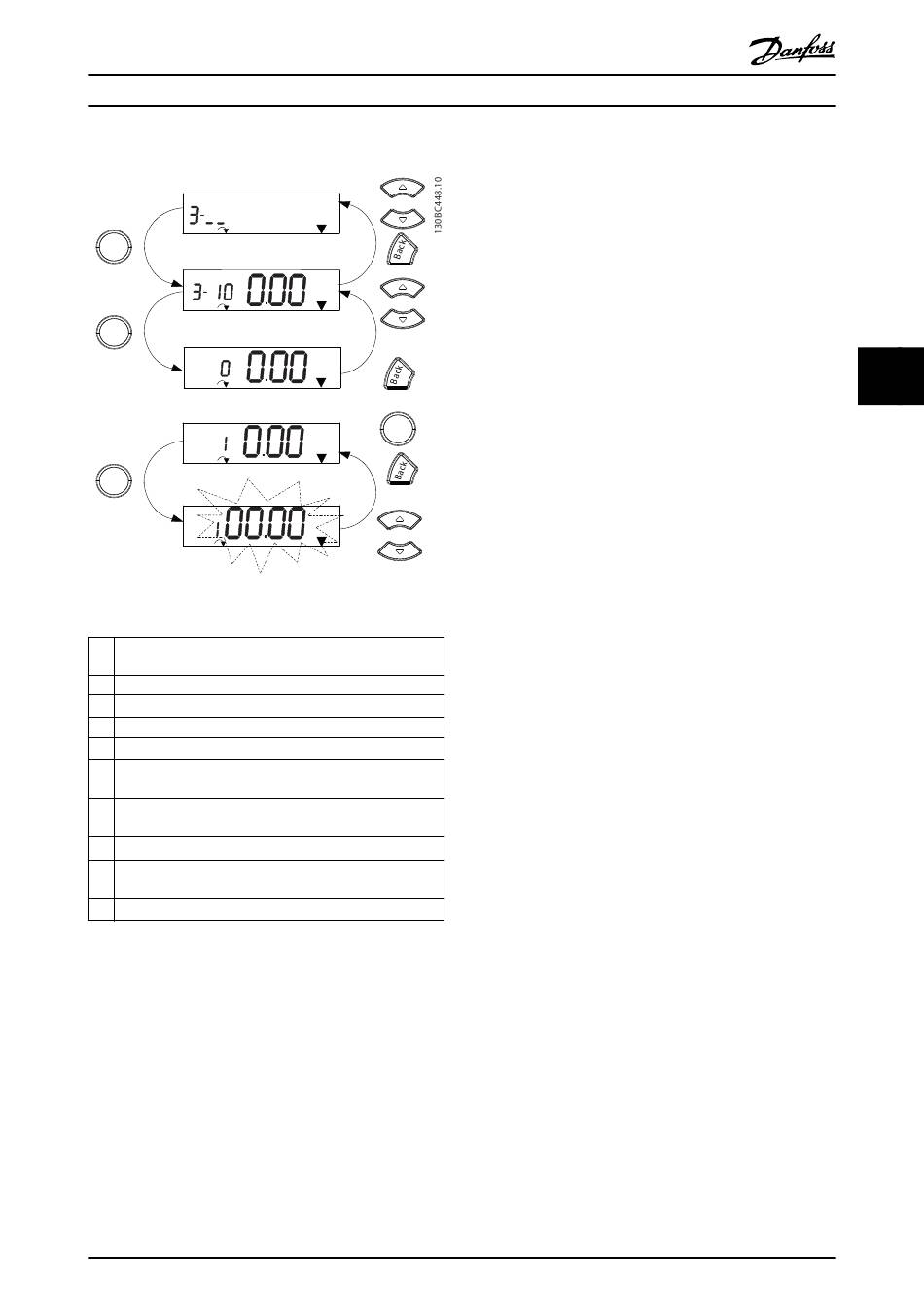

Illustration 5.8 Main Menu Interactions - Array Parameters
1 [OK]: Shows parameter numbers and the value in the first
index.
2 [OK]: Index can be selected.
▲ ▼
3
[ ][ ]: Select index.
4 [OK]: Value can be edited.
▲ ▼
5
[ ][ ]: Change parameter value (flashing).
6 [Back]: Cancels changes.
[OK]: Accepts changes.
7 [Back]: Cancels editing index, a new parameter can be
selected.
▲ ▼
8
[ ][ ]: Select parameter within the group.
9 [Back]: Removes parameter index value and shows the
parameter group.
▲ ▼
10
[ ][ ]: Select group.
Table 5.6 Changing Values in Array Parameters
MG06A602
Quick Guide

5.3 Quick Menu

The Quick Menu gives easy access to the most frequently
10
used parameters.
9
8
%
% 7
OK
%
6
%
5
Danfoss A/S © 04/2015 All rights reserved.
1. To enter Quick Menu, press [Menu] until the
indicator in display is placed above Quick Menu.
▲ ▼
2.
Press [ ] [ ] to select either QM1 or QM2, then
press [OK].
▲ ▼
3.
Press [ ] [ ] to browse through the parameters in
Quick Menu.
4. Press [OK] to select a parameter.
▲ ▼
5.
Press [ ] [ ] to change the value of a parameter
setting.
6. Press [OK] to accept the change.
7. To exit, press either [Back] twice (or 3 times if in
QM2 and QM3) to enter Status, or press [Menu]
once to enter Main Menu.
