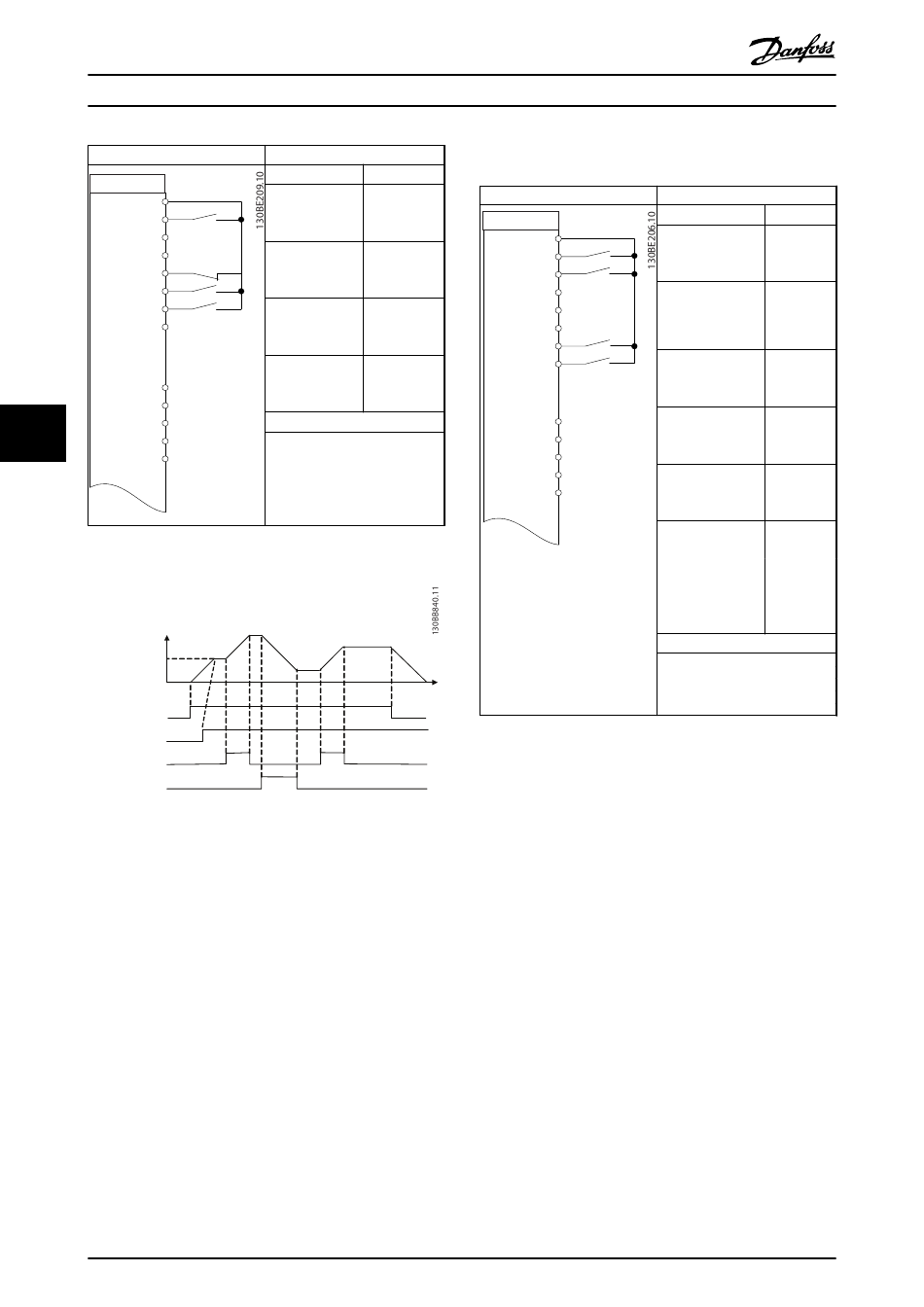

Danfoss VLT AutomationDrive FC 360 Quick Manual page 42

Application Examples
FC
+24 V 12
D IN 18
19
D IN
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
+10 V 50
A IN
53
6 6 A IN
54
COM
55
A OUT
42
Table 6.5 Speed Up/Down
Speed
Reference
Start ( 18)
Freeze ref ( 27)
Speed up ( 29 )
Speed down ( 32 )
Illustration 6.1 Speed Up/Down
40
®
VLT AutomationDrive FC 360
Parameters
Function Setting
Parameter 5-10 T
erminal 18 [8] Start*
Digital Input
Parameter 5-12 T [19] Freeze
erminal 27 Reference
Digital Input
Parameter 5-13 T [21] Speed
erminal 29 Up
Digital Input
Parameter 5-14 T [22] Speed
erminal 32 Down
Digital Input
*=Default value
Notes/comments:
Danfoss A/S © 04/2015 All rights reserved.
6.1.3 Start/Stop
FC
+24 V 12
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
Table 6.6 Start/Stop with Reversing and 4 Preset Speeds
Parameters
Function Setting
Parameter 5-10 Ter
minal 18 Digital [8] Start
Input
Parameter 5-11 Ter
[10]
minal 19 Digital
Reversing*
Input
Parameter 5-12 Ter [0] No
minal 27 Digital operation
Input
Parameter 5-14 Ter [16] Preset
minal 32 Digital ref bit 0
Input
Parameter 5-15 Ter [17] Preset
minal 33 Digital ref bit 1
Input
Parameter 3-10 Pre
set Reference
Preset ref. 0 25%
Preset ref. 1 50%
Preset ref. 2 75%
Preset ref. 3 100%
* = Default value
Notes/comments:
