Quick Start

3 Quick Start
WARNING
Improper use could result in death, serious injury,
equipment, or property damage. Before installing or
using the equipment, carefully read chapter 2 Safety and
chapter 4 Installation.

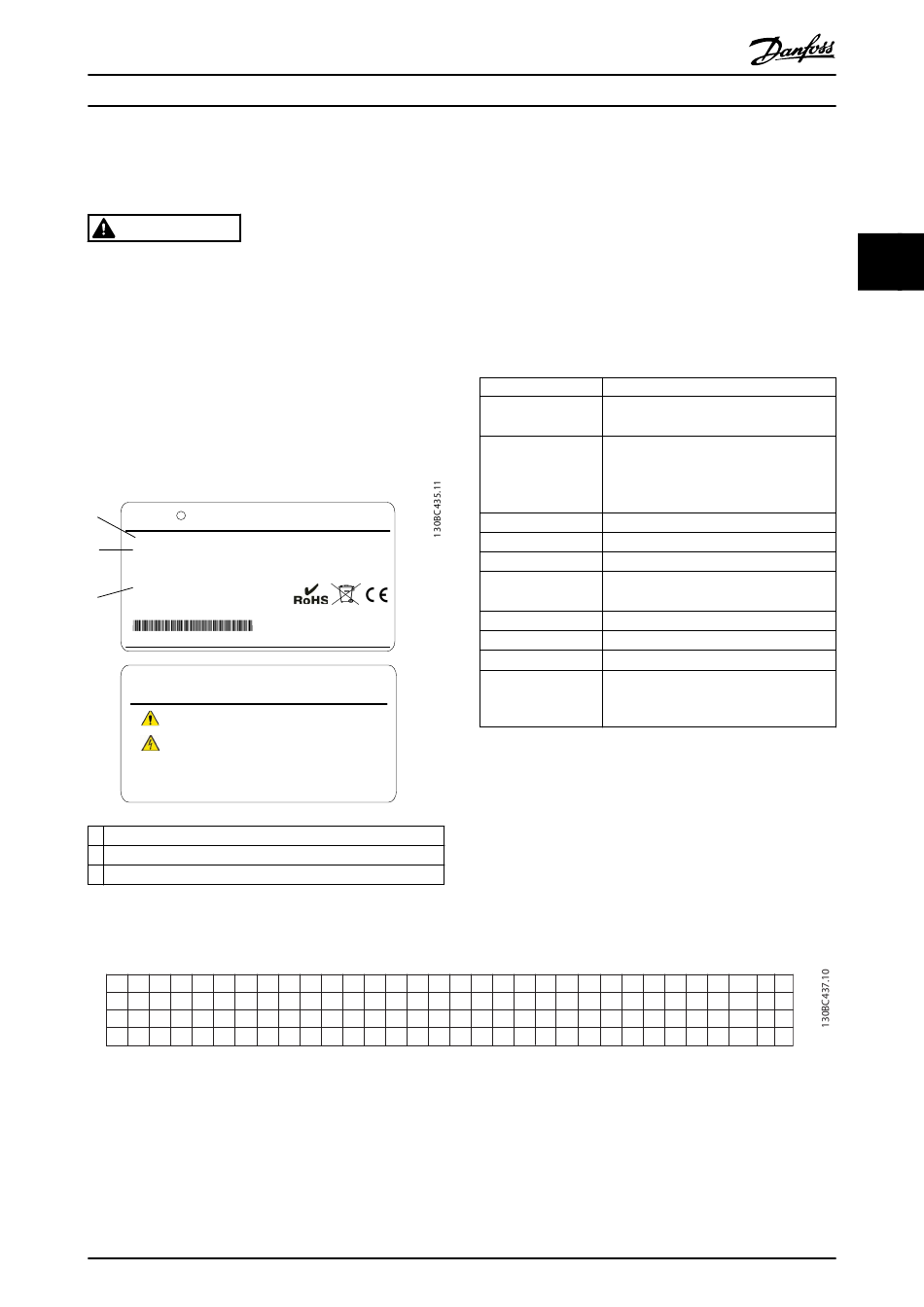

3.1 Identification and Variants

Confirm that the equipment matches the requirements and
ordering information by checking power size, voltage data,
and overload data on the nameplate of the frequency
converter.
VLT
AutomationDrive
1
R
www.danfoss.com
T/C: FC-360HK37T4E20H2BXCDXXSXXXXAXBX
2
P/N: 134F2970 S/N: 691950A240
0.37 kW 0.5HP High Overload
IN: 3x380-480V 50/60Hz 1.24/0.99A
o
OUT: 3x0-Vin 0-500Hz 1.2/1.1A(Tamb. 45 C)
3
CHASSIS/IP20
CAUTION:
SEE MANUAL
WARNING:
STORED CHARGE DO NOT TOUCH UNTIL 4 MIN. AFTER
DISCONNECTION
RISK OF ELECTRIC SHOCK-DUAL SUPPLY DISCONNECT MAINS
AND LAODSHARING BEFORE SERVICE
1 Type code
2 Ordering number
3 Specifications
Illustration 3.1 Nameplate 1 and 2
1 2 3 4 5 6 7
F C - 3 6 0 H
Q
Illustration 3.2 Type Code String
MG06A602
Quick Guide
MADE BY DANFOSS
IN CHINA
8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
T 4 E 2 0 H
Danfoss A/S © 04/2015 All rights reserved.
1–6: Product Name
H: Heavy duty
7: Overload
Q: Normal duty
0.37–75 kW. For example:
K37: 0.37 kW
8–10: Power size
1K1: 1.1 kW
11K: 11 kW
11–12: Voltage class T4: 380–480 V 3-phases
13–15: IP class E20: IP20
16–17: RFI H2: C3 Class
X: No
18: Brake chopper
B: Built-in
19: LCP X: No
20: PCB coating C: 3C3
21: Mains terminals D: Load sharing
AX: No
29–30: Embedded
A0: PROFIBUS
fieldbus
AL: PROFINET
Table 3.1 Type Code: Selection of Different Features and Options
For options and accessories, refer to the section Options and
Accessories in the FC 360 Design Guide.
1) Only 11–75 kW for normal duty variants. PROFIBUS and PROFINET
unavailable for normal duty.
2) For all power sizes, see chapter 8.1.1 Mains Supply 3x380–480 V
AC.
3) 0.37–22 kW with built-in brake chopper. 30–75 kW with external
brake chopper only.
23 24 25 26 27 28
2 X X C D X X S X
B
1)
2)
3)
29 30 31 32
X X X A X B X
A 0
A L
3 3
