D. Operation keys and indicator lights (LEDs)
13 [Hand On]: Starts the motor and enables control of the
frequency converter via the LCP.
NOTICE
Parameter 5-12 Terminal 27 Digital Input has coast
inverse as the default setting. This means that
[Hand On] does not start the motor if there is no
24 V to terminal 27.
14 [Off/Reset]: Stops the motor (off). If in alarm mode, the
5 5
alarm is reset.
15 [Auto On]: The frequency converter is controlled either via
control terminals or serial communication.
Table 5.3 Legend to Illustration 5.1, Section D
WARNING
HIGH VOLTAGE
Touching the frequency converter after pressing the [Off/
Reset] key is still dangerous, because the key does not
disconnect the frequency converter from the mains.
•
Disconnect the frequency converter from the
mains, and wait for the frequency converter to
fully discharge. See the discharge time in
Table 2.1.
24
®
VLT AutomationDrive FC 360
5.1.2 Local Control Panel LCP 102
The graphical local control panel (GLCP or LCP 102) has a
larger display area, which displays more information than
LCP 21.

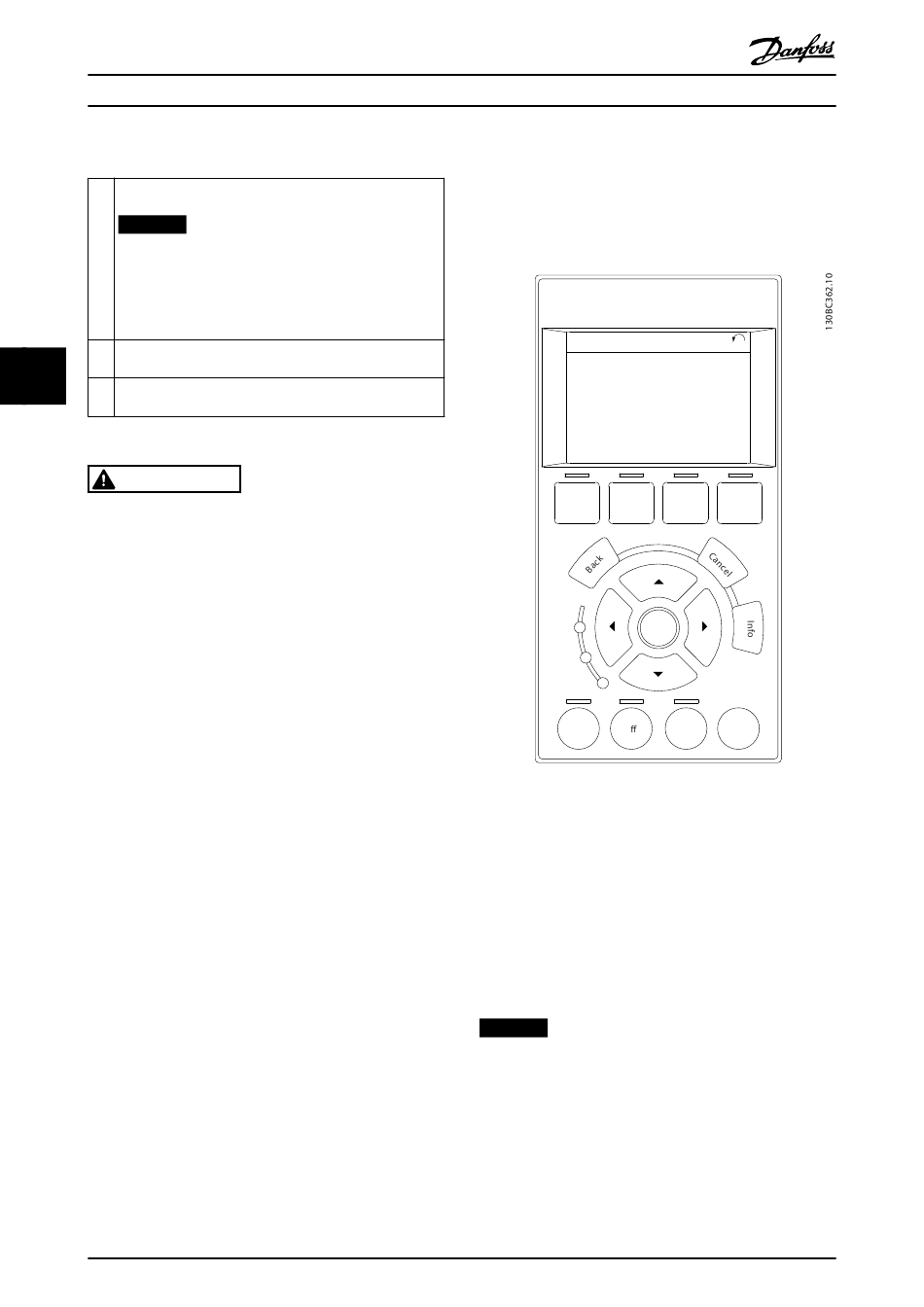

Illustration 5.3 Local Control Panel LCP 102
a.
b.
c.
d.
NOTICE
The [Info] key does not function when the LCP 102 is
connected to the frequency converter.
Functions
•
•
Danfoss A/S © 04/2015 All rights reserved.
Status
1234rpm
1.0 A
43,5Hz
a
Run OK
Quick
Main
b
Status
Menu
Menu
c On OK
Warn.
Alarm
Auto
Hand
d O
on
on
Display area.
Menu keys for changing the display to show
status, programming, or error message history.
Navigation keys for programming functions,
moving the display cursor, and speed control in
local operation. Also included are the status
indicator lights.
Operational mode keys and reset.
English and Chinese display
Status messages
1(1)
43,5Hz
Alarm
Log
Reset
