Installation
1
9
10
L1
L2
L3
PE
1 PLC
2 Frequency converter
3 Output contactor (not recommended)
4 Grounding rail (PE)
5 Cable shielding (stripped)

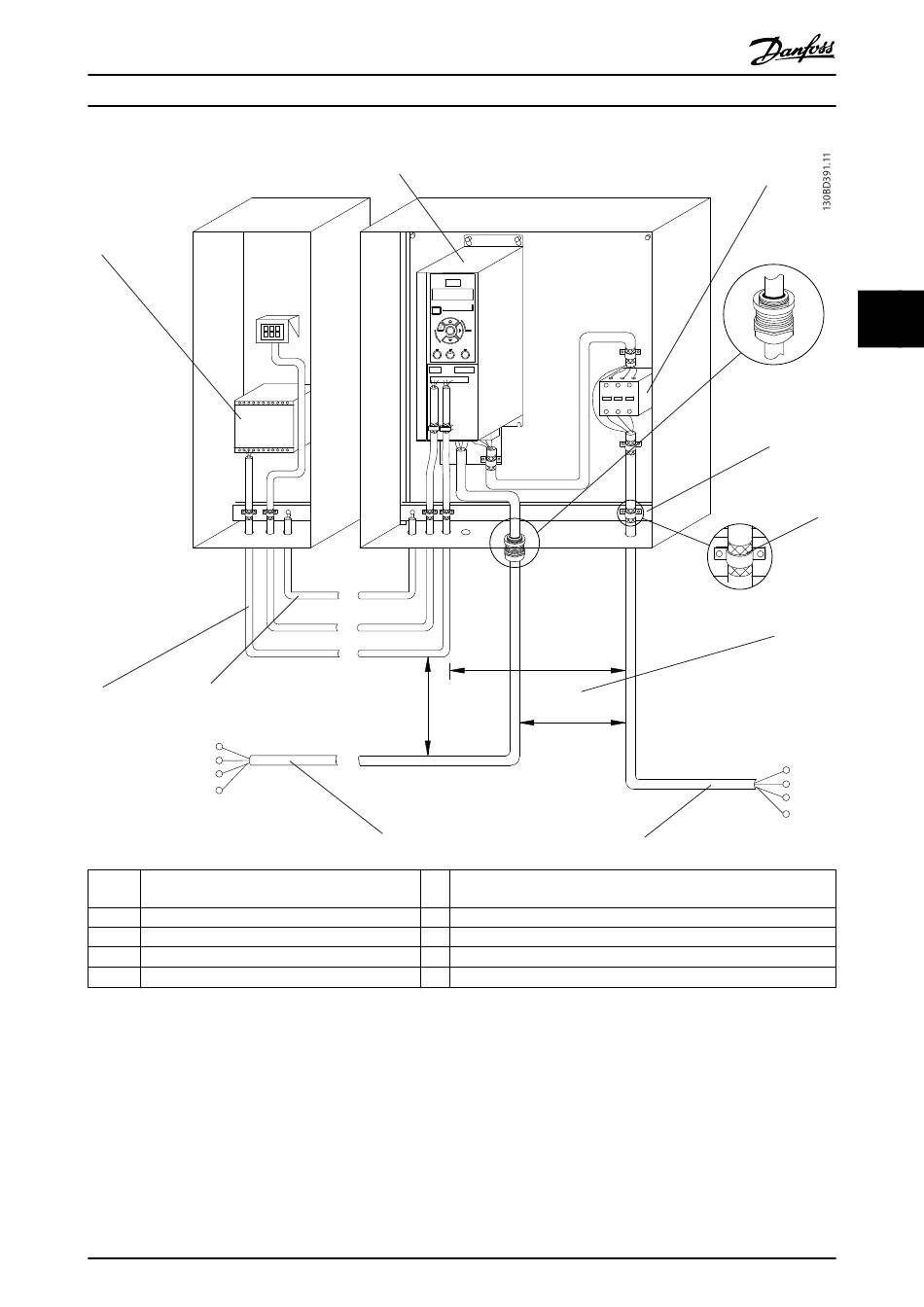

Illustration 4.2 Typical Electrical Connection
MG06A602
Quick Guide
2
Status Quick Main
Menu Menu
Menu
OK
Hand Auto
On Reset On
8
6 Minimum 200 mm (7.9 inch) between control cables, motor, and
mains
7 Motor, 3-phase and PE
8 Mains, 3-phase and reinforced PE
9 Control wiring
10
Equalising minimum 16 mm
