5.5 PROFIBUS

FC 360 frequency converters support PROFIBUS. If
PROFIBUS is needed,
•
Order a new frequency converter on which the
control cassette with PROFIBUS is pre-installed;
•
Order a control cassette with PROFIBUS to replace
the standard control cassette on an existing
frequency converter. In this case, upgrade the
firmware with MCT-10 Set-up Software.
In both cases, ensure that parameter 15-43 Software Version
is higher than 1.20.

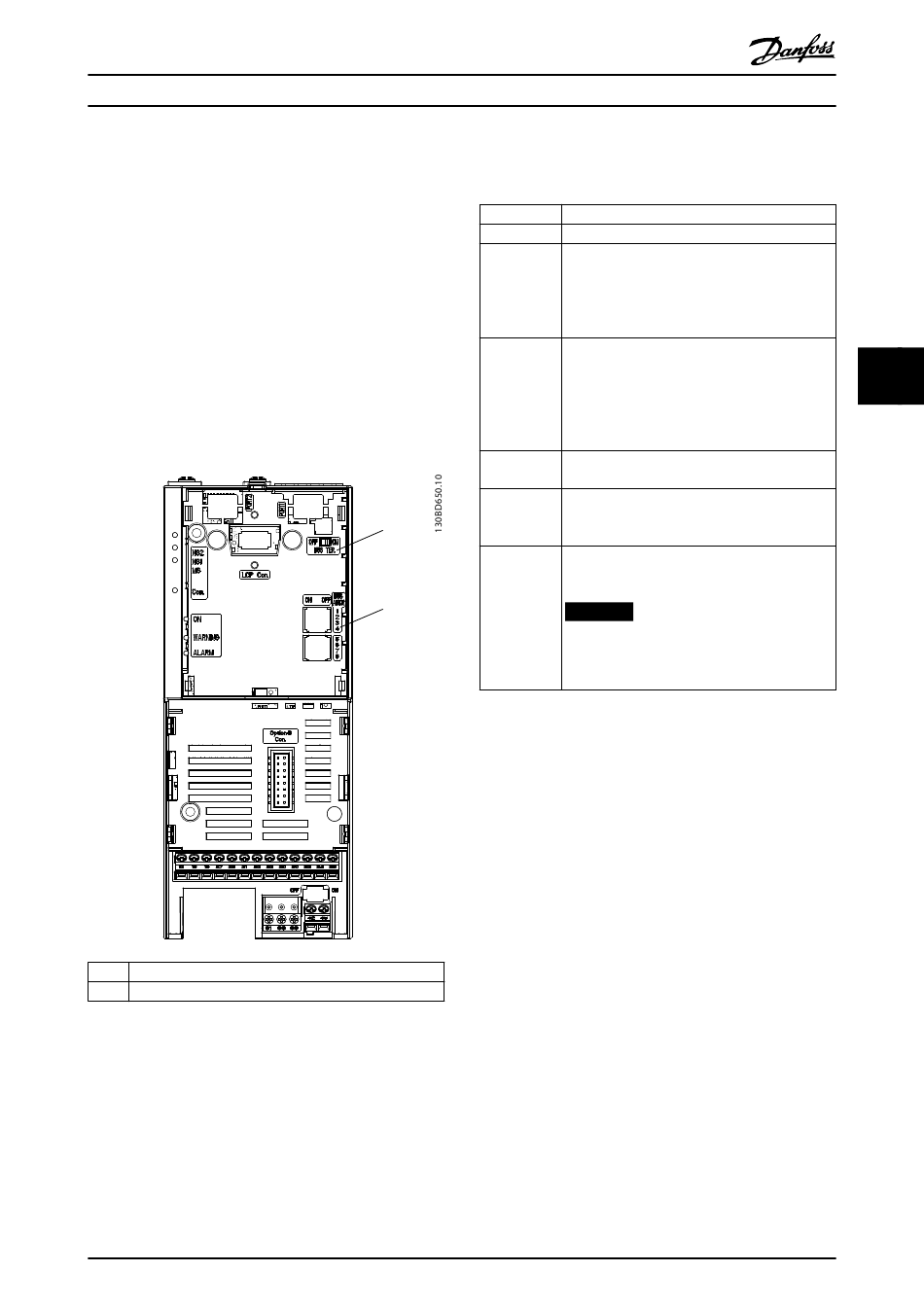

Illustration 5.10 shows the front panel of a control cassette
with PROFIBUS.
1 Termination resistor switch
2 PROFIBUS address selector
Illustration 5.10 Front Panel of a Control Cassette with
PROFIBUS
MG06A602
Quick Guide
The functions of the LEDs and switches on the front panel
are introduced in Table 5.8.
LED/Switch
NS2
NS1
MS
COM
Termination
resistor
1
switch
PROFIBUS
address
selector
2
Table 5.8 Functions of LEDs and Switches
Danfoss A/S © 04/2015 All rights reserved.
Description
Not used for PROFIBUS.
Indicates the network status when communi-
cating with the PROFIBUS master. When this
indicator light shows constant green, data
exchange between the master and the frequency
converter is active.
Indicates the module status, which is acyclic DP
V1 communication from either a PROFIBUS
master class 1 (PLC) or a master class 2 (MCT-10
Set-up Software, FDT tool). When this indicator
light shows constant green, DP V1 communi-
cation from master classes 1 and 2 is active.
Communication status for RS485. Not used for
PROFIBUS.
When the switch is turned on, the termination
resistor is in effect.
Use the switches in the selector to set the
PROFIBUS address. The address change comes
into effect at the next power-up.
NOTICE
Switch off the power supply before
changing the switches.
