12.1.1.2 Task declaration process

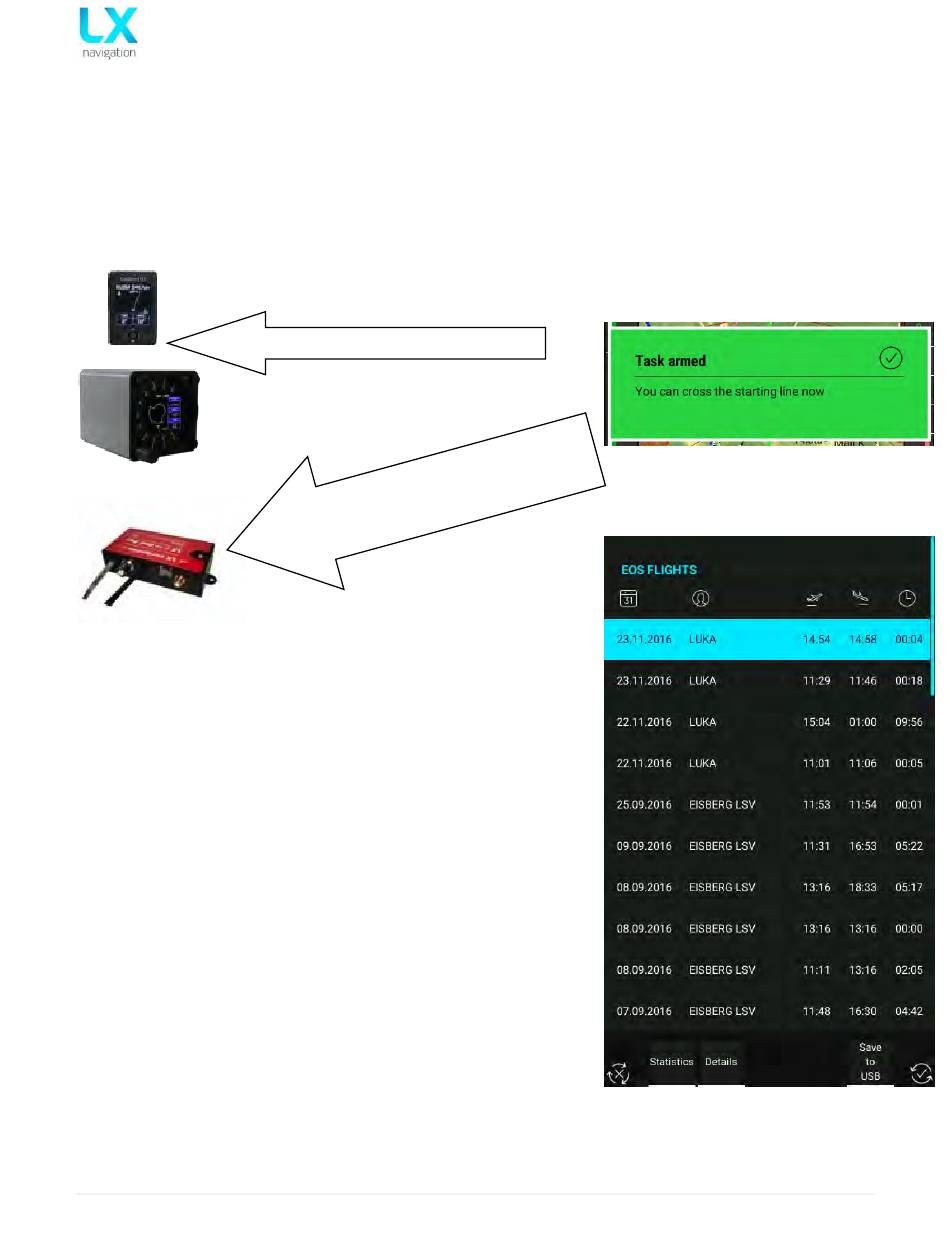

The task declaration process is fully automatic and doesn't need any pilot interaction. The planned task
and pilot data is written into all connected flight recorders immediately after selection. The declaration
data will not change during flight, even if task data changes due to the select or edit process (IGC rule).
The action is accompanied by a message on the display.
Declaration to LX Eos/Era, Colibri
II
Declaration to flarm

12.2 During flight

The LX Zeus HW and SW concept is combined in such a
way that pilot input during flight is cut down to the
minimum, enabling the pilot to give full attention to
piloting. It is important to point out that there are many
shortcuts which enable direct and fast access to most
important functions. If confused, just wait for around 15
seconds and the Auto close feature should close the
current dialog. A clear indication that the unit is in flying
mode can be determined by checking that the Logbook
page is replaced by the Statistics page when the STAT
button is pressed.
