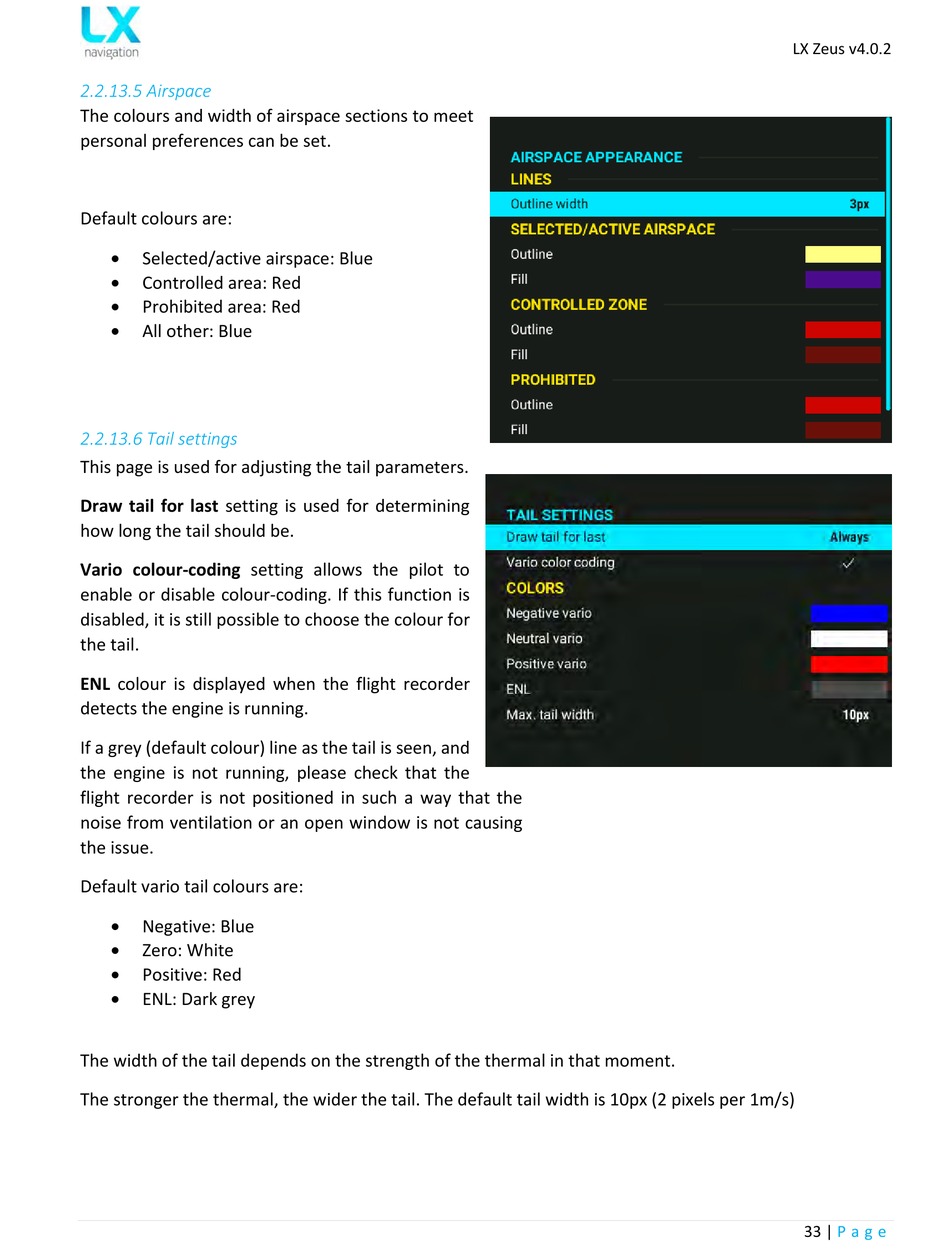

2.2.13.5 Airspace
The colours and width of airspace sections to meet
personal preferences can be set.
Default colours are:

Selected/active airspace: Blue

Controlled area: Red

Prohibited area: Red

All other: Blue
2.2.13.6 Tail settings
This page is used for adjusting the tail parameters.
Draw tail for last setting is used for determining
how long the tail should be.
Vario colour-coding setting allows the pilot to
enable or disable colour-coding. If this function is
disabled, it is still possible to choose the colour for
the tail.
ENL colour is displayed when the flight recorder
detects the engine is running.
If a grey (default colour) line as the tail is seen, and
the engine is not running, please check that the
flight recorder is not positioned in such a way that the
noise from ventilation or an open window is not causing
the issue.
Default vario tail colours are:

Negative: Blue

Zero: White

Positive: Red

ENL: Dark grey
The width of the tail depends on the strength of the thermal in that moment.
The stronger the thermal, the wider the tail. The default tail width is 10px (2 pixels per 1m/s)
