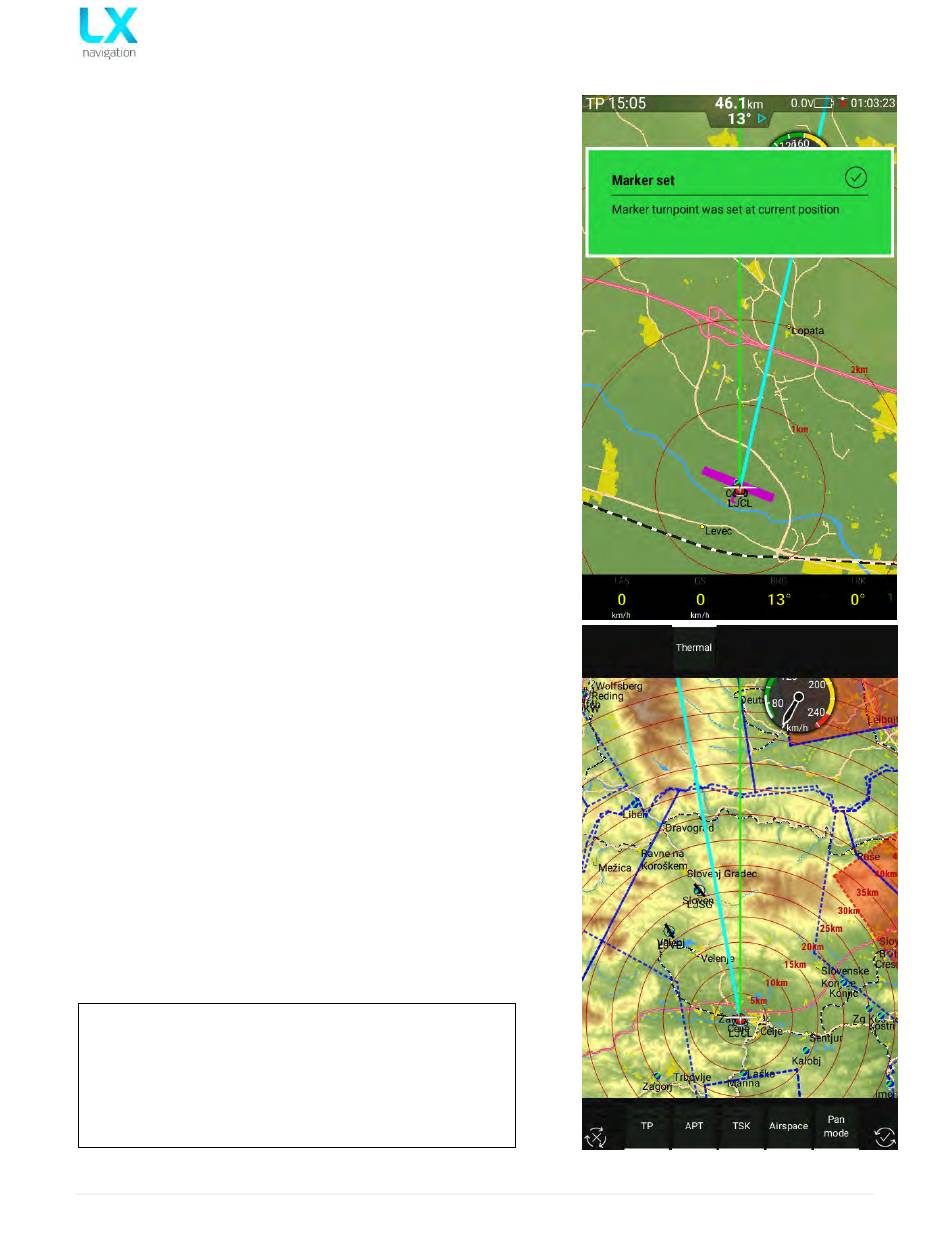

3.4.1.3 Add Marker
The philosophy of having a marker is to mark a position,
to which the pilot might need navigation assistance
(landable field, etc.).
For example, if flying towards a non-landable area, and
the last landable field is seen below, then, over this
landable field, a marker can be created. It would then be
easy to navigate back to that marker, which can be
selected at NEAR/TP, or at select TP.
There can only be one marker at a time. If another marker
is created, the first one will be replaced by it. The marker
can be changed to a regular more permanent TP via EDIT
TP. Such a turn-point can be deleted via DELETE TP.
3.4.1.4 Delete TP
Only user created turn-points and markers can be
deleted. To delete a TP the Zoom rotary knob should be
pressed, then select screen button DELETE TP and a new
window will open. Select the TP by rotating the Zoom
rotary knob and confirm it with a short press.
3.4.1.5 Send TP
If Send TP is selected, then the current selected TP will
be sent to the second seat (all info about the TP will be
sent).
3.4.2

Selecting Turn-points

The selection process is similar to APT. Use SELECT button
to start the process and press on-screen button TP.
Country, Name and sort by distance, track, arrival altitude
filters will expedite selection. Turn-points are displayed by
symbols. If on a TP navigation main page the shortcut
(press Volume rotary knob) can be used.
Important!
Turn-points without
selectable only when using Country "All" option. This
is also valid for user turn-points. Check and correct all
files manually before uploading them to LX Zeus.
country designators are
LX Zeus v4.0.2
63 | P a g e
