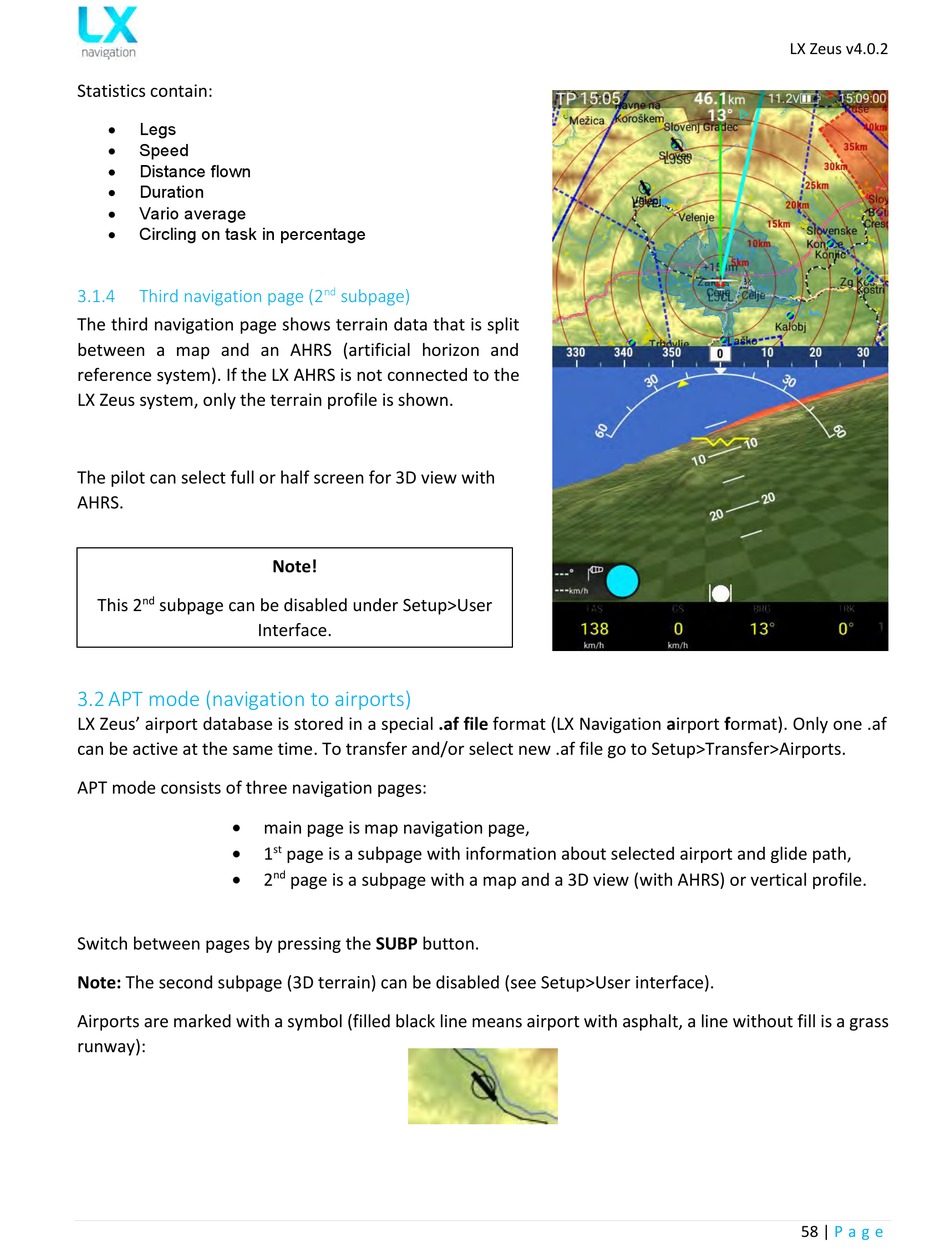

Statistics contain:
Legs

 Speed
Distance flown

Duration

 Vario average
Circling on task in percentage

3.1.4

Third navigation page (2

The third navigation page shows terrain data that is split
between a map and an AHRS (artificial horizon and
reference system). If the LX AHRS is not connected to the
LX Zeus system, only the terrain profile is shown.
The pilot can select full or half screen for 3D view with
AHRS.
nd
This 2 subpage can be disabled under Setup>User
Interface.

3.2 APT mode (navigation to airports)

LX Zeus' airport database is stored in a special .af file format (LX Navigation airport format). Only one .af
can be active at the same time. To transfer and/or select new .af file go to Setup>Transfer>Airports.
APT mode consists of three navigation pages:



Switch between pages by pressing the SUBP button.
Note: The second subpage (3D terrain) can be disabled (see Setup>User interface).
Airports are marked with a symbol (filled black line means airport with asphalt, a line without fill is a grass
runway):
nd
subpage)
Note!
main page is map navigation page,
st
1 page is a subpage with information about selected airport and glide path,
nd
2 page is a subpage with a map and a 3D view (with AHRS) or vertical profile.
LX Zeus v4.0.2
58 | P a g e
