LX Zeus v4.0.2
8.4 LX Flarm RedBox / LX Flarm MiniBox update
LX Flarm RedBox and LX Flarm MiniBox can be updated via SD card or PC by using Flarm Tool software.
Read update procedure at: www.lxnavigation.com – section SUPPORT / MANUALS: LX Flarm update
instructions.

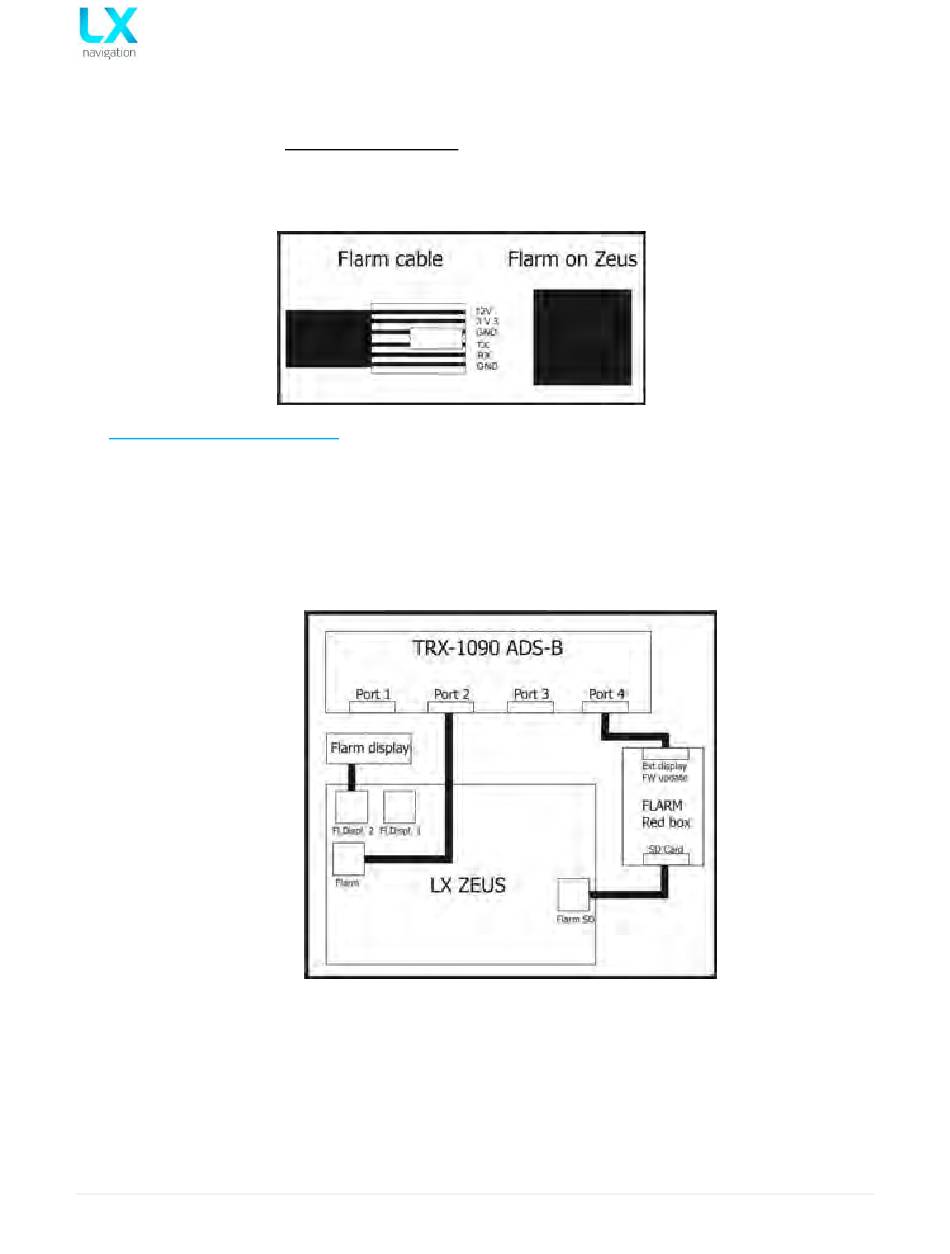

8.5 Flarm PINOUT
9 LX Zeus and Garrecht
Garrecht units can be connected to LX Zeus using supplied cables. A declaration to Flarm will be sent
directly from LX Zeus.
Updating Garrecht units is not possible via LX Zeus. The connection schematic is shown below.
9.1 LX Zeus and Garrecht TRX-1090 ADSB / TRX-2000
9.2 LX ZEUS and Garrecht TRX-1500
A special cable is needed for this connection. This cable can be ordered from LX Navigation under the
following code: LX-TRX1500.
82 |
P a g e
