1.3.2

Screen rotation

The screen can be rotated by using password 9109 under Setup > Service > Admin password. The buttons

must be rotated by hand. Follow the procedure below:

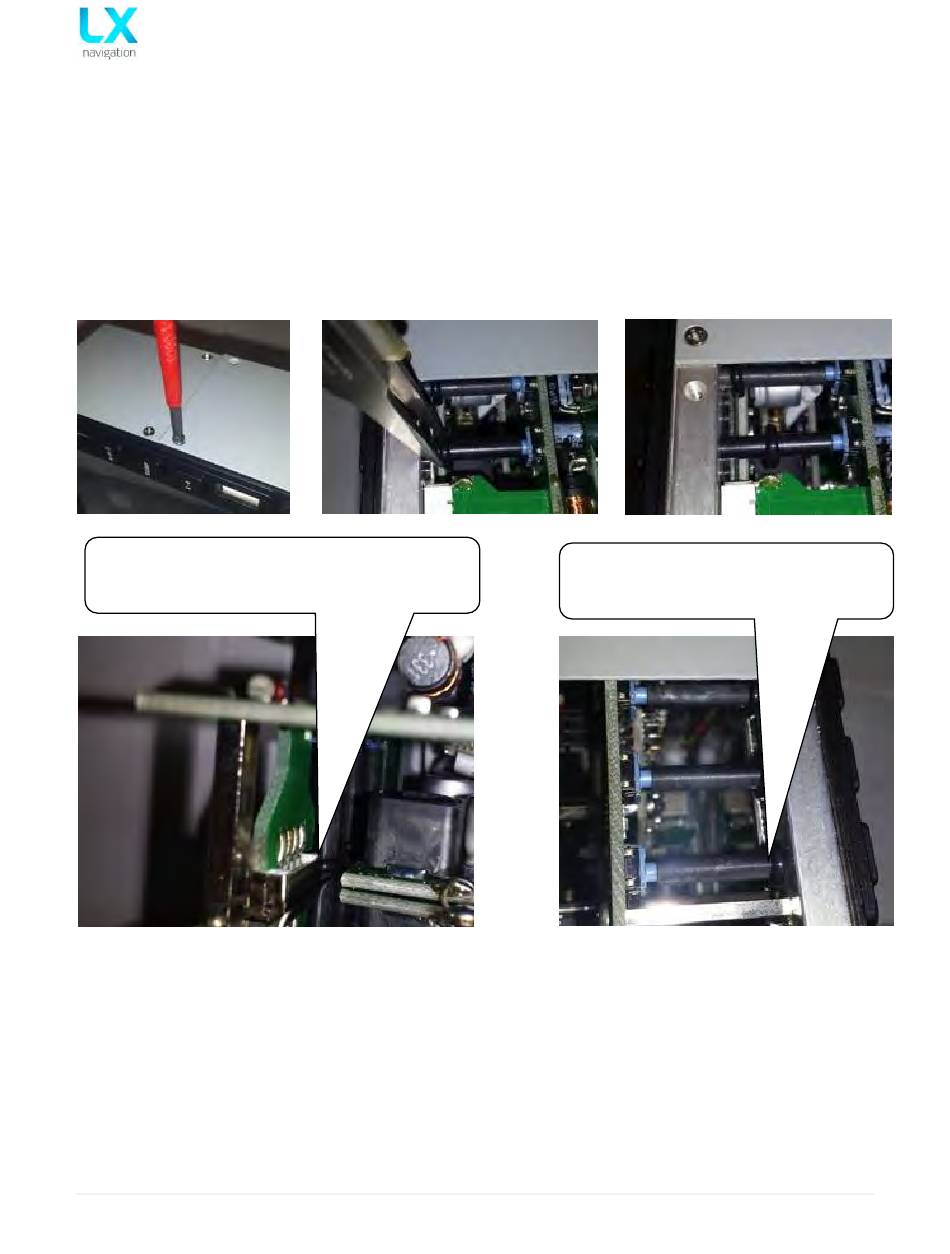

1. Open the unit (remove all screws and cover)

2. Move rounded rubber to the middle

3. Take out the button and rotate it to the proper position

4. Put button back on blue button (be careful that blue button is inside the black hose)

5. Put rounded rubber back to the first position (be careful with the Rotary knobs as the rubber

must not be pushed all the way in)

At this side the rounded rubber is touching the

back plate of display, do not push it too tight

1.3.3

This part of the installation is easy and doesn't require any specialists. LX Zeus and LX Eos are connected

via a CAN bus cable. Connect one end of the cable into Eos CAN bus port and the other into any of the CAN

bus ports on the LX Zeus. LX Zeus receives power from LX Eos/Era. All data from and to LX Zeus and LX

Eos/Era goes via a single CAN cable.

LX Eos receives power via two power lines, which should be connected to 12V glider power source and

ground. The red wire is +12V and blue wire is Ground.

LX Zeus v4.0.2

At this side the rounded rubber is

pressed fully to the plate.
