LX Zeus v4.0.2

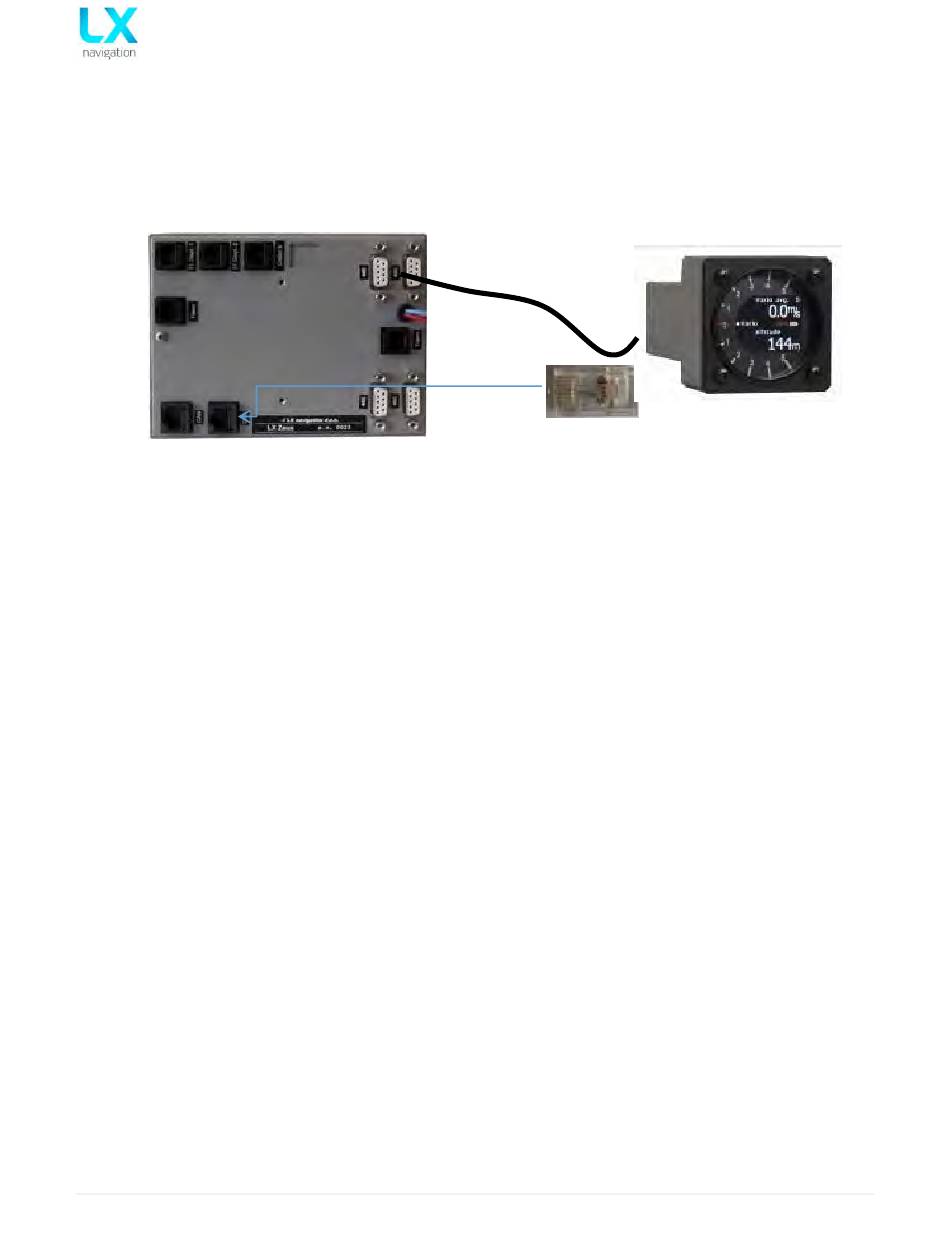

13.2.1.1Installation of USB-D 60 (Vario unit)
The USB D 60 unit comes with prefabricated cable set, which has two connectors. The 15-pole type should
be inserted into the vario unit and should be secured with the appropriate spring locks. The 9P connector
should be inserted into any free 485-marked plug on LX Zeus back. The unit receives power from LX Zeus.
Speaker output is terminated with one chinch female connector. A male chinch connector is part of the
speaker delivery.
A CAN terminator can be inserted either into the left or right CAN PORT. It is not important which is
used.
9P (485 system bus) can be connected also to any free 485-connector plug.
108 |
P a g e
