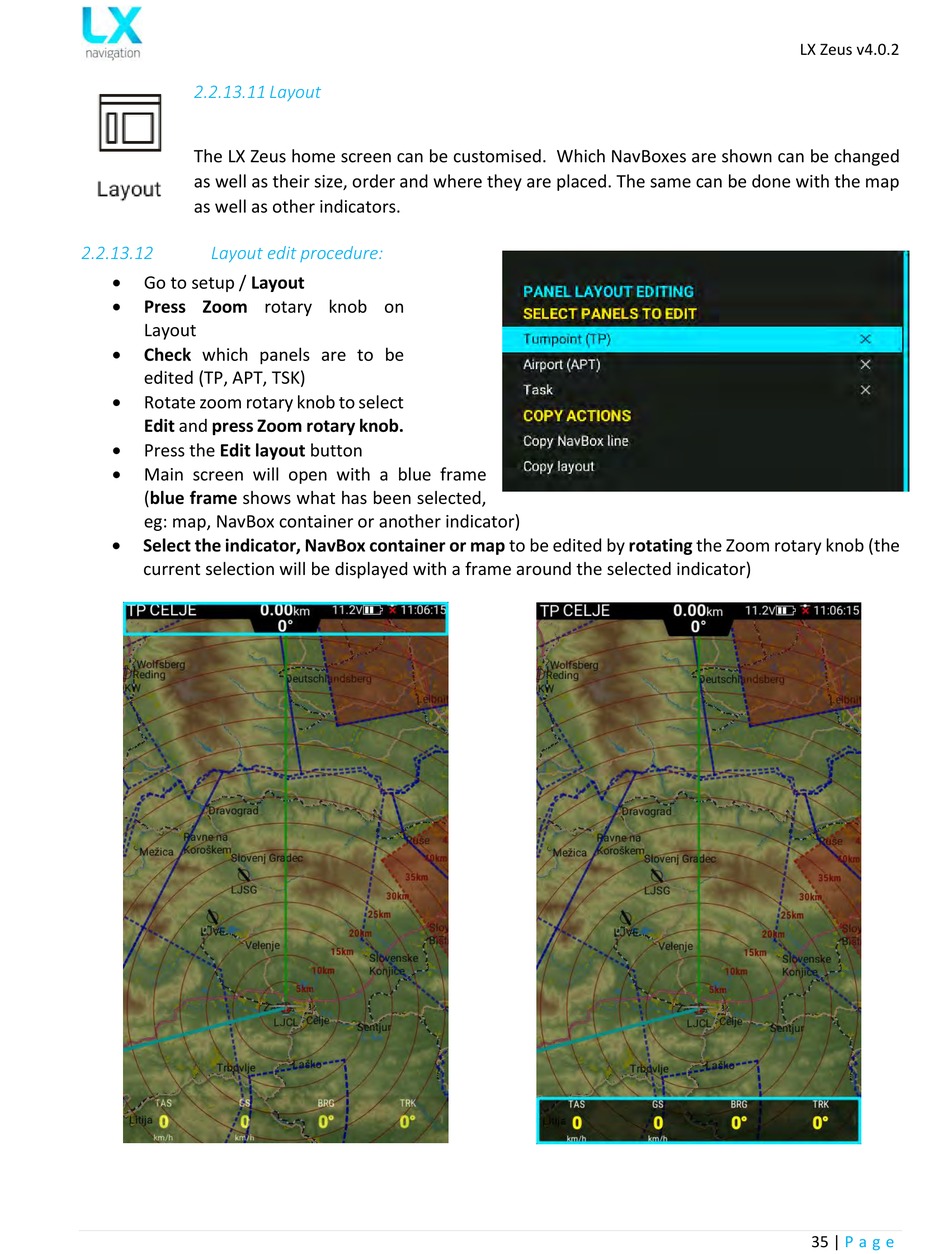

2.2.13.11 Layout
The LX Zeus home screen can be customised. Which NavBoxes are shown can be changed
as well as their size, order and where they are placed. The same can be done with the map
as well as other indicators.
2.2.13.12 Layout edit procedure:

Go to setup / Layout

Press Zoom rotary knob on
Layout

Check which panels are to be
edited (TP, APT, TSK)

Rotate zoom rotary knob to select
Edit and press Zoom rotary knob.

Press the Edit layout button

Main screen will open with a blue frame
(blue frame shows what has been selected,
eg: map, NavBox container or another indicator)

Select the indicator, NavBox container or map to be edited by rotating the Zoom rotary knob (the
current selection will be displayed with a frame around the selected indicator)
