4 Airspace Management

Airspace on LX Zeus can be managed by the pilot to achieve
the optimum relationship between loading the display and
its readability. Too much information will reduce the
readability of the display.
1.1

Basic airspace settings

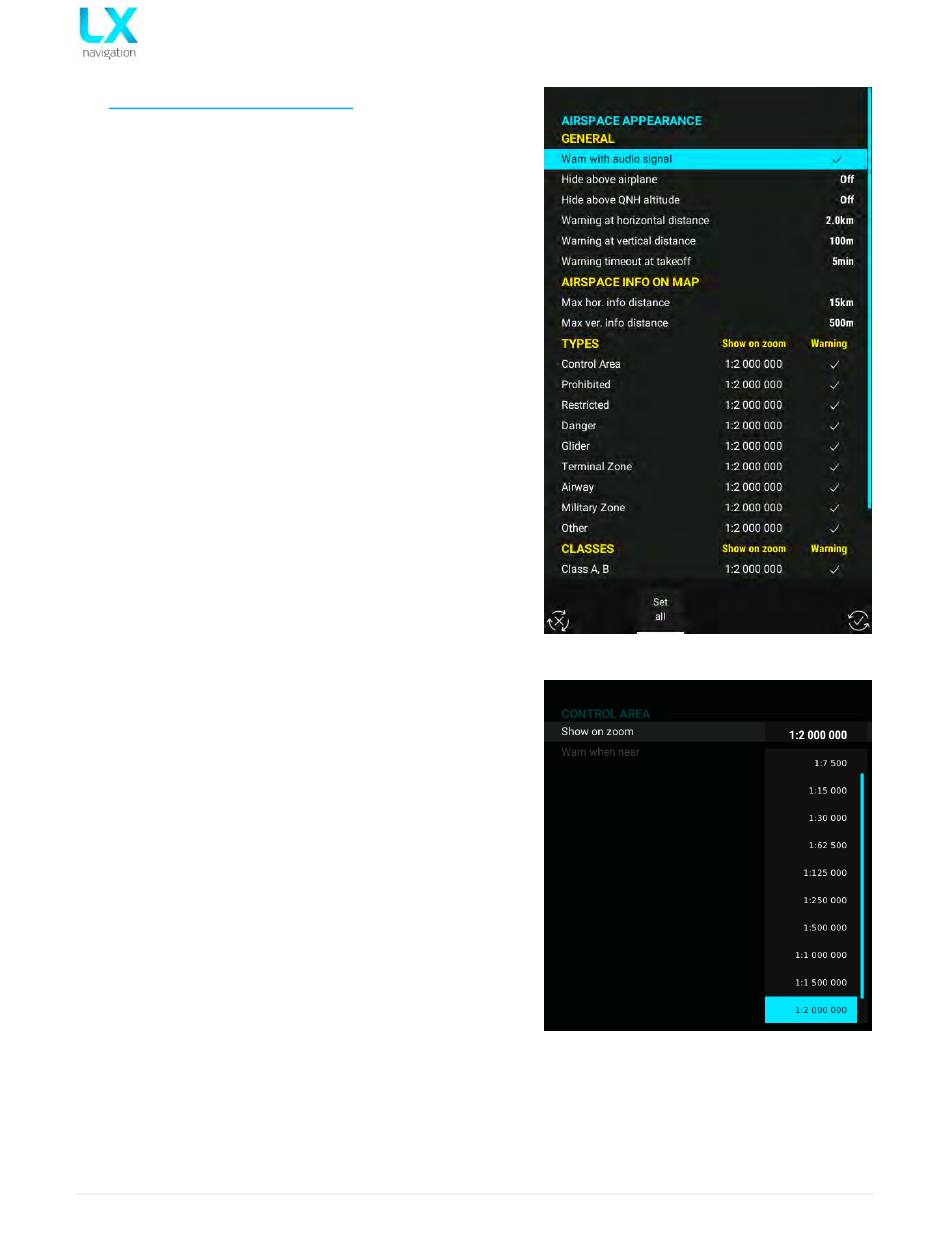

Settings are available under Setup > Airspaces. The user can
select warnings and appearances related to the zoom level.
4.1.1

Hide airspace above

The airspace sections that are much higher than the
altitude of the glider are not relevant. Disabling them will
significantly reduce the density of information on the
display. Use Hide airspaces above airplane to define the
altitude margin that considered to be required for a safe
flight.
4.1.2

Other settings

Hide above QNH altitude allows a selection of the QNH
altitude above which the airspace should be hidden.
Horizontal and vertical distance warnings can be set also
in this section. LX Zeus will warn a user at a predefined
warning distance. Default settings are 100m vertically and
2 km horizontally.
Warning timeout at takeoff allows a choice as to how
long after the take-off there won't be any airspace
warnings.
4.1.3 Define appearance of airspace
related to zoom level
Zoom levels can be selected at which different airspace
types will be visible. Use the Show on zoom function to
define to which zoom level the airspace type is to be
visible on the display. Two extreme situations are
described with always and never. Factory default settings
for all airspace types are always.
