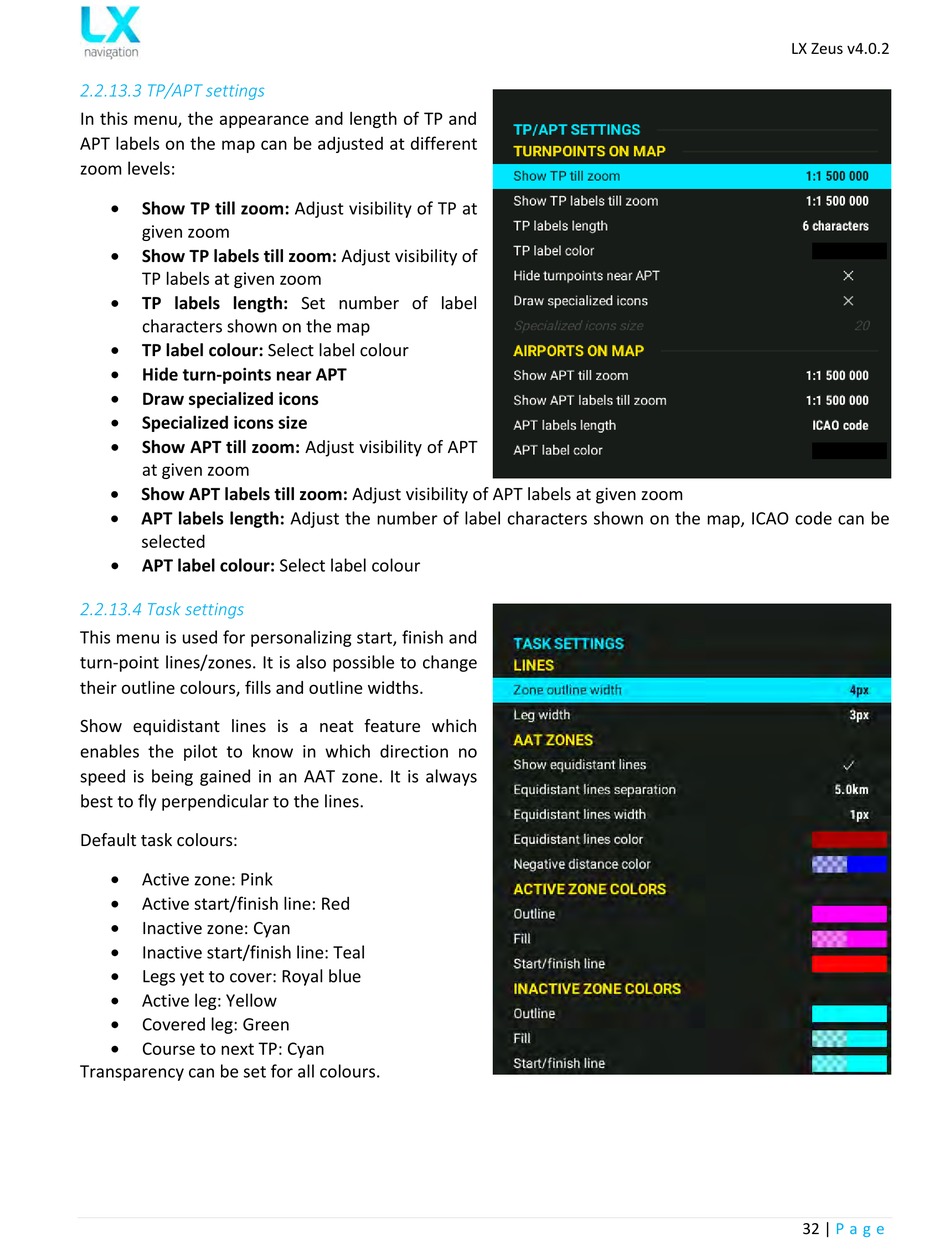

2.2.13.3 TP/APT settings
In this menu, the appearance and length of TP and
APT labels on the map can be adjusted at different
zoom levels:

Show TP till zoom: Adjust visibility of TP at
given zoom

Show TP labels till zoom: Adjust visibility of
TP labels at given zoom

TP labels length: Set number of label
characters shown on the map

TP label colour: Select label colour

Hide turn-points near APT

Draw specialized icons

Specialized icons size

Show APT till zoom: Adjust visibility of APT
at given zoom

Show APT labels till zoom: Adjust visibility of APT labels at given zoom

APT labels length: Adjust the number of label characters shown on the map, ICAO code can be
selected

APT label colour: Select label colour
2.2.13.4 Task settings
This menu is used for personalizing start, finish and
turn-point lines/zones. It is also possible to change
their outline colours, fills and outline widths.
Show equidistant lines is a neat feature which
enables the pilot to know in which direction no
speed is being gained in an AAT zone. It is always
best to fly perpendicular to the lines.
Default task colours:

Active zone: Pink

Active start/finish line: Red

Inactive zone: Cyan

Inactive start/finish line: Teal

Legs yet to cover: Royal blue

Active leg: Yellow

Covered leg: Green

Course to next TP: Cyan
Transparency can be set for all colours.
