* CAN bus connects LX Zeus to:
 LX Eos (57/80)
 LX Era (57/80)
Second seat unit

 LX Joy
LX NavBox

 LX Flaps sensor
LX MOP

 LX AHRS

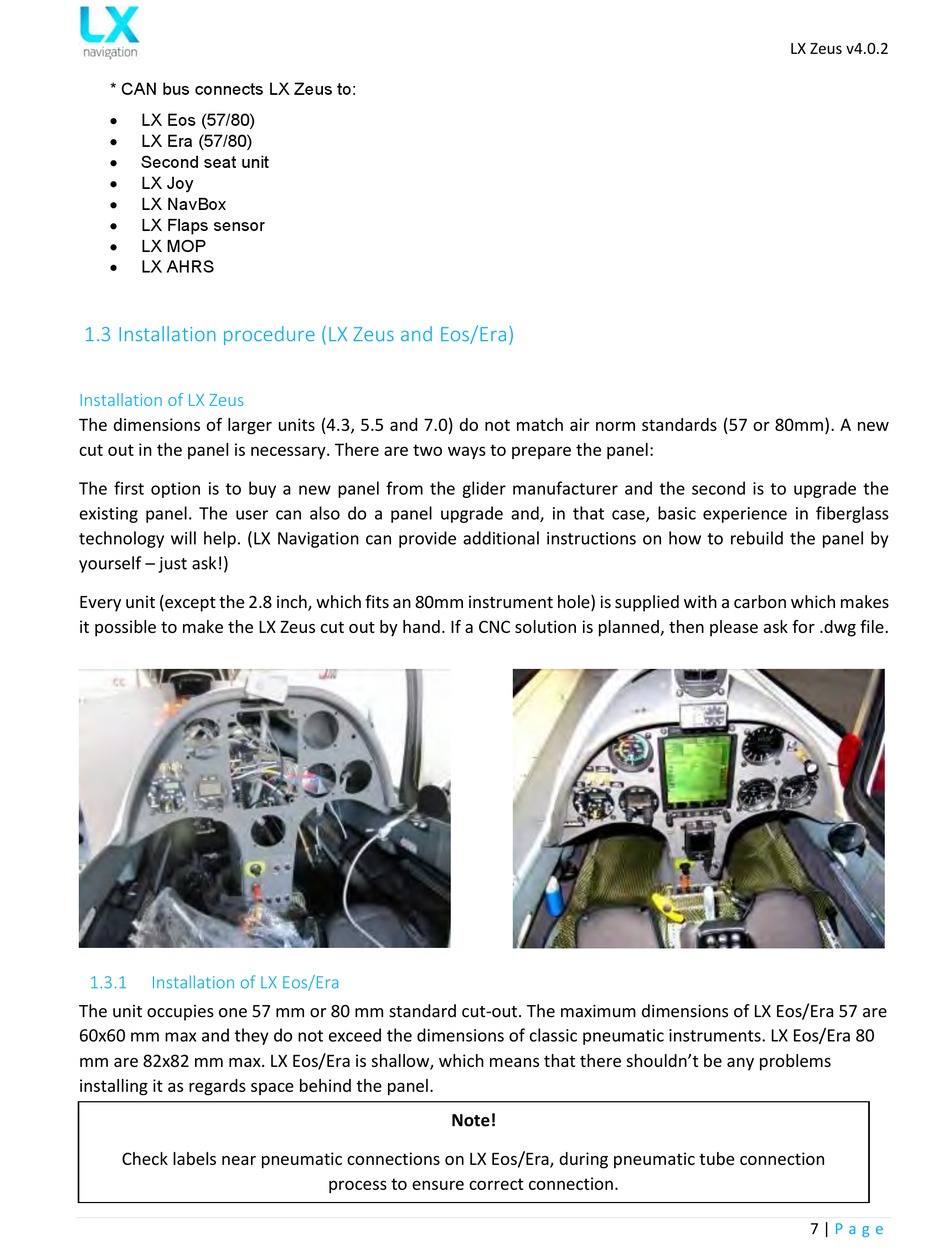

1.3 Installation procedure (LX Zeus and Eos/Era)

Installation of LX Zeus

The dimensions of larger units (4.3, 5.5 and 7.0) do not match air norm standards (57 or 80mm). A new
cut out in the panel is necessary. There are two ways to prepare the panel:
The first option is to buy a new panel from the glider manufacturer and the second is to upgrade the
existing panel. The user can also do a panel upgrade and, in that case, basic experience in fiberglass
technology will help. (LX Navigation can provide additional instructions on how to rebuild the panel by
yourself – just ask!)
Every unit (except the 2.8 inch, which fits an 80mm instrument hole) is supplied with a carbon which makes
it possible to make the LX Zeus cut out by hand. If a CNC solution is planned, then please ask for .dwg file.
1.3.1

Installation of LX Eos/Era

The unit occupies one 57 mm or 80 mm standard cut-out. The maximum dimensions of LX Eos/Era 57 are
60x60 mm max and they do not exceed the dimensions of classic pneumatic instruments. LX Eos/Era 80
mm are 82x82 mm max. LX Eos/Era is shallow, which means that there shouldn't be any problems
installing it as regards space behind the panel.
Check labels near pneumatic connections on LX Eos/Era, during pneumatic tube connection
Note!
process to ensure correct connection.
LX Zeus v4.0.2
7 | P a g e
