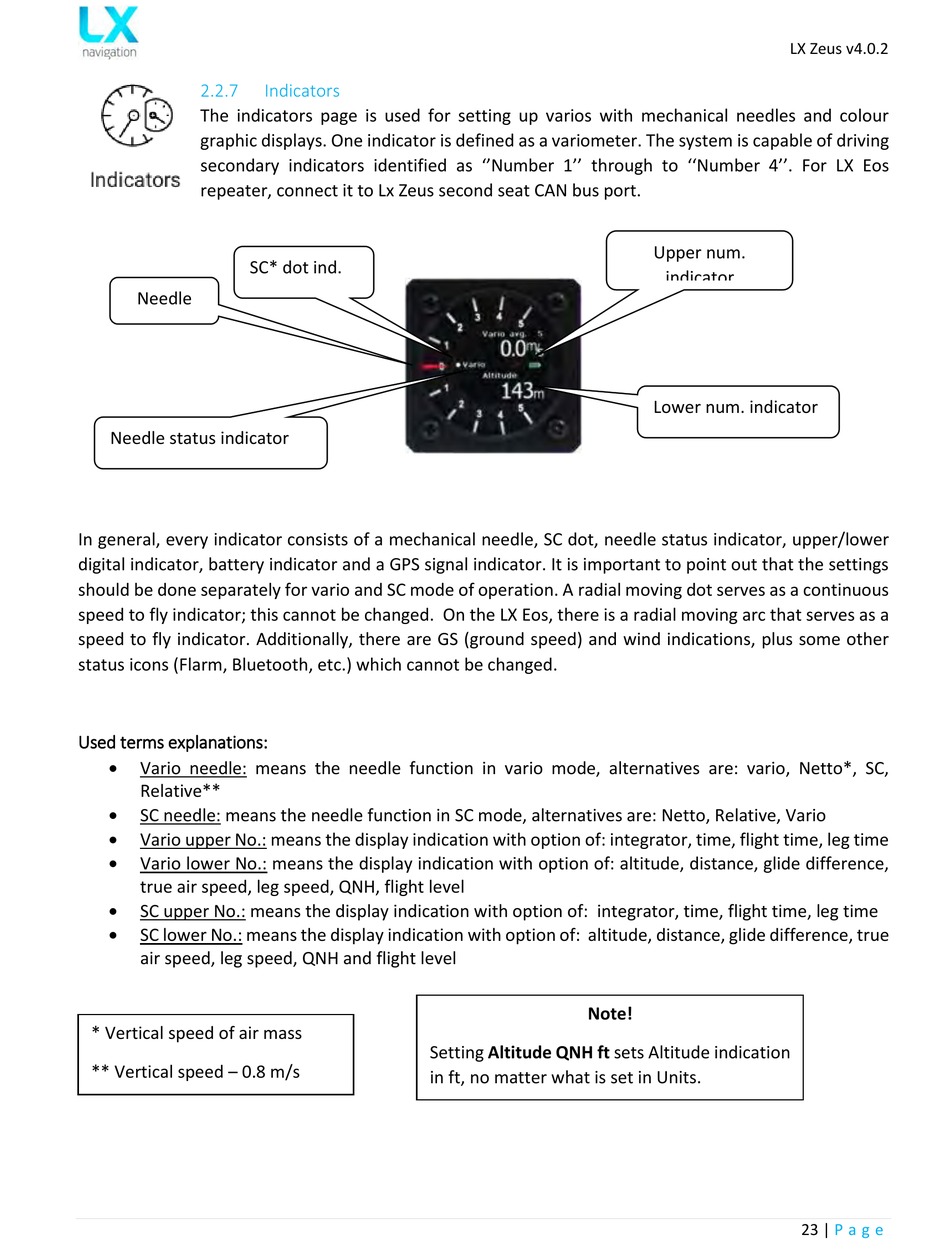

2.2.7
The indicators page is used for setting up varios with mechanical needles and colour
graphic displays. One indicator is defined as a variometer. The system is capable of driving
secondary indicators identified as ''Number 1'' through to ''Number 4''. For LX Eos
repeater, connect it to Lx Zeus second seat CAN bus port.
SC* dot ind.
Needle
Needle status indicator
In general, every indicator consists of a mechanical needle, SC dot, needle status indicator, upper/lower
digital indicator, battery indicator and a GPS signal indicator. It is important to point out that the settings
should be done separately for vario and SC mode of operation. A radial moving dot serves as a continuous
speed to fly indicator; this cannot be changed. On the LX Eos, there is a radial moving arc that serves as a
speed to fly indicator. Additionally, there are GS (ground speed) and wind indications, plus some other
status icons (Flarm, Bluetooth, etc.) which cannot be changed.
Used terms explanations:

Vario needle: means the needle function in vario mode, alternatives are: vario, Netto*, SC,
Relative**

SC needle: means the needle function in SC mode, alternatives are: Netto, Relative, Vario

Vario upper No.: means the display indication with option of: integrator, time, flight time, leg time

Vario lower No.: means the display indication with option of: altitude, distance, glide difference,
true air speed, leg speed, QNH, flight level

SC upper No.: means the display indication with option of: integrator, time, flight time, leg time

SC lower No.: means the display indication with option of: altitude, distance, glide difference, true
air speed, leg speed, QNH and flight level
* Vertical speed of air mass
** Vertical speed – 0.8 m/s

Indicators

Setting Altitude QNH ft sets Altitude indication
in ft, no matter what is set in Units.
Upper num.
indicator
Lower num. indicator
Note!
LX Zeus v4.0.2
