If the indicator shows mostly red, then MC should be increased, if colour is mostly blue, then the MC
A symbol of a glider will appear on the right or left side of the circle. If the glider is on the right of the circle
it means that it is circling to the left and the thermal is on the left side.
The user can select a zoom level to which the map is switched once circling has been detected.
This can be changed in Setup > User interface > Map settings.
In Setup > Layout the size and position of a thermal assistant can be customized. Default position is in the
lower left corner below the IAS indicator.
12.2.11

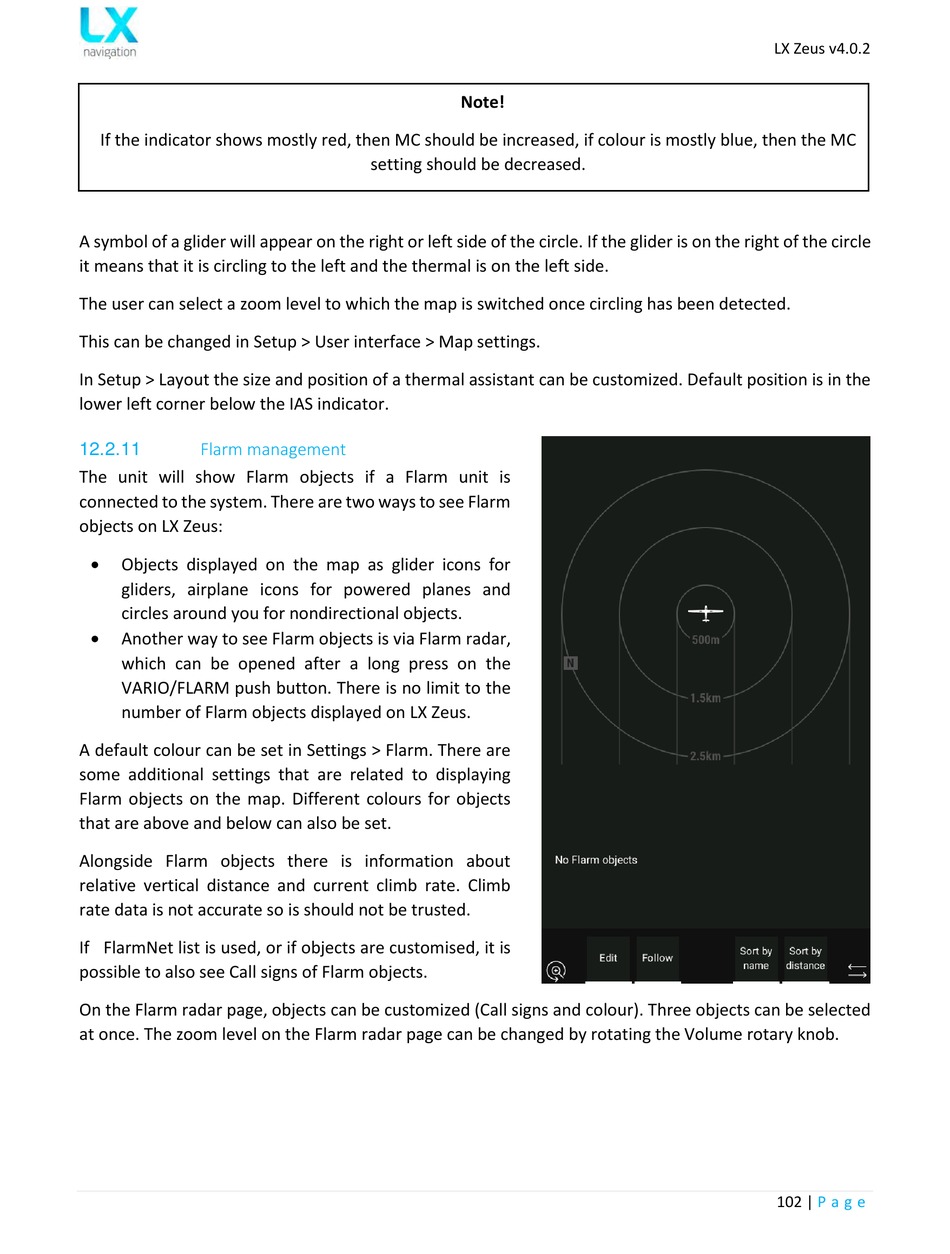

Flarm management

The unit will show Flarm objects if a Flarm unit is
connected to the system. There are two ways to see Flarm
objects on LX Zeus:

Objects displayed on the map as glider icons for
gliders, airplane icons for powered planes and
circles around you for nondirectional objects.

Another way to see Flarm objects is via Flarm radar,
which can be opened after a long press on the
VARIO/FLARM push button. There is no limit to the
number of Flarm objects displayed on LX Zeus.
A default colour can be set in Settings > Flarm. There are
some additional settings that are related to displaying
Flarm objects on the map. Different colours for objects
that are above and below can also be set.
Alongside Flarm objects there is information about
relative vertical distance and current climb rate. Climb
rate data is not accurate so is should not be trusted.
If FlarmNet list is used, or if objects are customised, it is
possible to also see Call signs of Flarm objects.
On the Flarm radar page, objects can be customized (Call signs and colour). Three objects can be selected
at once. The zoom level on the Flarm radar page can be changed by rotating the Volume rotary knob.
Note!
setting should be decreased.
