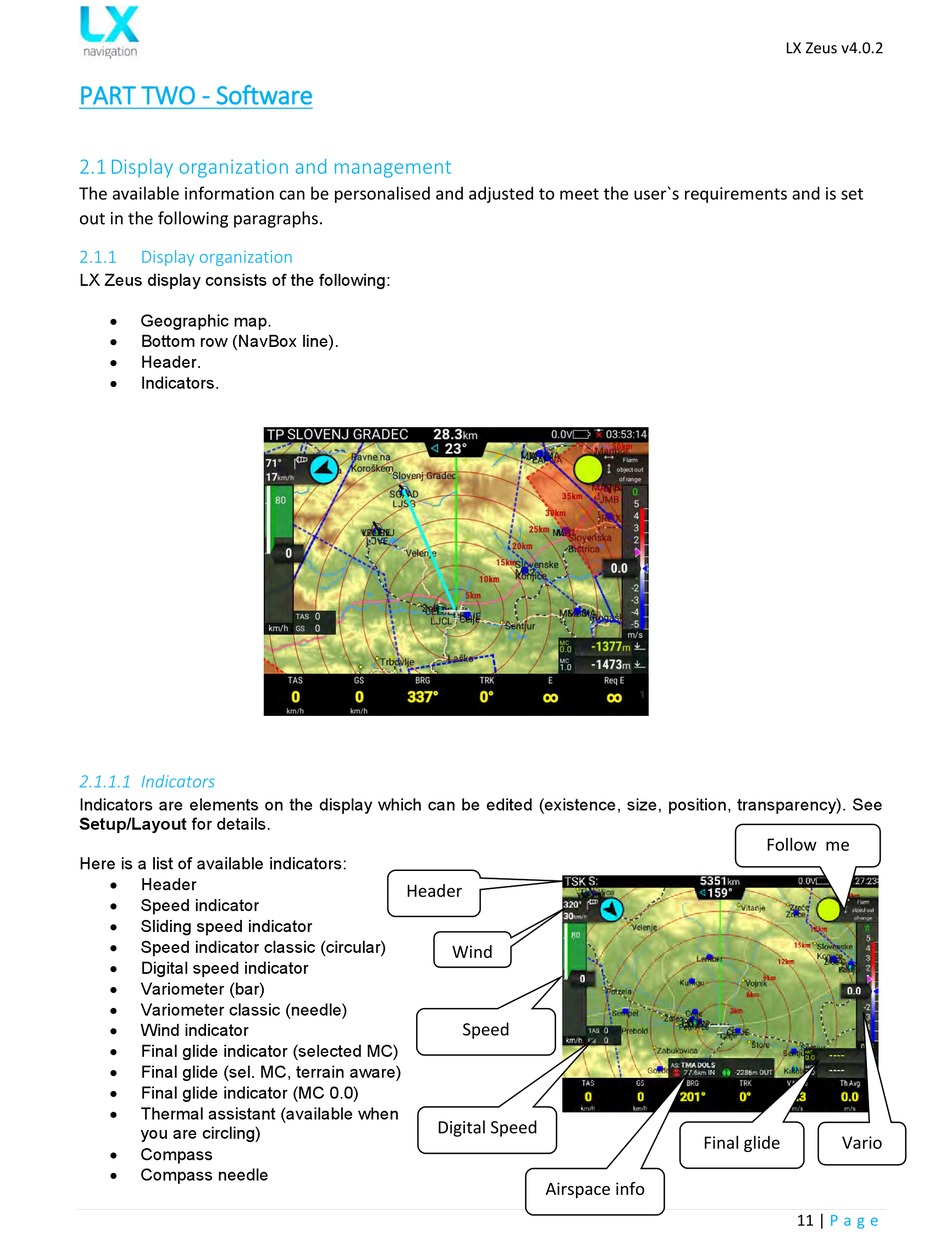

PART TWO - Software

2.1 Display organization and management

The available information can be personalised and adjusted to meet the user`s requirements and is set
out in the following paragraphs.
2.1.1

Display organization

LX Zeus display consists of the following:
 Geographic map.
Bottom row (NavBox line).

 Header.
Indicators.

2.1.1.1 Indicators
Indicators are elements on the display which can be edited (existence, size, position, transparency). See
Setup/Layout for details.
Here is a list of available indicators:
 Header
Speed indicator

 Sliding speed indicator
Speed indicator classic (circular)

Digital speed indicator

Variometer (bar)

Variometer classic (needle)

 Wind indicator
Final glide indicator (selected MC)

 Final glide (sel. MC, terrain aware)
Final glide indicator (MC 0.0)

 Thermal assistant (available when
you are circling)
 Compass
Compass needle

Header
Wind
Speed
Digital Speed
Airspace info
LX Zeus v4.0.2
Follow me
Final glide Vario
