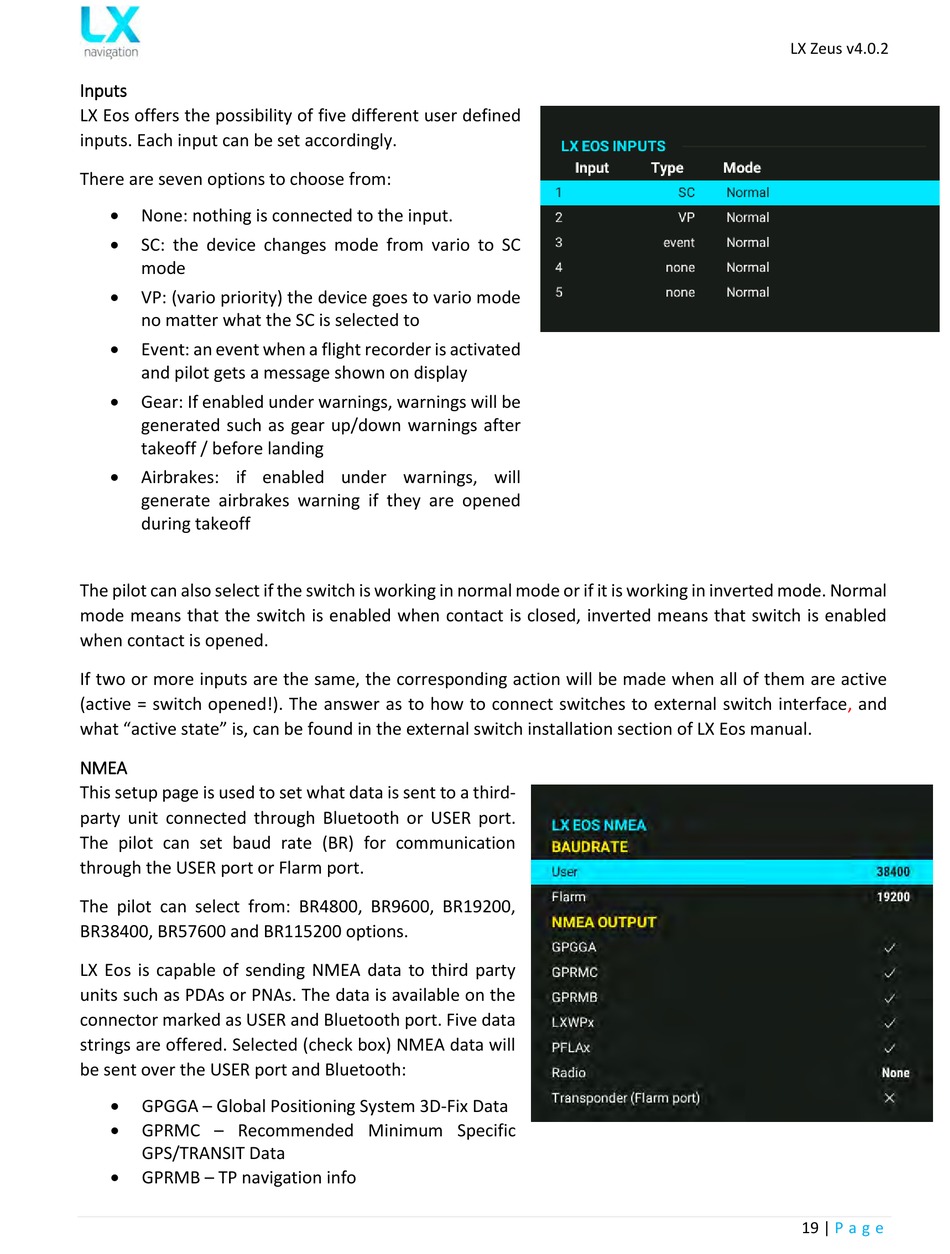

LX Navigation Zeus User Manual page 20

Inputs
LX Eos offers the possibility of five different user defined
inputs. Each input can be set accordingly.
There are seven options to choose from:

None: nothing is connected to the input.

SC: the device changes mode from vario to SC
mode

VP: (vario priority) the device goes to vario mode
no matter what the SC is selected to

Event: an event when a flight recorder is activated
and pilot gets a message shown on display

Gear: If enabled under warnings, warnings will be
generated such as gear up/down warnings after
takeoff / before landing

Airbrakes: if enabled under warnings, will
generate airbrakes warning if they are opened
during takeoff
The pilot can also select if the switch is working in normal mode or if it is working in inverted mode. Normal
mode means that the switch is enabled when contact is closed, inverted means that switch is enabled
when contact is opened.
If two or more inputs are the same, the corresponding action will be made when all of them are active
(active = switch opened!). The answer as to how to connect switches to external switch
what "active state" is, can be found in the external switch installation section of LX Eos manual.
NMEA
This setup page is used to set what data is sent to a third-
party unit connected through Bluetooth or USER port.
The pilot can set baud rate (BR) for communication
through the USER port or Flarm port.
The pilot can select from: BR4800, BR9600, BR19200,
BR38400, BR57600 and BR115200 options.
LX Eos is capable of sending NMEA data to third party
units such as PDAs or PNAs. The data is available on the
connector marked as USER and Bluetooth port. Five data
strings are offered. Selected (check box) NMEA data will
be sent over the USER port and Bluetooth:

GPGGA – Global Positioning System 3D-Fix Data

GPRMC – Recommended Minimum Specific
GPS/TRANSIT Data

GPRMB – TP navigation info
LX Zeus v4.0.2
interface, and
19 | P a g e
