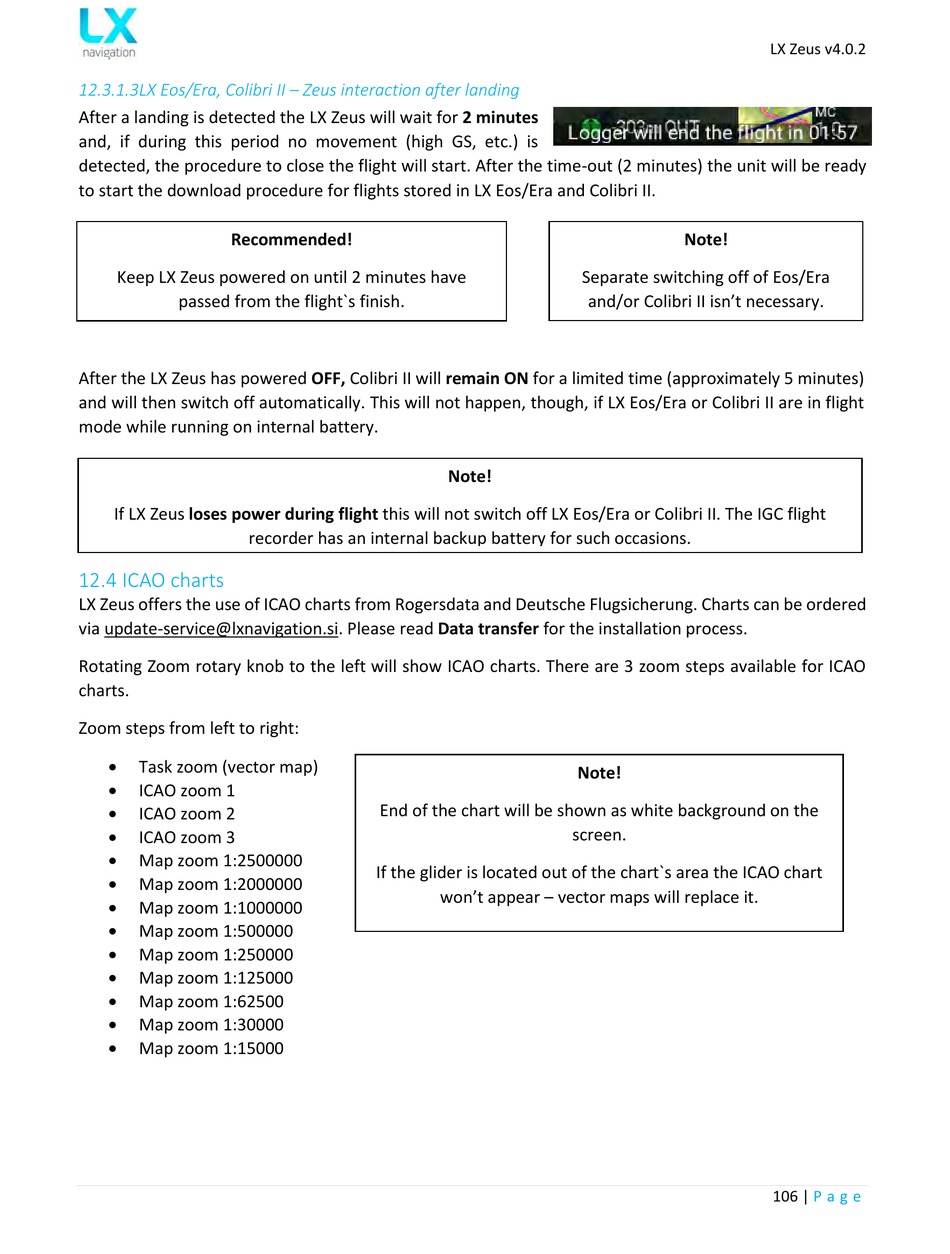

12.3.1.3LX Eos/Era, Colibri II – Zeus interaction after landing
After a landing is detected the LX Zeus will wait for 2 minutes
and, if during this period no movement (high GS, etc.) is
detected, the procedure to close the flight will start. After the time-out (2 minutes) the unit will be ready
to start the download procedure for flights stored in LX Eos/Era and Colibri II.
Recommended!
Keep LX Zeus powered on until 2 minutes have
passed from the flight`s finish.
After the LX Zeus has powered OFF, Colibri II will remain ON for a limited time (approximately 5 minutes)
and will then switch off automatically. This will not happen, though, if LX Eos/Era or Colibri II are in flight
mode while running on internal battery.
If LX Zeus loses power during flight this will not switch off LX Eos/Era or Colibri II. The IGC flight
recorder has an internal backup battery for such occasions.

12.4 ICAO charts

LX Zeus offers the use of ICAO charts from Rogersdata and Deutsche Flugsicherung. Charts can be ordered
via update-service@lxnavigation.si. Please read Data transfer for the installation process.
Rotating Zoom rotary knob to the left will show ICAO charts. There are 3 zoom steps available for ICAO
charts.
Zoom steps from left to right:

Task zoom (vector map)

ICAO zoom 1

ICAO zoom 2

ICAO zoom 3

Map zoom 1:2500000

Map zoom 1:2000000

Map zoom 1:1000000

Map zoom 1:500000

Map zoom 1:250000

Map zoom 1:125000

Map zoom 1:62500

Map zoom 1:30000

Map zoom 1:15000
Note!
End of the chart will be shown as white background on the
If the glider is located out of the chart`s area the ICAO chart
won't appear – vector maps will replace it.
Note!
Separate switching off of Eos/Era
and/or Colibri II isn't necessary.
Note!
screen.
LX Zeus v4.0.2
106 | P a g e
