LX Navigation LX 5000 Manual

Compass module
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

LX 5000 Compass Module
August 2001
LX 5000
Compass Module

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LX 5000 and is the answer not in the manual?

Questions and answers

Related Manuals for LX Navigation LX 5000

Summary of Contents for LX Navigation LX 5000

  • Page 1 LX 5000 Compass Module August 2001 LX 5000 Compass Module...

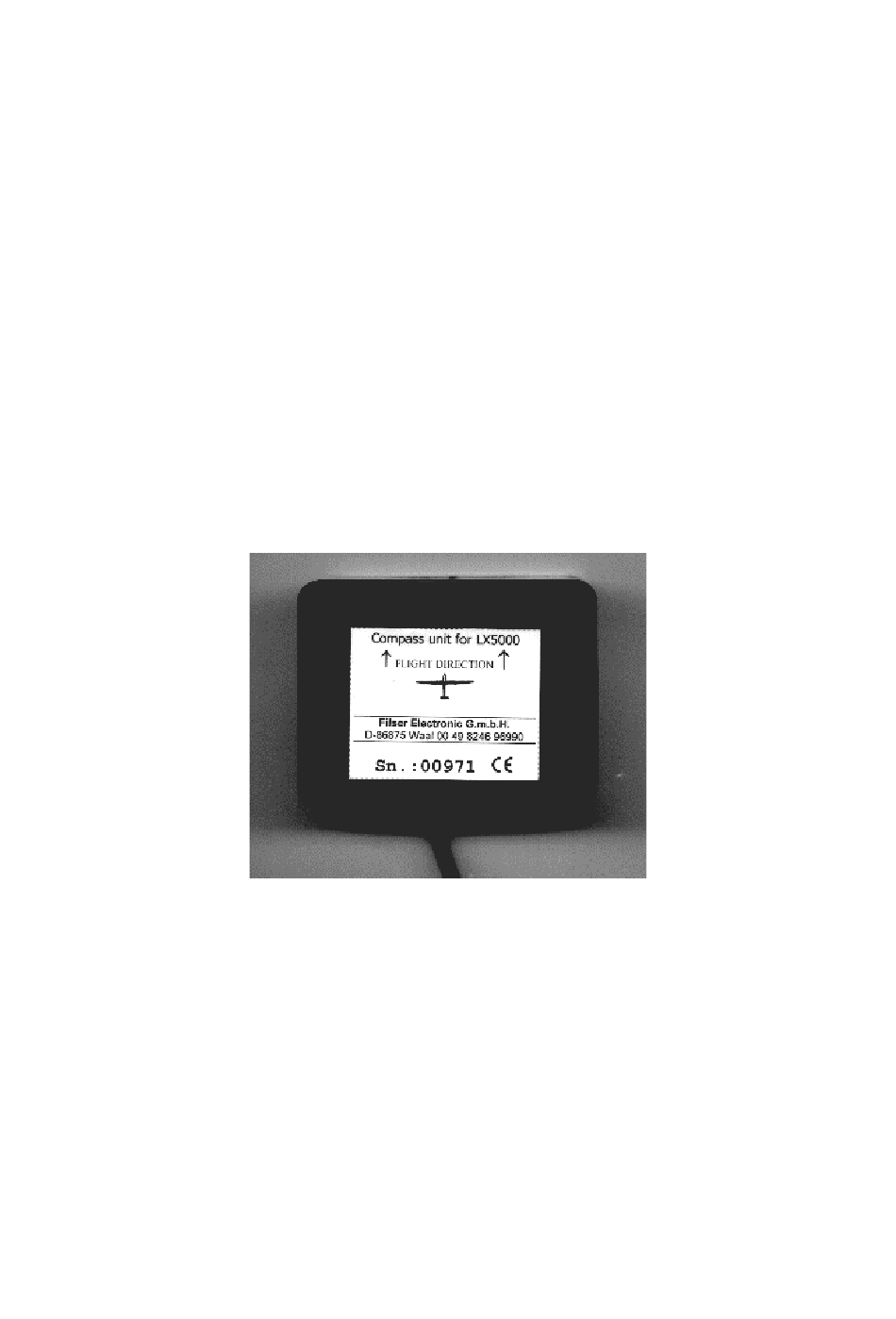

  • Page 2 LX 5000 Compass Module August 2001 1 General The compass module is an electronical compass (magnetic field sensor) , which was devloped for the LX5000. The LX5000 recognizes the compass module automatically, therefore only the compensation procedure but no additional settings in the LX5000 are needed.
  • Page 3 LX 5000 Compass Module August 2001 2.1 where to install: The compass module should be installed as far as possible away from magnetical, elektrical and iron parts (speaker and anolog varios are very interfering). Even the mechanical compass should be far away.
  • Page 4 LX 5000 Compass Module August 2001 The compensation table will look similar to that above when you have finished the pocedure. Leave the menu with ESC. 2.4 final test: Switch the LX5000 back to Nav.-Page 3 and proof again all 8 directions. The error should now be less than 1 –...
