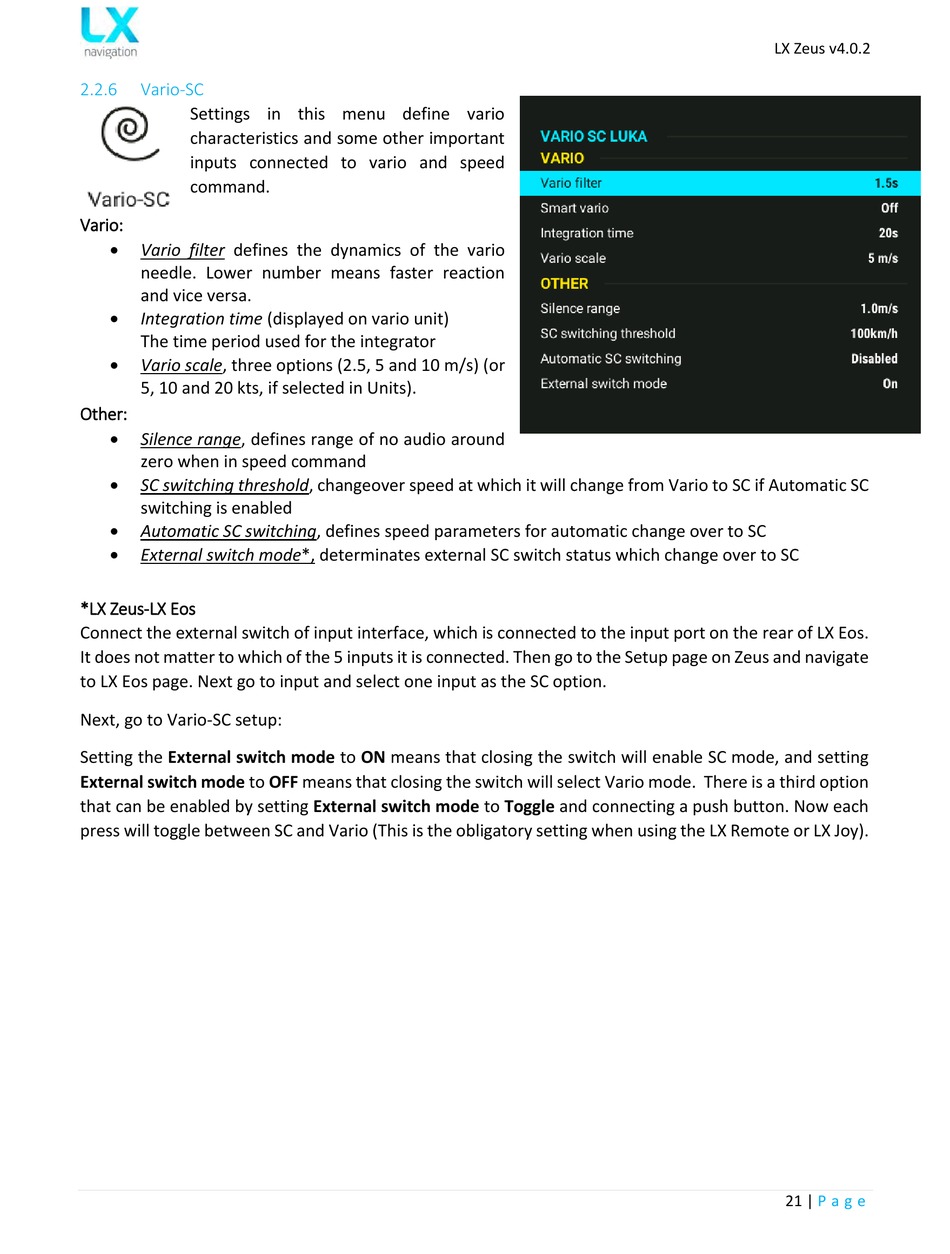

2.2.6

Vario-SC

Settings in this menu define vario
characteristics and some other important
inputs connected to vario and speed
command.
Vario:

Vario filter defines the dynamics of the vario
needle. Lower number means faster reaction
and vice versa.

Integration time (displayed on vario unit)
The time period used for the integrator

Vario scale, three options (2.5, 5 and 10 m/s) (or
5, 10 and 20 kts, if selected in Units).
Other:

Silence range, defines range of no audio around
zero when in speed command

SC switching threshold, changeover speed at which it will change from Vario to SC if Automatic SC
switching is enabled

Automatic SC switching, defines speed parameters for automatic change over to SC

External switch mode*, determinates external SC switch status which change over to SC
*LX Zeus-LX Eos
Connect the external switch of input interface, which is connected to the input port on the rear of LX Eos.
It does not matter to which of the 5 inputs it is connected. Then go to the Setup page on Zeus and navigate
to LX Eos page. Next go to input and select one input as the SC option.
Next, go to Vario-SC setup:
Setting the External switch mode to ON means that closing the switch will enable SC mode, and setting
External switch mode to OFF means that closing the switch will select Vario mode. There is a third option
that can be enabled by setting External switch mode to Toggle and connecting a push button. Now each
press will toggle between SC and Vario (This is the obligatory setting when using the LX Remote or LX Joy).
LX Zeus v4.0.2
21 | P a g e
