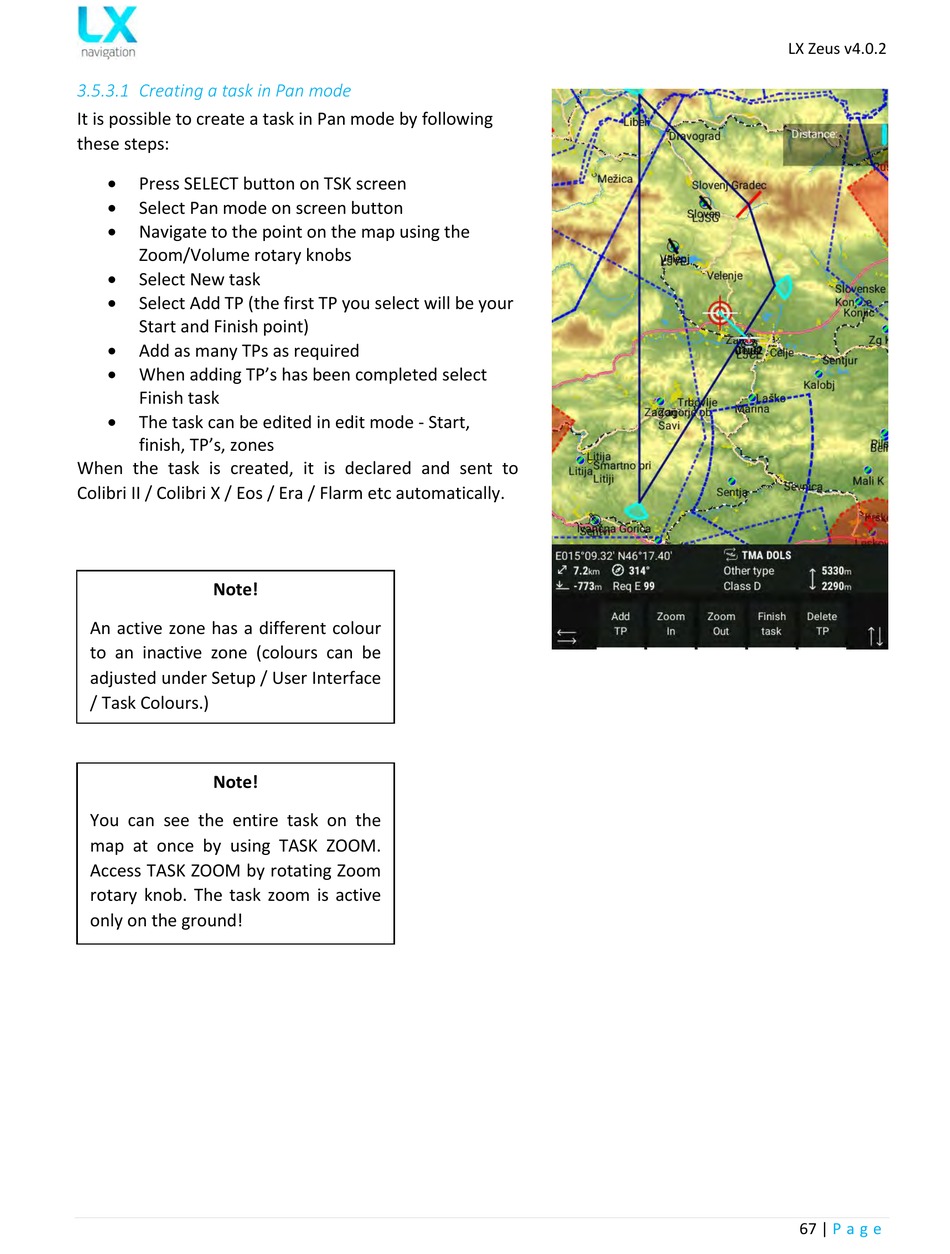

3.5.3.1 Creating a task in Pan mode
It is possible to create a task in Pan mode by following
these steps:

Press SELECT button on TSK screen

Select Pan mode on screen button

Navigate to the point on the map using the
Zoom/Volume rotary knobs

Select New task

Select Add TP (the first TP you select will be your
Start and Finish point)

Add as many TPs as required

When adding TP's has been completed select
Finish task

The task can be edited in edit mode - Start,
finish, TP's, zones
When the task is created, it is declared and sent to
Colibri II / Colibri X / Eos / Era / Flarm etc automatically.
Note!
An active zone has a different colour
to an inactive zone (colours can be
adjusted under Setup / User Interface
/ Task Colours.)
Note!
You can see the entire task on the
map at once by using TASK ZOOM.
Access TASK ZOOM by rotating Zoom
rotary knob. The task zoom is active
only on the ground!
