4.3.6 Terminal Locations - Frame size E

Take the following position of the terminals into consideration when designing the cable access.
4

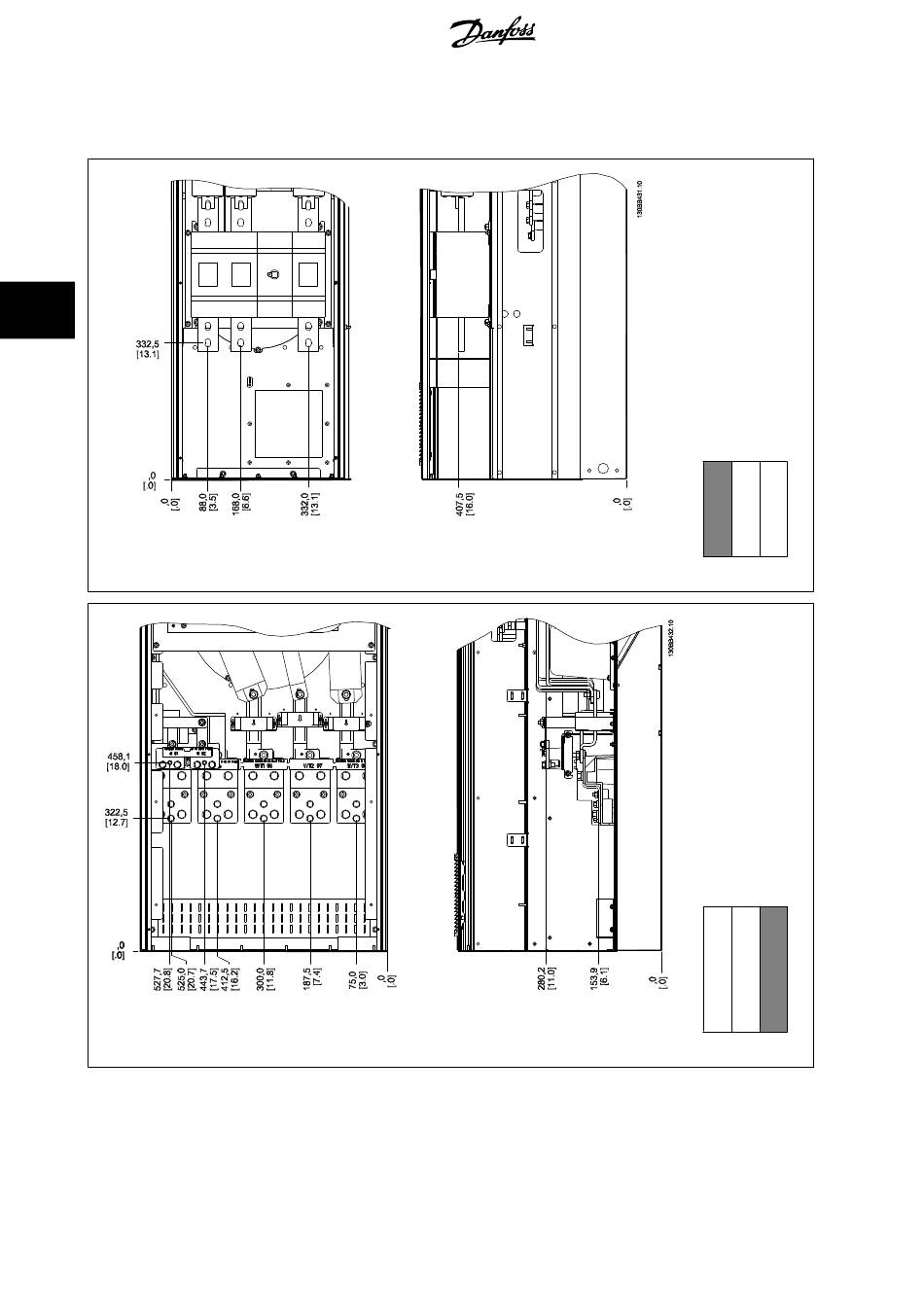

Illustration 4.14: Terminal locations E3 - filter
Illustration 4.15: Terminal locations E6 - drive
Note that the power cables are heavy and difficult to bend. Consider the optimum position of the frequency converter for ensuring easy installation of
the cables.
Each terminal allows use of up to 4 cables with cable lugs or use of standard box lug. Earth is connected to relevant termination point in the drive.
