VLT AQUA Low Harmonic Drive Operating In-
structions
4.3.10 IP21 Drip Shield Installation (Frame size D)
To comply with the IP21 rating, a separate drip shield is to be
installed as explained below:
•
Remove the two front screws
•
Insert the drip shield and replace screws
•
Torque the screws to 5,6 Nm (50 in-lbs)
NB!
Drip shield is necessary on both filter and drive section.

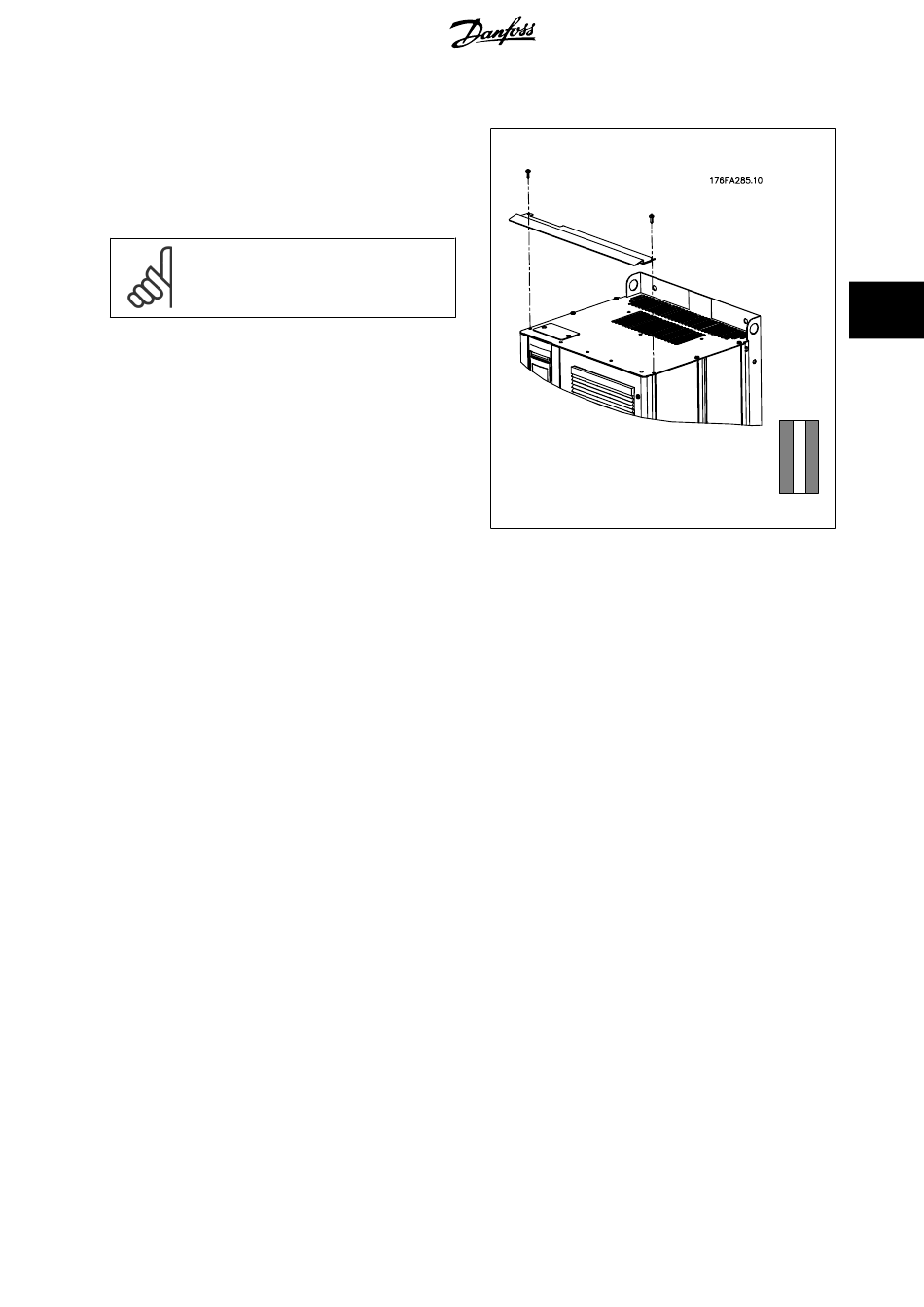

Illustration 4.26: Drip shield installation.
®
MG.20.T1.02 - VLT
is a registered Danfoss trademark
4 How to Install
4
↓
↓
39
