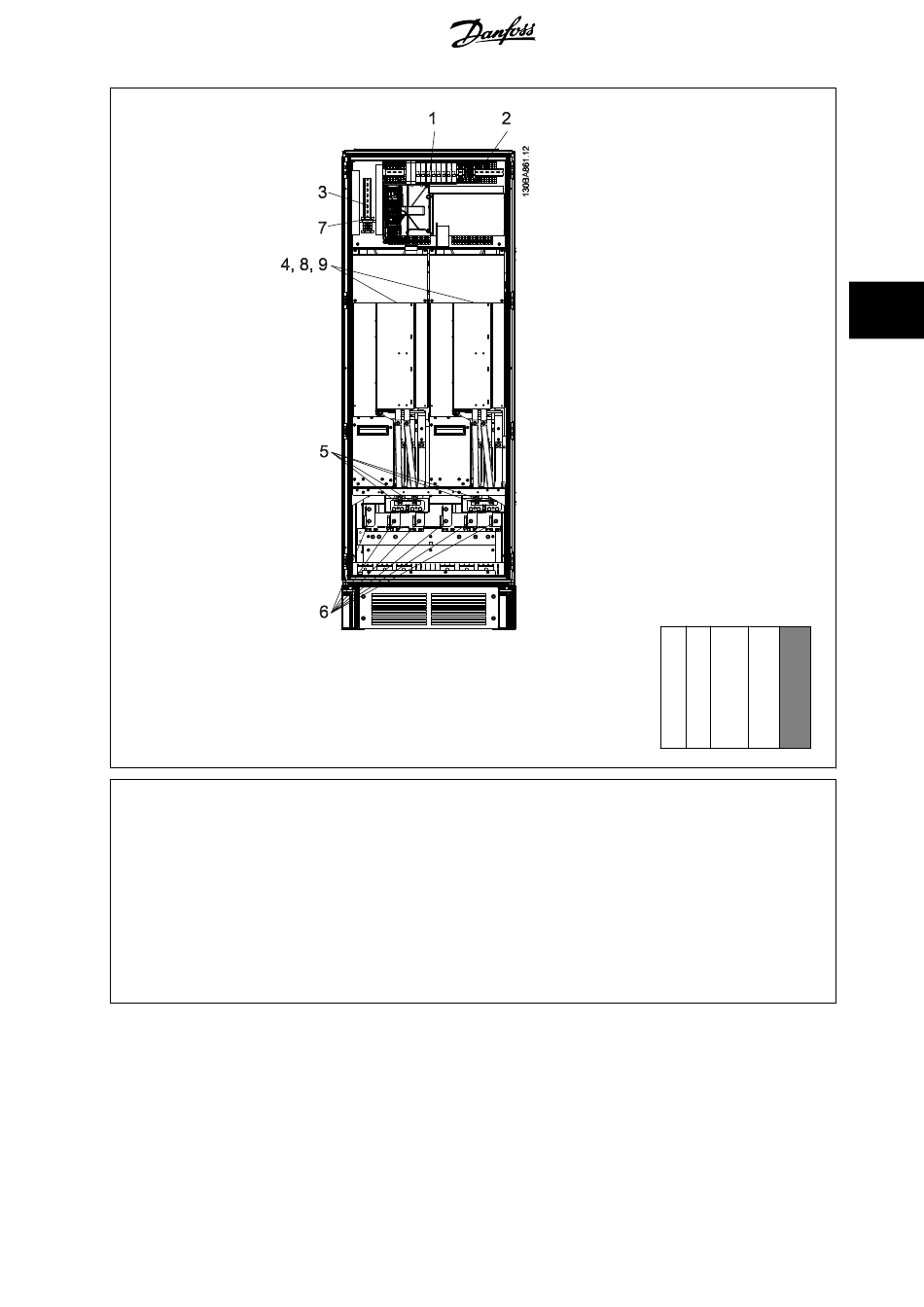

Illustration 4.32: Inverter Cabinet, frame size F17
1) External Temperature Monitoring
2) AUX Relay
01 02 03
04 05 06
3) NAMUR
4) AUX Fan
100 101 102 103
L1 L2 L1 L2
5) Brake
-R +R
81 82
6) Motor
U
96
T1
7) NAMUR Fuse. See fuse tables for part numbers
8) Fan Fuses. See fuse tables for part numbers
9) SMPS Fuses. See fuse tables for part numbers
®
MG.20.T1.02 - VLT is a registered Danfoss trademark
V W
97 98
T2 T3
