3.4.4 Terminal Locations for Frame Size D13

3 3
267.4
[10.5]

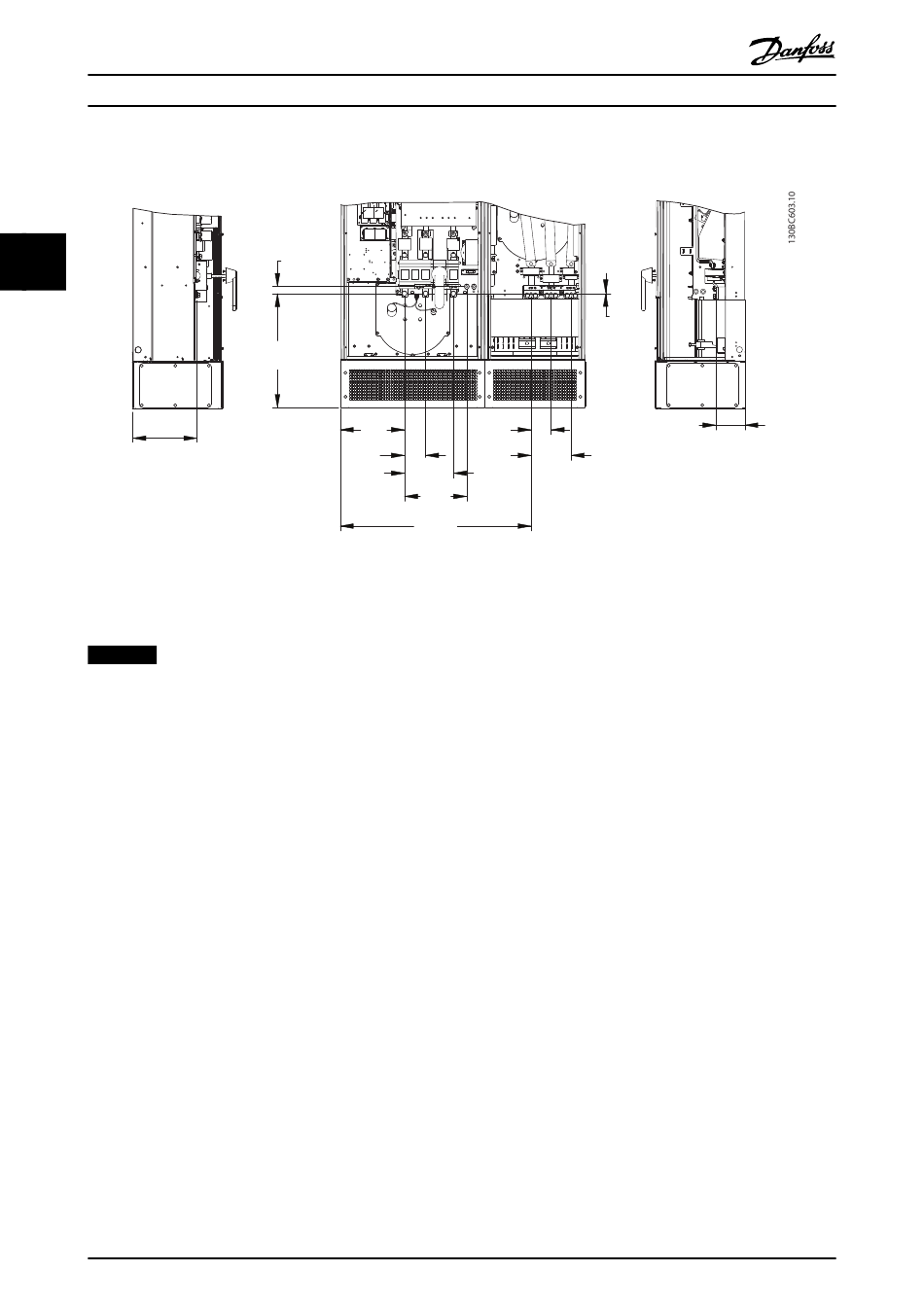

Illustration 3.12 Frame Size D13 Terminal Locations
Allow for bend radius of heavy power cables.
NOTICE
All D-frames are available with standard input terminals, fuse, or disconnect switch.
22
Operating Instructions
29.0
[1.1]
476.0
[18.7]
88.0
[3.5]
MAINS INPUT TERMINALS
