VLT AQUA Low Harmonic Drive Operating In-
structions
4.2.4 Lifting
Always lift the frequency converter in the dedicated lifting eyes. For all D and E frames, use a bar to avoid bending the lifting holes of the frequency
converter.

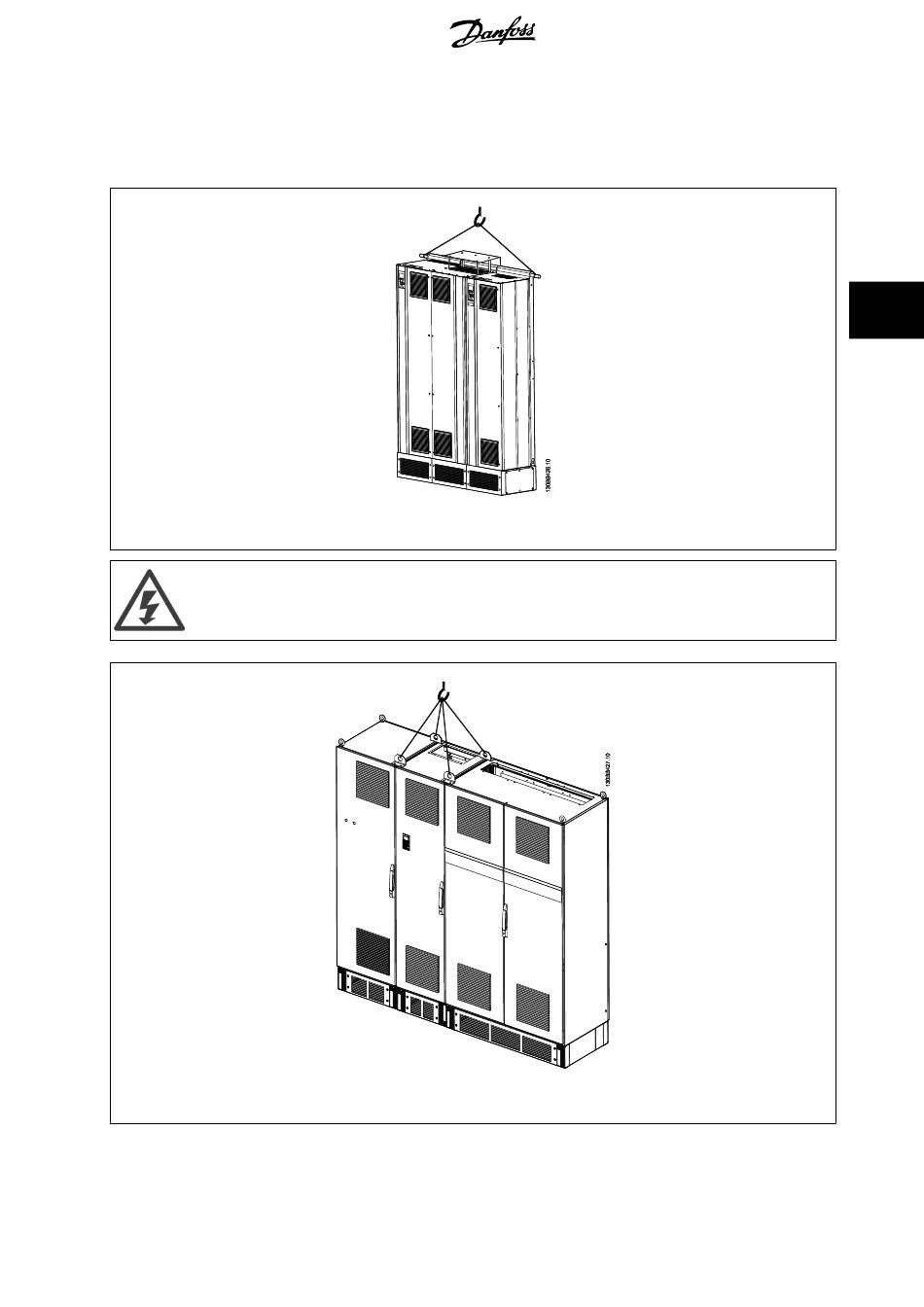

Illustration 4.2: Recommended lifting method, frame sizes D and E.
The lifting bar must be able to handle the weight of the frequency converter. See
frame sizes. Maximum diameter for bar is 2.5 cm (1 inch). The angle from the top of the drive to the lifting cable should be 60° or
greater.
Illustration 4.3: Recommended lifting method, frame size F - filter section.
®
MG.20.T1.02 - VLT
is a registered Danfoss trademark
Mechanical Dimensions for the weight of the different
4 How to Install
4
17
