5 How to Operate the Low Harmonic Drive
5.1.12 How to connect a PC to the frequency converter
To control or program the frequency converter (and the filter part) from a PC, install the PC-based Configuration Tool MCT 10.
The PC is connected via a standard (host/device) USB cable to both devices, or via the RS-485 interface as shown in the
Install > Installation of misc. connections .
NB!
The USB connection is galvanically isolated from the supply voltage (PELV) and other high-voltage terminals. The USB connection is
connected to protection earth on the frequency converter. Use only an isolated laptop as PC connection to the USB connector on the
frequency converter.
5

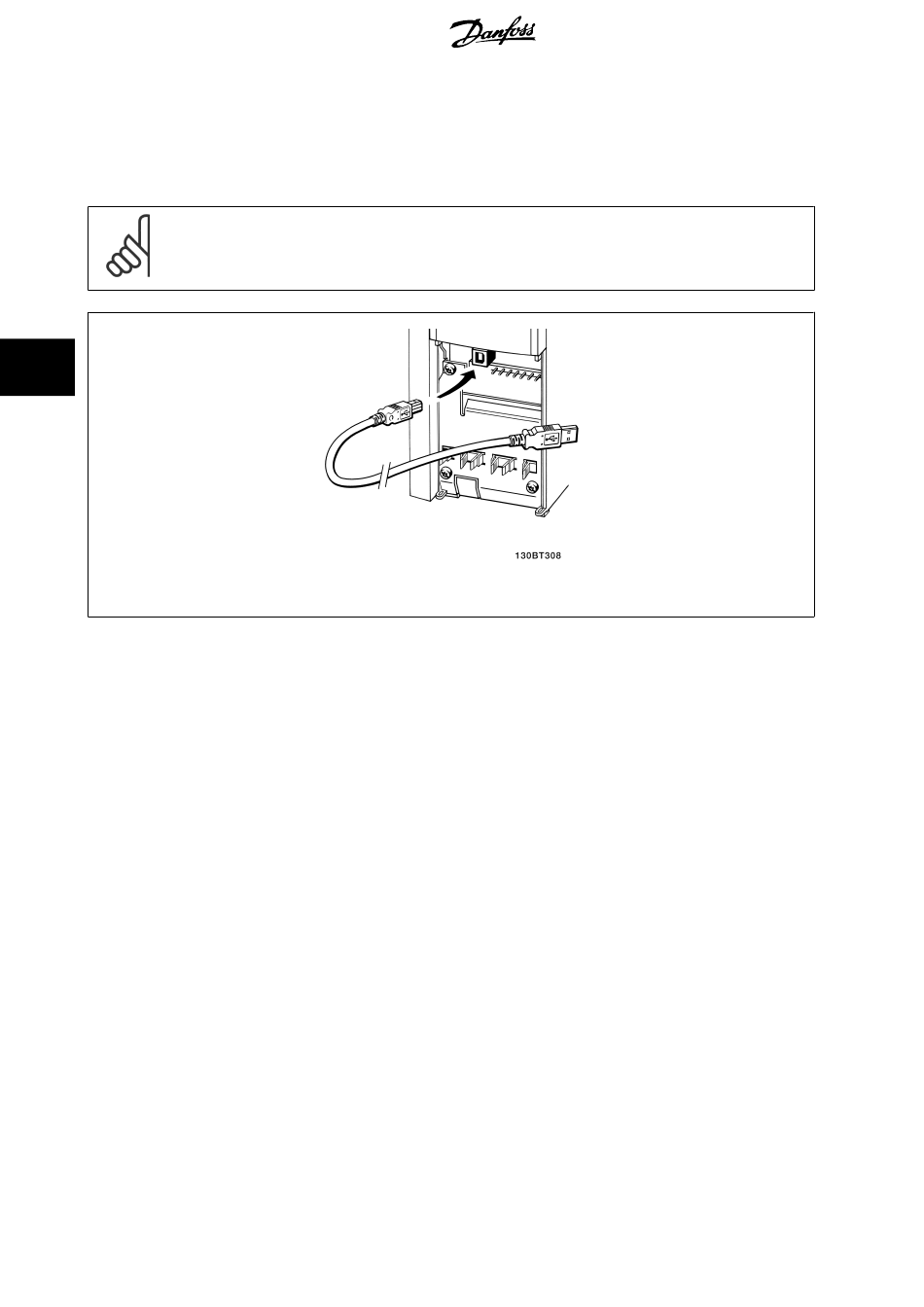

Illustration 5.5: For control cable connections, see section on
5.1.13 PC software tools
PC-based Configuration Tool MCT 10
The Low Harmonic Drive is equipped with two serial communication ports. Danfoss provides a PC tool for communication between PC and frequency
converter, PC-based Configuration Tool MCT 10. Please check the section on
MCT 10 set-up software
MCT 10 has been designed as an easy to use interactive tool for setting parameters in our frequency converters. The software can be downloaded from
http://www.Danfoss.com/BusinessAreas/DrivesSolutions/Softwaredownload/DDPC+Software+Program.htm .
the Danfoss internet site
The MCT 10 set-up software will be useful for:
• Planning a communication network off-line. MCT 10 contains a complete frequency converter database
• Commissioning frequency converters on line
• Saving settings for all frequency converters
• Replacing a frequency converter in a network
• Simple and accurate documentation of frequency converter settings after commissioning.
• Expanding an existing network
• Future developed frequency converters will be supported
MCT 10 set-up software supports Profibus DP-V1 via a Master class 2 connection. It makes it possible to on line read/write parameters in a frequency
converter via the Profibus network. This will eliminate the need for an extra communication network.
Save frequency converter settings:
78
VLT AQUA Low Harmonic Drive Operating In-
Control Terminals .
Available Literature for detailed information on this tool.
®
