4.3.5 Terminal Locations - Frame size D
Take the following position of the terminals into consideration when you design for cables access.

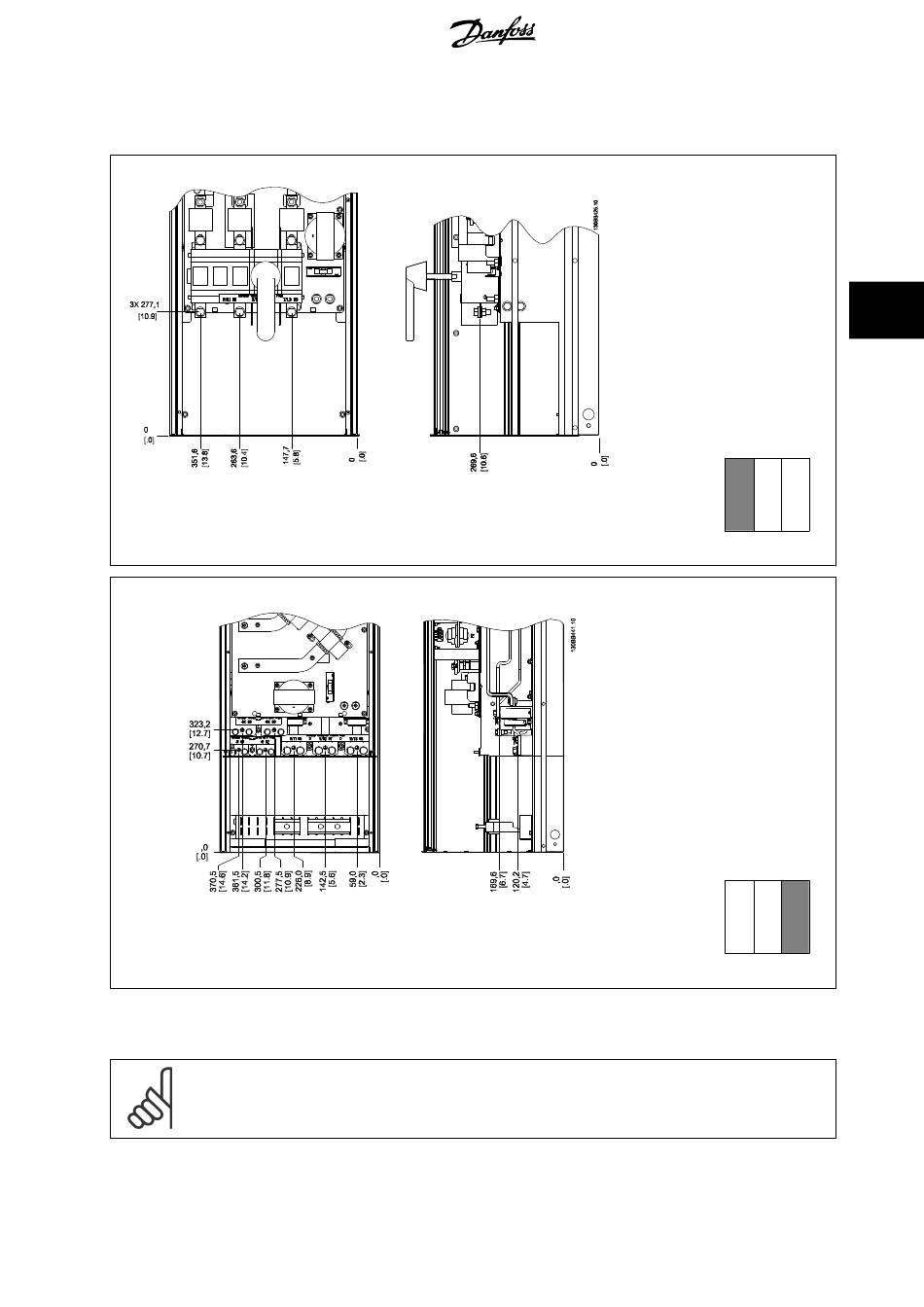

Illustration 4.12: Terminal locations D6 - filter
Illustration 4.13: Terminal locations D6 - drive
Be aware that the power cables are heavy and hard to bend. Consider the optimum position of the frequency converter for ensuring easy installation of
the cables.
NB!
All D frames are available with standard input terminals or disconnect switch
®
MG.20.T1.02 - VLT
is a registered Danfoss trademark
4 How to Install
4
Section shown
↓
Section shown
↓
