6.5

Display

Run up
Status line
Standby
Evacuation
The display shows measuring values, operating modes, device parameters and their
values, as well as functions of the eight buttons on the left and on the right side of the
display.
After it has been switched on, the Modul1000 displays some status information.

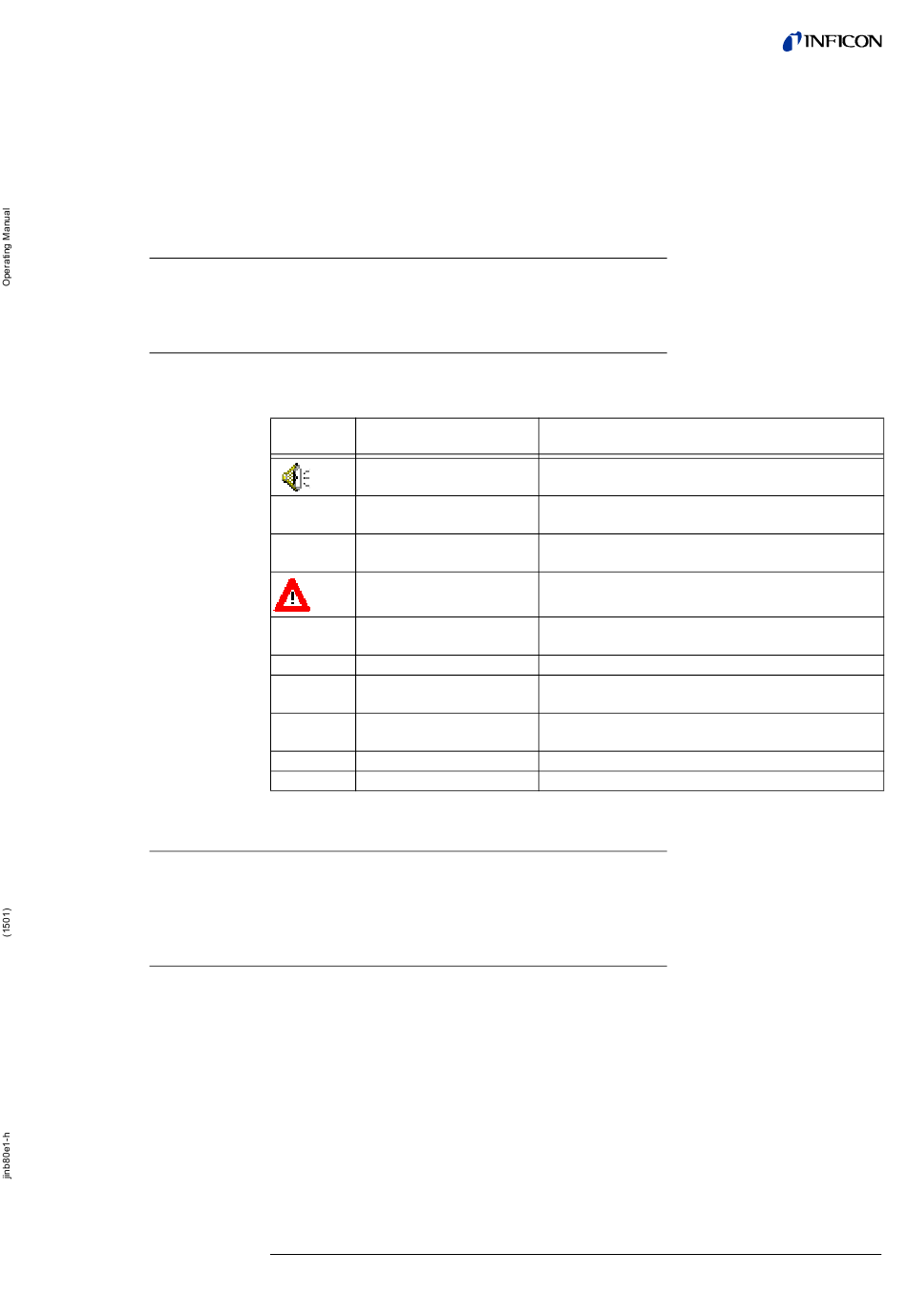

The following details on the device are shown in the status line at the bottom of the
display after the Modul1000 has run up.
Display
Meaning
symbols
Sound volume
S1, 2, 3 Trigger Level 1, 2, 3
• • Detected mass
Warning triangle
VAC Operating Mode
ZERO ZERO
COR Corrected leak rate
Auto Leak
Auto Leak Test
Test
I•Zero I•Zero
STABLE stable
After the run-up has been completed, the Modul1000 automatically switches over to
Standby mode and is ready for measurement.
Pressing the START button causes the Modul1000 to evacuate the inlet.
The evacuation time depends on the volume connected the Modul1000 and the fore-
vacuum pump or the partial flow pump.
Explanation
Refer to chapter Volume for the audible signal
If the trigger values are exceeded these signs are
inverted. (White on black background.)
The number of dots stands for the mass number
(4 dots = helium, 2 dots = hydrogen).
Refer to chapter 4.4.2
VAC, SNIFF, COMMAND or AUTO LEAK TEST
stand for the selected operating mode.
Indicates if ZERO-function is active.
It shows if the leak rate is corrected with the
machines factor.
Indicates that the mode is active
Indictes that the function I•Zero is active
Indicates that the function STABLE is active
