3.3.1

Desktop operation

3.3.2

Installation in switch cabinet

3-4
Description of equipment
The control unit can be placed on even desktops and does not slip.
1
2
3
4
5
6
7

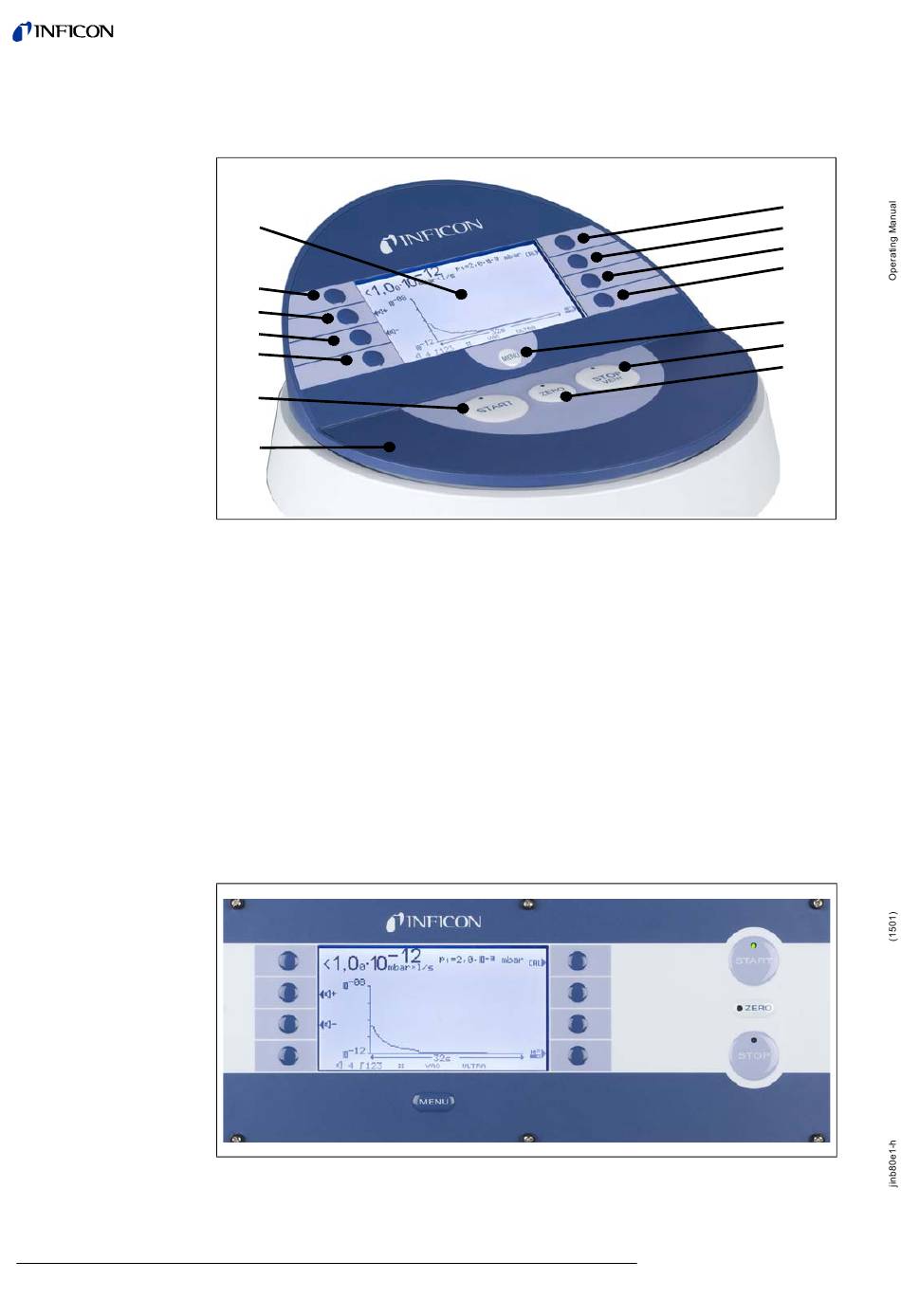

Fig. 3-5 Control Unit for Desktop Operation
Item Description
1 LCD display
2 Soft Key no. 1
3 Soft Key no. 2
4 Soft Key no. 3
5 Soft Key no. 4
6 START button with LED
7 Control Unit
The control panel (Control unit as mounting version) is intended to be integrated in
the front of a 19'' rack system.
Fig. 3-6 Control panel for the installation in a switch cabinet
Item Description
8 Soft Key no. 5
9 Soft Key no. 6
10 Soft Key no. 7
11 Soft Key no. 8
12 Menu button
12 STOP / Vent button with LED
14 ZERO button with LED
8
9
10
11
12
13
14
