9.5.3

Pressure Gauge

Connection of sensors with 4 ... 20
mA signal
9-16
Technical Data
Arrange the jumpers on the interface boards accordingly.
Notice:
1
+24V, 0.8 A
2
GND 24V
3
Input 1
4
GND 1
5
Input 2
6
GND 2

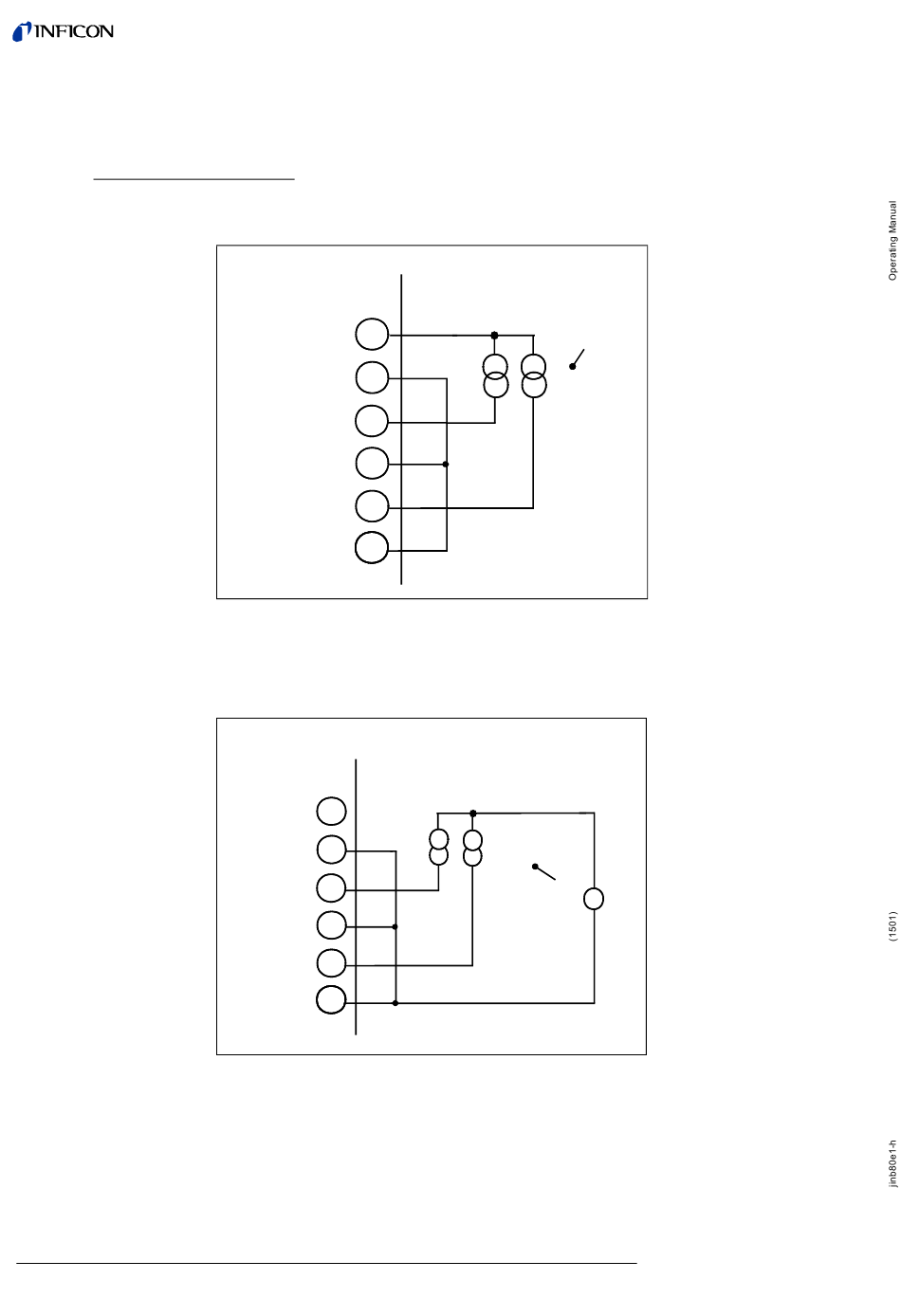

Fig. 9-5 Internal power supply +24 V
Item Description
1 Pressure sensors
Modul1000
1
+24V, 0.8 A
2
GND 24V
3
Input 1
4
GND 1
5
Input 2
6
GND 2
Fig. 9-6 External supply voltage 24V with common GND
Item Description
1 Pressure sensors
1
4 ... 20mA
4 ... 20 mA
1
+
24V
-
