Replace Vent Filter

Required Tools
Required material
7-14
Maintenance tasks
The flood filter is checked and replaced in the course of the 5000-hours mainte-
nance. In case of extreme operating conditions shorter maintenance times could be
reasonable.
• Allen key SW 8
• Replacement filter (2 pcs.)
Access to the flood filter is only possible when the cover of the Modul1000 has been
removed. Follow the instructions in
Please observe the safety instructions in this chapter.
Notice:
• To dismantle the vent filter, disconnect the hose connections of the filter from the
quick-connecting couplings. By pressing on the outside ring on the quick
connecting couplings, the hose can be pulled off. Please find the mounting
positions in the following
a
1
a

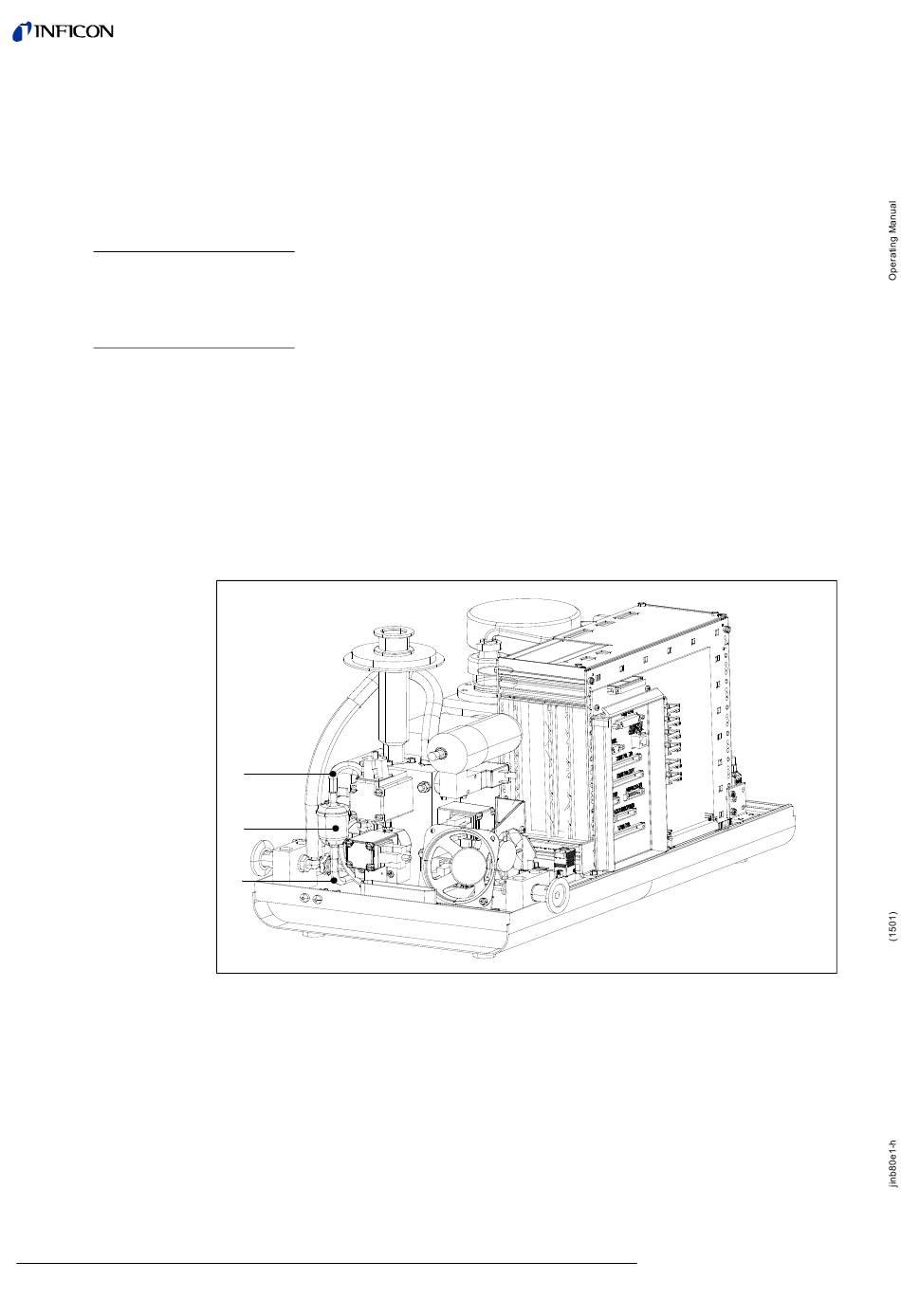

Fig. 7-8 Flood filter replacement in Modul1000
Item Description
1 Vent filter
Order No.: 200 000 683
7.5.1 Opening of the
Fig. 7-8.
Item Description
2 Hose routing
Device.
