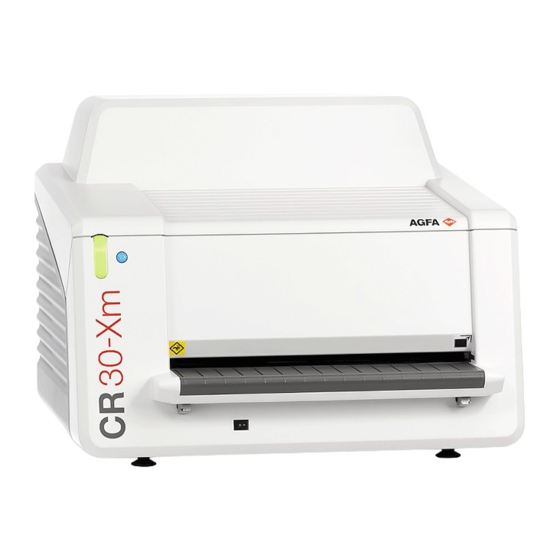

AGFA CR 30-X User Manual

Hide thumbs Also See for CR 30-X:

Service manual (443 pages)

User manual (120 pages)

User manual (55 pages)

Table Of Contents

Table of Contents

Quick Links

Troubleshooting

Need help?

Do you have a question about the CR 30-X and is the answer not in the manual?

Questions and answers

Himal Patel

May 12, 2025

CR 30 x cassete jam not removal

1 comments:

Mr. Anderson

May 20, 2025

To remove a jammed cassette from the AGFA CR 30-X:

1. Slide out the front cover.
2. Gently remove the jammed image plate. Do not use force. If it cannot be removed gently, contact your service organization.
3. If needed, manually release the cassette by accessing the front of the CR reader. Underneath, there is a silver bar in the middle that can be turned by hand to release the cassette.
4. Close the front cover after removal.

This answer is automatically generated

Summary of Contents for AGFA CR 30-X

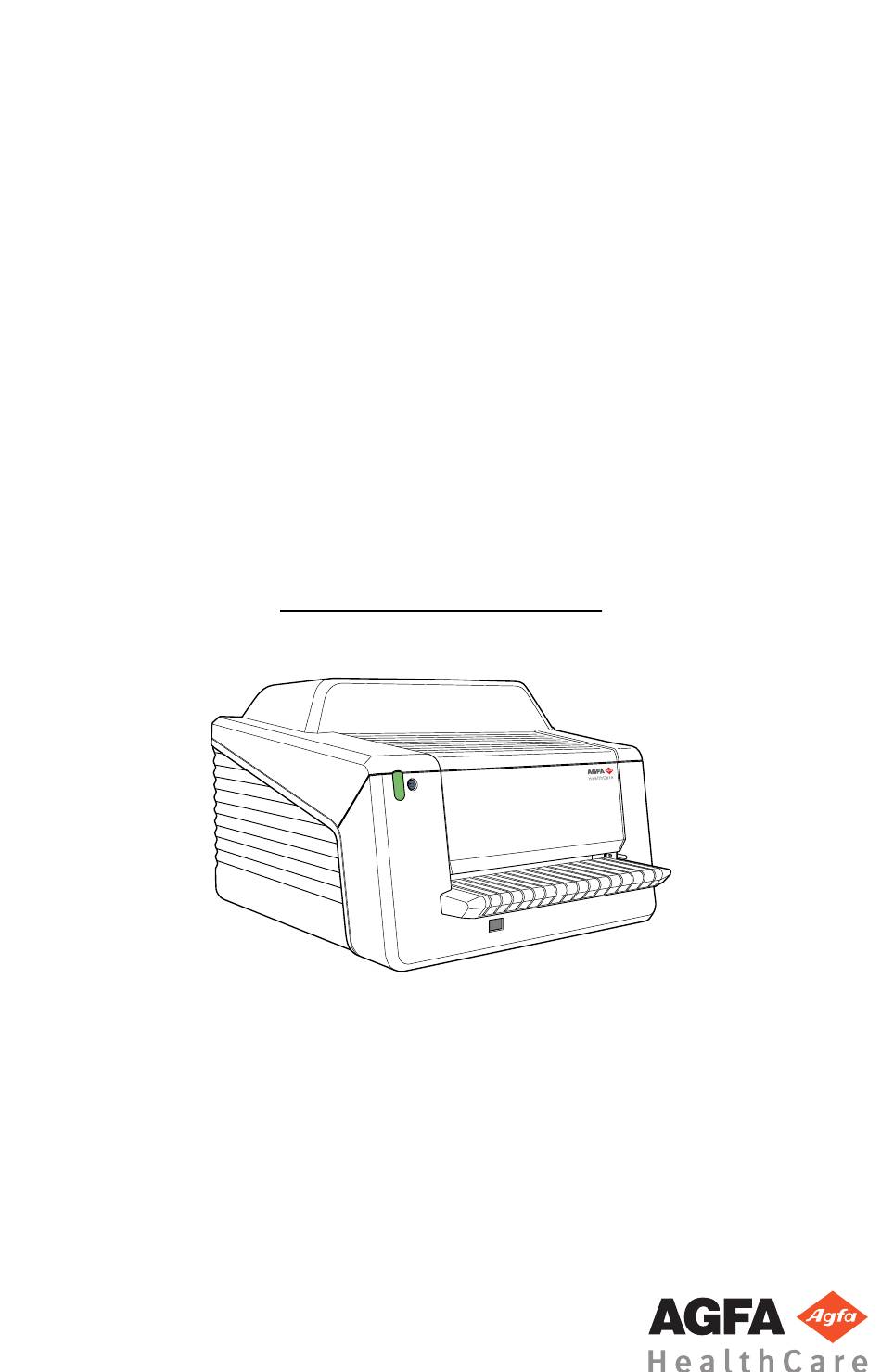

Page 1 CR 30-X, CR 30-Xm 5175/200 5175/205 5179/100 User Manual 2386I EN 20151020 1518...
Page 2: Table Of Contents
2 | CR 30-X, CR 30-Xm | Contents Contents Legal Notice ................4 Introduction to this Manual ........... 5 Scope .................6 About the safety notices in this document ....7 Disclaimer ..............8 Introduction to CR 30-X/CR 30-Xm ........9 Intended Use ............
Page 3 CR 30-X, CR 30-Xm | Contents | 3 CR 30-X/CR 30-Xm Features ......47 Operating Modes ......... 48 The User Interface ........49 Starting the device ...........51 Basic Workflow using Fast ID ........53 Select a patient and start the exam ....54 Insert the Cassette in the Digitizer ....55...
Page 4: Legal Notice
Agfa and the Agfa rhombus are trademarks of Agfa-Gevaert N.V., Belgium or its affiliates. CR 30-X/CR 30-Xm, NX, ADC QS and ADC VIPS are trademarks of Agfa HealthCare N.V., Belgium or one of its affiliates. All other trademarks are held by their respective owners and are used in an editorial fashion with no intention of infringement.
Page 5: Introduction To This Manual
CR 30-X, CR 30-Xm | Introduction to this Manual | 5 Introduction to this Manual Topics: • Scope • About the safety notices in this document • Disclaimer 2386I EN 20151020 1518...
Page 6: Scope
6 | CR 30-X, CR 30-Xm | Introduction to this Manual Scope This manual contains information for safe and effective operation of the CR 30-X and CR 30-Xm digitizer. 2386I EN 20151020 1518...
Page 7: About The Safety Notices In This Document
CR 30-X, CR 30-Xm | Introduction to this Manual | 7 About the safety notices in this document The following samples show how warnings, cautions, instructions and notes appear in this document. The text explains their intended use. DANGER: A danger safety notice indicates a hazardous situation of direct, immediate danger for a potential serious injury to a user, engineer, patient or any other person.
Page 8: Disclaimer
8 | CR 30-X, CR 30-Xm | Introduction to this Manual Disclaimer Agfa assumes no liability for use of this document if any unauthorized changes to the content or format have been made. Every care has been taken to ensure the accuracy of the information in this document.
Page 9: Introduction To Cr 30-X/Cr 30-Xm
CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm | 9 Introduction to CR 30-X/CR 30-Xm Topics: • Intended Use • Intended User • System Configuration • Equipment Classification • System Documentation • Training • Product Complaints • Compatibility •...
Page 10: Intended Use
10 | CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm Intended Use This digitizer must only be used to scan exposed X-ray cassettes, containing an erasable image plate (IP). The digitizer is part of a system, consisting of X-ray cassettes with erasable phosphor image plates and a workstation where the X- ray cassettes are identified.
Page 11: Main System Configuration
CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm | 11 Main System Configuration The system has the following configuration: • The CR 30-X or CR 30-Xm digitizer, a digitizer for image plates retaining latent X-ray images. The digitizer accepts one cassette containing one image plate at a time.
Page 12: Configuration With Fast Id
12 | CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm Configuration with Fast ID The digitizer is dedicated to a single workstation, on which the identification software as well as the image processing software is running. The identification data are transmitted from the workstation to the digitizer via DICOM Ethernet.
Page 13: Configuration With Id Tablet
CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm | 13 Configuration with ID Tablet Two workstations can serve a shared digitizer, provided that each workstation has an ID Tablet. There is no physical link required between the workstation and the digitizer.
Page 14: Optional System Components
14 | CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm Optional System Components Topics: • Powerware 5115 UPS • Full Leg Full Spine Application Components Powerware 5115 UPS The system can be extended with the Powerware 5115 uninterruptible power system (UPS).
Page 15: Equipment Classification
CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm | 15 Equipment Classification This device is classified as following: Table 1: Equipment classification Class I equipment Equipment in which protection against electric shock does not relay on basic insulation only, but includes a power supply cord with protective earth conductor.
Page 16: System Documentation
16 | CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm System Documentation The documentation shall be kept with the system for easy reference. The most extensive configuration is described within this manual, including the maximum number of options and accessories. Not every function, option or accessory described may have been purchased or licensed on a particular piece of equipment.
Page 17: Training
CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm | 17 Training The user must have received adequate training on the safe and effective use of the system before attempting to work with it. Training requirements may vary from country to country. The user must make sure that training is received in accordance with local laws or regulations that have the force of law.
Page 18: Product Complaints
18 | CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm Product Complaints Any health care professional (for example a customer or a user) who has any complaints or has experienced any dissatisfaction with the quality, durability, reliability, safety, effectiveness, or performance of this product must notify Agfa.
Page 19: Compatibility
CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm | 19 Compatibility The equipment must only be used in combination with other equipment or components if these are expressly recognized by Agfa as compatible. A list of such equipment and components is available from Agfa service on request.
Page 20: Compliance
20 | CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm Compliance Topics: • General • Safety • Laser Safety • Electromagnetic Compatibility • Harmonization 2386I EN 20151020 1518...
Page 21: General
CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm | 21 General • The product has been designed in accordance with the MEDDEV Guidelines relating to the application of Medical Devices and have been tested as part of the conformity assessment procedures required by 93/42/EEC Medical Device Directive (European Council Directive 93/42/EEC on Medical Devices).
Page 22: Connectivity
22 | CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm Connectivity The digitizer is connected to the workstation via Ethernet connection and uses the DICOM protocol to communicate with the workstation. 2386I EN 20151020 1518...
Page 23: Installation
CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm | 23 Installation WARNING: When installing the digitizer, care must be taken to ensure that there is either a mains plug or an all-cable disconnecting device in the internal installation fitted near the digitizer and that it is easily accessible.
Page 24: Mobile Use Installation
24 | CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm Mobile Use Installation In case of an installation in a mobile environment, such as a bus, van, etc, the manufacturer of the vehicle should ensure that all components of the system are fixed or can be fixed safely for transport.
Page 25: Image Quality Check After Transport
CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm | 25 Image quality check after transport WARNING: The image quality check must be performed after installation of the digitizer in a mobile environment and is recommended to be repeated after transport.
Page 26 26 | CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm Check the flat field image on the NX workstation for homogeneity and stripe artifacts. In case of problems, please inform your local Agfa service representative. 2386I EN 20151020 1518...
Page 27: Product Identification
CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm | 27 Product Identification CR 30-X product description Type of product Table-top digitizer Commercial name CR 30-X Model number 5175/200 5175/205 Original seller / manufacturer Agfa HealthCare N.V. Septestraat 27...
Page 28: Labels
28 | CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm Labels Topics: • General • Safety Instructions for Laser Products 2386I EN 20151020 1518...
Page 29: General
CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm | 29 General Always take into account the markings and labels provided on the inside and outside of the machine. A brief overview of these markings and labels and their meaning is given below.
Page 30 30 | CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm Do not put your fingers in the input slot of the digitizer, they can get hurt when caught between the cassette and the fixation. Insert the cassette as described in the basic workflow chapter.
Page 31 CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm | 31 Laser Warning Indicates the presence of a laser device. Note: The type label of the CR 30-Xm digitizer is placed at the chassis in the upper left corner when opening the front cover.
Page 32: Safety Instructions For Laser Products
32 | CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm Safety Instructions for Laser Products CAUTION! CUIDADO! CLASS 3B LASER RADIATION: RAYO LASER CLASE 3B: WHEN OPEN AVOID DIRECT EVITAR LA EXPOSICIÓN AL HAZ EXPOSURE TO THE BEAM! CUANDO LA TAPA EST Á...
Page 33: Cleaning And Disinfection
CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm | 33 Cleaning and Disinfection All appropriate policies and procedures should be followed to avoid contamination of the staff, patients and device. All existing universal precautions should be taken to avoid that the digitizer and its accessories come into contact with potential contaminations.
Page 34: Patient Data Security
34 | CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm Patient data security The user must ensure that the patients’ legal requirements are met and that the security of the patient data is guarded. The user must define who can access patient data in which situations.
Page 35: Maintenance
CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm | 35 Maintenance Topics: • Preventive Maintenance • Cleaning the optical unit 2386I EN 20151020 1518...
Page 36: Preventive Maintenance
Regular preventive maintenance needs to be done once a year or after 12000 cycles (whatever comes first). This maintenance can not be done by the user but has to be done by an Agfa certified field service engineer. Not performing the regular maintenance by appropriately certified people can have impact on warranty commitments.
Page 37: Cleaning The Optical Unit
CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm | 37 Cleaning the optical unit The only maintenance action which you must perform is checking the image quality. Refer to the User Manual of the NX Software. Cleaning the optic unit is required if stripes parallel to the image plate movement can be seen in the image.
Page 38 38 | CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm Open lid 4. Clean the scan line. Your last movement must be continuous from the rear to the front. 5. Re-insert the cleaning brush. 6. Close the cassette unit...
Page 39: Recurrent Safety Tests
CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm | 39 Recurrent safety tests The device shall be tested according to IEC 62353* in a time interval of at least 36 months or less if local regulations are different.
Page 40: Environmental Protection
40 | CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm Environmental protection Figure 1: WEEE symbol Figure 2: Battery symbol WEEE end user notice The directive on Waste Electrical and Electronic Equipment (WEEE) aims to prevent the generation of electric and electronic waste and to promote the reuse, recycling and other forms of recovery.
Page 41: Safety Directions
CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm | 41 Safety Directions WARNING: Safety is only guaranteed when an Agfa certified field service engineer has installed the product. WARNING: The user is responsible for judging image quality and controlling environmental conditions for diagnostic softcopy or print viewing.
Page 42: General Safety Instructions
42 | CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm CAUTION: Strictly observe all warnings, cautions, notes and safety markings within this document and on the product. CAUTION: All Agfa medical products must be used by trained and qualified personnel.
Page 43 CR 30-X, CR 30-Xm | Introduction to CR 30-X/CR 30-Xm | 43 • If you don’t operate the digitizer correctly or if you don’t have it serviced correctly, Agfa is not liable for resulting disturbances, damages or injuries. • If you notice conspicuous noise or smoke, disconnect the digitizer immediately.
Page 44: Quality Control
Apply regular quality control according local regulations. If no specific regulations are valid, a regular quality control by means of the Agfa Auto QC2 tool is required at least once a month to maintain a safe and effective system. For mammography, Agfa recommends to use the “Routine Quality Control Tests for Full Field Digital Mammography Systems”...
Page 45: Getting Started
CR 30-X, CR 30-Xm | Getting started | 45 Getting started Topics: • Basic Features • Starting the device • Basic Workflow using Fast ID • Basic Workflow using ID Tablet • Stopping the Device 2386I EN 20151020 1518...
Page 46: Basic Features
46 | CR 30-X, CR 30-Xm | Getting started Basic Features Topics: • CR 30-X/CR 30-Xm Features • Operating Modes • The User Interface 2386I EN 20151020 1518...
Page 47: Cr 30-X/Cr 30-Xm Features
• With the dedicated ID station of the CR 30-X/CR 30-Xm, the following features are available: • quickly identifying cassettes without the need for an ID Tablet, •...
Page 48: Operating Modes
48 | CR 30-X, CR 30-Xm | Getting started Operating Modes The digitizer can be operated in two modes: operator mode and service mode. Topics: • Operator Mode • Service Mode Operator Mode The operator mode groups all basic functions which are aimed at radiographers: •...
Page 49: The User Interface
CR 30-X, CR 30-Xm | Getting started | 49 The User Interface The digitizer interfaces with the user via: • an erase button, • a status indicator, • a main switch. Status indicator Erase button Main switch DICOM Ethernet connection Topics: •...
Page 50 50 | CR 30-X, CR 30-Xm | Getting started plate of the cassette inserted next. If no cassette with image plate has been inserted after 60 seconds, the system automatically returns to standby mode. Status Indicator The indicator informs the user by light signals about the status of the digitizer.
Page 51: Starting The Device
CR 30-X, CR 30-Xm | Getting started | 51 Starting the device 1. Turn on the UPS (optional accessory) to supply electricity to the control PC and the digitizer. Check whether the UPS is connected to a power outlet. Press and hold the On button approximately one second until you hear the UPS beep.
Page 52 52 | CR 30-X, CR 30-Xm | Getting started 3. Switch on the ID Tablet. Only in a configuration with ID Tablet. For more information, refer to the document Getting Started with the ID Tablet. 4. Make sure the digitizer is connected to the control PC and that the control PC is running the appropriate NX software.
Page 53: Basic Workflow Using Fast Id
CR 30-X, CR 30-Xm | Getting started | 53 Basic Workflow using Fast ID Topics: • Select a patient and start the exam • Insert the Cassette in the Digitizer • Identify and Digitize the Image • Check the image •...
Page 54: Select A Patient And Start The Exam
54 | CR 30-X, CR 30-Xm | Getting started Select a patient and start the exam At the NX workstation: 1. Open the Worklist window of NX. In the Worklist window, you can view and manage the exams that are scheduled via the Worklist pane.
Page 55: Insert The Cassette In The Digitizer
CR 30-X, CR 30-Xm | Getting started | 55 Insert the Cassette in the Digitizer CAUTION: Image quality may suffer if a cassette and plate is not scanned soon after exposure. The Agfa phosphor has excellent dark decay characteristics. Two hours after exposure, approximately 80% of the energy stored upon exposure is still available.
Page 56: Identify And Digitize The Image
56 | CR 30-X, CR 30-Xm | Getting started Identify and Digitize the Image An unidentified cassette is inserted in the digitizer. The NX software must be operational, otherwise the digitizer is locked and the status indicator is flashing red.
Page 57: Check The Image
CR 30-X, CR 30-Xm | Getting started | 57 Check the image At the NX workstation: 1. Select the relevant image on which quality control is to be performed. 2. Prepare the image for diagnosis by using e.g. L/R markers or annotations.
Page 58: Remove The Cassette And Insert The Next One
58 | CR 30-X, CR 30-Xm | Getting started Remove the cassette and insert the next one At the digitizer: 1. When the digitizer has finished treating the cassette, the status indicator constantly lights up in green. 2. Remove the cassette from the cassette slot.
Page 59: Basic Workflow Using Id Tablet
CR 30-X, CR 30-Xm | Getting started | 59 Basic Workflow using ID Tablet Topics: • Select a patient and start the exam • Identify the cassette • Insert the Cassette in the Digitizer • Digitize the Image • Check the image •...
Page 60: Select A Patient And Start The Exam
60 | CR 30-X, CR 30-Xm | Getting started Select a patient and start the exam At the NX workstation: 1. Open the Worklist window of NX. In the Worklist window, you can view and manage the exams that are scheduled via the Worklist pane.
Page 61: Identify The Cassette
CR 30-X, CR 30-Xm | Getting started | 61 Identify the cassette At the NX workstation: 1. Insert a cassette in the ID Tablet. 2. In the Examination window, select the right thumbnail in the Image Overview. 3. Click ID or press F2.
Page 62: Insert The Cassette In The Digitizer
62 | CR 30-X, CR 30-Xm | Getting started Insert the Cassette in the Digitizer CAUTION: Image quality may suffer if a cassette and plate is not scanned soon after exposure. The Agfa phosphor has excellent dark decay characteristics. Two hours after exposure, approximately 80% of the energy stored upon exposure is still available.
Page 63: Digitize The Image
CR 30-X, CR 30-Xm | Getting started | 63 Digitize the Image 1. The digitizer will start digitizing the image plate. The digitizer converts the information of the latent image to digital data. 2. After digitizing, the digitizer: • Transmits the digital image data to the image processing station (‘destination’).
Page 64: Check The Image
64 | CR 30-X, CR 30-Xm | Getting started Check the image At the NX workstation: 1. Select the relevant image on which quality control is to be performed. 2. Prepare the image for diagnosis by using e.g. L/R markers or annotations.
Page 65: Remove The Cassette And Insert The Next One
CR 30-X, CR 30-Xm | Getting started | 65 Remove the cassette and insert the next one At the digitizer: 1. When the digitizer has finished treating the cassette, the status indicator constantly lights up in green. 2. Remove the cassette from the cassette slot.
Page 66: Stopping The Device
66 | CR 30-X, CR 30-Xm | Getting started Stopping the Device Topics: • Before Switching Off • Switching Off 2386I EN 20151020 1518...
Page 67: Before Switching Off
CR 30-X, CR 30-Xm | Getting started | 67 Before Switching Off Check that the digitizer is not scanning an image plate. If the digitizer is scanning an image plate, the status indicator is flashing green. 2386I EN 20151020 1518...
Page 68: Switching Off
68 | CR 30-X, CR 30-Xm | Getting started Switching Off It is recommended to switch off the digitizer at the end of the day. Note: Only switch off the digitizer if you do not intend to digitize emergency image plates overnight. Switching on the digitizer takes approximately 60 seconds.
Page 69 CR 30-X, CR 30-Xm | Getting started | 69 Note: Step 3 is only applicable if your system is extended with an uninterruptible power supply (UPS). 2386I EN 20151020 1518...
Page 70: Operating Cr 30-X/Cr 30-Xm
70 | CR 30-X, CR 30-Xm | Operating CR 30-X/CR 30-Xm Operating CR 30-X/CR 30-Xm This chapter provides information about functions that are available in operator mode. Finally you will find some preventive maintenance and troubleshooting guidelines. Topics: • Reading an Emergency Image Plate •...
Page 71: Reading An Emergency Image Plate
CR 30-X, CR 30-Xm | Operating CR 30-X/CR 30-Xm | 71 Reading an Emergency Image Plate Note: Reading an emergency image plate is a licensed functionality, necessary to facilitate the emergency cases and to improve the workflow. In emergency situations, it is possible to open an emergency exam at the NX workstation without patient details and to digitize the image plate without having identified the cassette.
Page 72: Re-Erasing An Image Plate
72 | CR 30-X, CR 30-Xm | Operating CR 30-X/CR 30-Xm Re-erasing an Image Plate At the end of a normal or emergency digitizing cycle, the digitizer returns an erased image plate. However, in the following cases, you must re-erase the...
Page 73 CR 30-X, CR 30-Xm | Operating CR 30-X/CR 30-Xm | 73 As a result, the digitizer starts erasing the image plate: • The upper part of the status indicator is continuously lighting up in blue. • The lower part of the status indicator is flashing green.
Page 74: Reading The Initialization Data Of An Image Plate
74 | CR 30-X, CR 30-Xm | Operating CR 30-X/CR 30-Xm Reading the Initialization Data of an Image Plate The initialization data stored in the RF-tag of the tray can be read via the NX workstation. Reading the initialization data of an image plate can be necessary in the following cases: •...
Page 75: Reading The Initialization Data In A Configuration With Fast Id
CR 30-X, CR 30-Xm | Operating CR 30-X/CR 30-Xm | 75 Reading the Initialization Data in a Configuration with Fast ID 1. Check that the system is ready for operation: The status indicator on the digitizer constantly lights up in green.
Page 76 76 | CR 30-X, CR 30-Xm | Operating CR 30-X/CR 30-Xm Once the cassette is locked, the status indicator on the digitizer is flashing green. The digitizer starts reading the initialization data. 5. When the digitizer has finished reading the initialization data, the cassette is unlocked.
Page 77: Reading The Initialization Data In A Configuration With Id Tablet
CR 30-X, CR 30-Xm | Operating CR 30-X/CR 30-Xm | 77 Reading the Initialization Data in a Configuration with ID Tablet 1. Click on Read and Initialize Cassette (1) in the Functionality Overview pane of the Main Menu window of the NX station.
Page 78: Troubleshooting
78 | CR 30-X, CR 30-Xm | Operating CR 30-X/CR 30-Xm Troubleshooting Topics: • Digitizer Remote Display • Troubleshooting Checklist • Removing a Jammed Image Plate • Behavior in Case of Power Failure 2386I EN 20151020 1518...
Page 79: Digitizer Remote Display
CR 30-X, CR 30-Xm | Operating CR 30-X/CR 30-Xm | 79 Digitizer Remote Display Digitizer Remote Display is an application running on the NX PC. To verify if Digitizer Remote Display is running, check if the Digitizer Remote Display icon is present in the Windows taskbar: To start the Digitizer Remote Display, go to the Windows Start menu >...
Page 80: Troubleshooting Checklist
80 | CR 30-X, CR 30-Xm | Operating CR 30-X/CR 30-Xm Troubleshooting Checklist The troubleshooting for a malfunction of the digitizer consists of two parts: • The first is always to check the status indicator on the digitizer. • Other errors need more detailed information and instructions to repair the malfunction, or they can only be fixed by a Service engineer.
Page 81 CR 30-X, CR 30-Xm | Operating CR 30-X/CR 30-Xm | 81 Condition Message at Status Action Digitizer indicator Remote Display Connection No error Red blinking Check if Digitizer problem message on NX fast Remote Display is between running. Start/restart digitizer and...
Page 82 82 | CR 30-X, CR 30-Xm | Operating CR 30-X/CR 30-Xm Status Condition Control PC message Action indicator plate from the transport unit manually and close the digitizer. Switch on the digitizer. After restart remove the cassette and put the image plate back into the cassette.
Page 83 CR 30-X, CR 30-Xm | Operating CR 30-X/CR 30-Xm | 83 Status Condition Control PC message Action indicator present at the PC and re-scan the cassette, if necessary. If the In order to release the image is present, the cassette, confirm the cassette was not message.
Page 84: Removing A Jammed Image Plate
84 | CR 30-X, CR 30-Xm | Operating CR 30-X/CR 30-Xm Removing a Jammed Image Plate The user is allowed to open the front cover, e.g. to solve image plate jams at the front side. When opening the front panel, all motor driven system movements will be stopped (including the laser).
Page 85 CR 30-X, CR 30-Xm | Operating CR 30-X/CR 30-Xm | 85 Note: Never use force to clear the jammed image plate. If it is not possible to gently remove the image plate, call your local service organization. Note: After a jam, the image plate can be used again if not damaged.
Page 86: Behavior In Case Of Power Failure
86 | CR 30-X, CR 30-Xm | Operating CR 30-X/CR 30-Xm Behavior in Case of Power Failure Note: The description below is only applicable if an uninterruptible power supply (UPS) is put into the CR 30-X/CR 30-Xm System configuration. In case of a power failure, the system is still connected to the UPS. Two situations are possible: •...
Page 87: Technical Data
CR 30-X, CR 30-Xm | Technical Data | 87 Technical Data Topics: • Specifications • Pixel matrix size 2386I EN 20151020 1518...
Page 88: Specifications
88 | CR 30-X, CR 30-Xm | Technical Data Specifications Labelling 93/42 EEC 'Medical Devices' (Europe), EN 60601-1 ETL us certified, UL 60601-1 Second c ETL us Edition (North America), AAMI ES 60601-1:2005 + A2:2010 c ETL certified, CSA C 22.2 No 601.1, c ETL us CSA C 22.2 No.60601-1:2008 + COR...
Page 89 2500 lux Barometric pressure during 70 kPa to 106 kPa operation Related altitude on site 3000 m to 0 m Environmental conditions (during storage) In line with IEC721-3-1: 1K2 (CR 30-X) / 1K4 (CR 30-Xm) and 1M2 2386I EN 20151020 1518...
Page 90 90 | CR 30-X, CR 30-Xm | Technical Data Temperature -25 °C to +55 °C Environmental conditions (during transport) In line with IEC721-3-2: 2K2 and 2M2 with following restrictions: Temperature -25 °C to +60 °C 5-200 Hz (vertical, longitudinal, Vibration...
Page 91 CR 30-X, CR 30-Xm | Technical Data | 91 Physical emissions Noise emission (sound power level according to ISO 7779) • During scanning max. 65 dB(A) • Standby max. 55 dB(A) Heat emission 60 W ≈ 204 BTU/h • Standby CR 30-X: 85 W ≈...
Page 92: Pixel Matrix Size
92 | CR 30-X, CR 30-Xm | Technical Data Pixel matrix size Cassette type Format Resolution Width x Width x (cm) (pixel/mm) Length Length (pixels) (mm) CR MD4.0T 35x43 3480 x 4248 348,0 x General 424,8 CR MD4.0T 35x35 3480 x 3480...
Page 93: Remarks For Hf-Emission And Immunity
CR 30-X, CR 30-Xm | Remarks for HF-emission and immunity | 93 Remarks for HF-emission and immunity Remarks for HF-emission and immunity It is hereby certified that the digitizer has interference suppression according to the EN 55011 Class A as well as the FCC Rules CR47 Part 15 Class A.
Page 94 94 | CR 30-X, CR 30-Xm | Remarks for HF-emission and immunity RF emissions in accordance Class A The device is suitable for use in with CISPR 11 all establishments other than domestic, and may be used in Harmonic emissions in...
Page 95 CR 30-X, CR 30-Xm | Remarks for HF-emission and immunity | 95 Voltage The quality of the • < 5% U • < 5% U breakthrough voltage supply should (> 95% (> 95% s, short term correspond to that of...
Page 96 96 | CR 30-X, CR 30-Xm | Remarks for HF-emission and immunity Recommended protective distance: Conducted d = 1.2 high frequency 150 kHz to disturbance 80 MHz variables in accordance with IEC 61000-4-6 Radiated high 3 V/m 3 V/m d = 1.2...
Page 97 CR 30-X, CR 30-Xm | Remarks for HF-emission and immunity | 97 investigation of the location is recommended, to ascertain the electromagnetic environment as a result of stationary high frequency transmitters. If the field strength of the device exceeds the level of agreement given above, the device must be observed with regard to its normal operation at each place of use.
Page 98 98 | CR 30-X, CR 30-Xm | Remarks for HF-emission and immunity The distance can be determined through the equation for each respective column. P is the rated power of the transmitter in watts (W) according to the manufacturer information on the transmitter, only for transmitters where the rated power is not mentioned in the above table.
