3. Product Overview
3

Product Overview

The following sections are about the physical structure of the device, input/
output ports and connectors.
ç VINX-120-HDMI-ENCFrontandRearView
ç VINX-110-HDMI-DECFrontandRearView
ç VINX-120AP-HDMI-ENC
ç VINX-120AP-HDMI-ENC-DNT
ç VINX-210AP-HDMI-ENC
ç VINX-110AP-HDMI-DEC
ç ElectricalConnections
ç FrontPanelLEDs
ç FrontPanelButtons
ç DIPSwitch
ç VINXDeviceConcept
ç VideoInterface
ç AnalogAudioInterface
ç USBInterface
ç Dante®AudioOutputInterface
ç RS-232Interface
VINX-1x0-HDMIExtenders–User'sManual

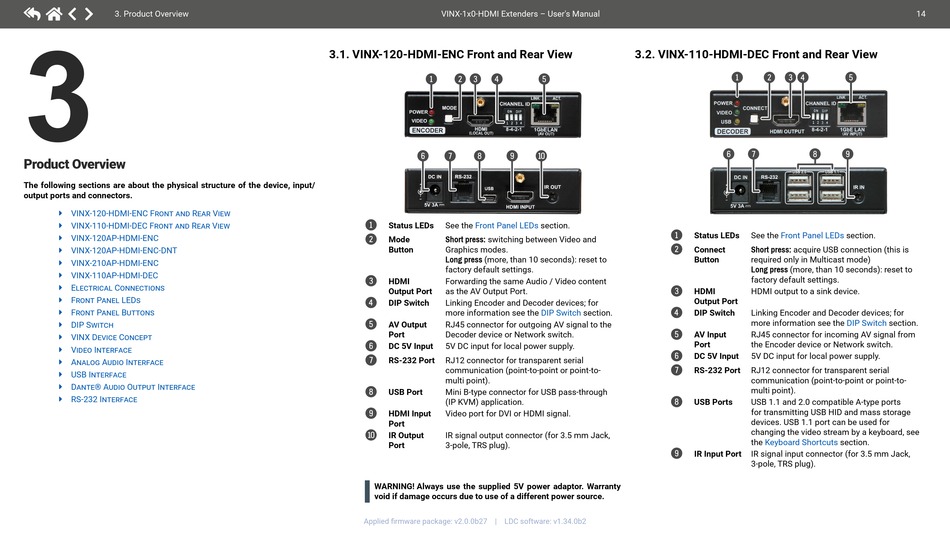

3.1. VINX-120-HDMI-ENC Front and Rear View

1 2 3 4
6 7 8 9
1 Status LEDs See the FrontPanelLEDs
2 Mode Short press: switching between Video and
Button Graphics modes.
Long press (more, than 10 seconds): reset to
factory default settings.
3 HDMI ForwardingthesameAudio/Videocontent
Output Port as the AV Output Port.
4
DIP Switch LinkingEncoderandDecoderdevices;for
more information see the
5 AV Output RJ45connectorforoutgoingAVsignaltothe
Port Decoder device or Network switch.
6 DC 5V Input 5VDCinputforlocalpowersupply.
7 RS-232 Port RJ12 connector for transparent serial
communication (point-to-point or point-to-
multi point).
8 USB Port Mini B-type connector for USB pass-through
(IP KVM) application.
9 HDMI Input Video port for DVI or HDMI signal.
Port
q IR Output IRsignaloutputconnector(for3.5mmJack,
Port 3-pole, TRS plug).
WARNING!
Always use the supplied 5V power adaptor. Warranty
void if damage occurs due to use of a different power source.
Appliedfirmwarepackage:v2.0.0b27 | LDCsoftware:v1.34.0b2

3.2. VINX-110-HDMI-DEC Front and Rear View

5
q
section.
1 Status LEDs
2 Connect
Button
3 HDMI
Output Port
4
DIP Switch section. DIP Switch
5 AV Input
Port
6 DC 5V Input
7 RS-232 Port
8 USB Ports
9 IR Input Port
1 2 34 5
6 7 8 9
See the FrontPanelLEDs section.
Short press: acquire USB connection (this is
required only in Multicast mode)
Long press (more, than 10 seconds): reset to
factory default settings.
HDMI output to a sink device.
LinkingEncoderandDecoderdevices;for
more information see the DIP Switch section.
RJ45connectorforincomingAVsignalfrom
the Encoder device or Network switch.
5VDCinputforlocalpowersupply.
RJ12 connector for transparent serial
communication (point-to-point or point-to-
multi point).
USB 1.1 and 2.0 compatible A-type ports
for transmitting USB HID and mass storage
devices. USB 1.1 port can be used for
changing the video stream by a keyboard, see
the Keyboard Shortcuts section.
IRsignalinputconnector(for3.5mmJack,
3-pole, TRS plug).
