3. Product Overview

3
P roduct Overview
The following sections are about the physical structure of the device, input/
output ports, and connectors:

Front View

Î
Rear View -Transmitters
Î
Rear View - Receivers
Î
Electrical Connections
Î
Multimode Single Fiber Extender Concept
Î
Optical Interface
Î
Video and Audio Interface
Î
Control Features
Î
HDMI20-OPTC series – User's Manual

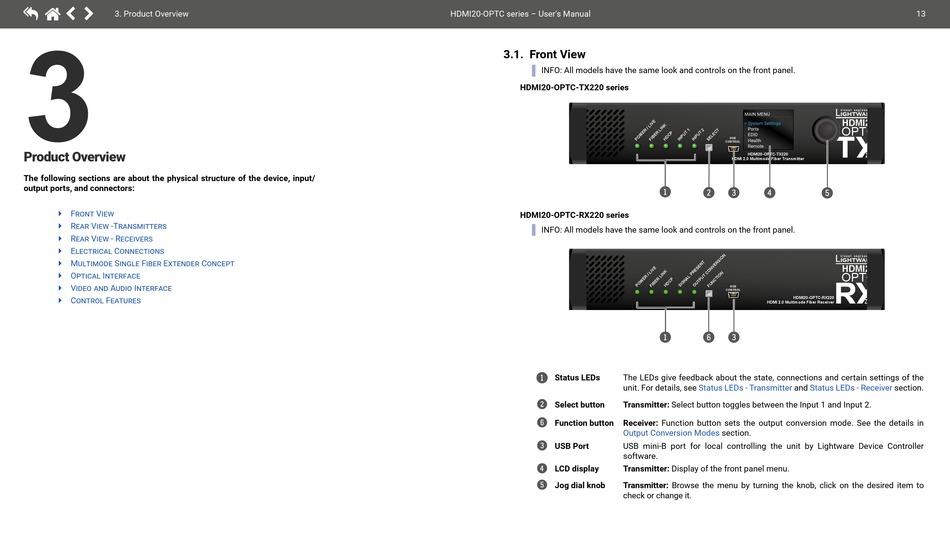

3.1. Front View
INFO: All models have the same look and controls on the front panel.
HDMI20-OPTC-TX220 series
HDMI20-OPTC-RX220 series
INFO: All models have the same look and controls on the front panel.
Status LEDs The LEDs give feedback about the state, connections and certain settings of the
1
unit. For details, see
Select button Transmitter: Select button toggles between the Input 1 and Input 2.
2
6 Function button Receiver: Function button sets the output conversion mode. See the details in
Output Conversion Modes
3 USB Port USB mini-B port for local controlling the unit by Lightware Device Controller
software.
LCD display Transmitter: Display of the front panel menu.
4
5 Jog dial knob Transmitter: Browse the menu by turning the knob, click on the desired item to
check or change it.
MAIN MENU
> System Settings
Ports
EDID
USB
Health
CONTROL
Remote
HDMI20-OPTC-TX220
HDMI 2.0 Multimode Fiber Transmitter
1
2 3 4 5
USB
CONTROL
HDMI20-OPTC-RX220
HDMI 2.0 Multimode Fiber Receiver
1 6 3
Status LEDs - Transmitter and Status LEDs - Receiver
section.
13
HDMI20
OPTC
220
HDMI20
OPTC
220
section.
