D/I Mux III User's Manual
MODEM CABLE PINOUTS

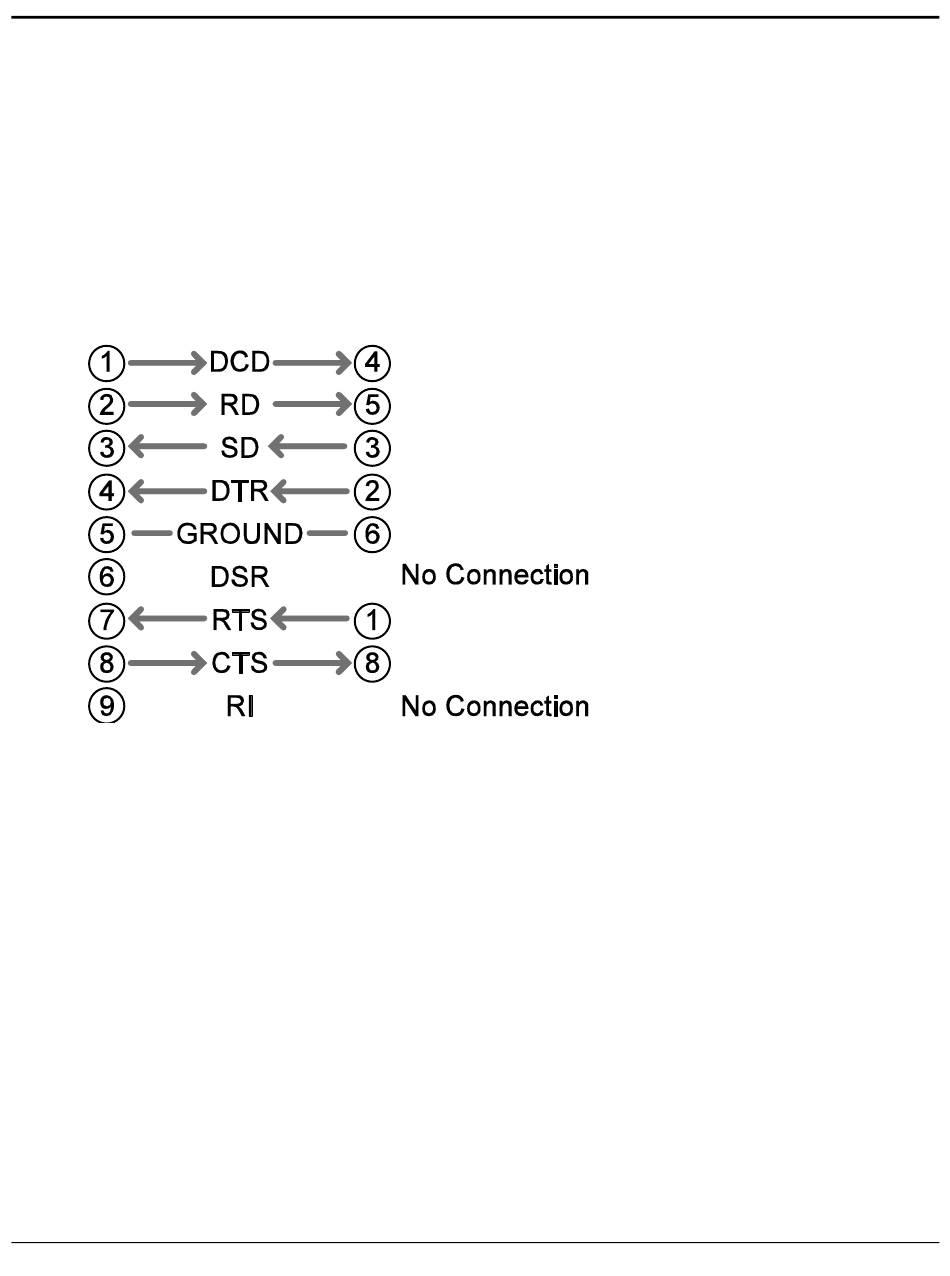

The table and diagram below show the pinouts for the cable that connects the AMCU with the modem.
The Modem end of the cable is a dB-9 connector, while the AMCU end is an RJ-45 connector (again this
is for a Hays modem, if the DB connector on your modem is different please consult your modem
manual)..
Modem end of cable
(Male dB-9)
AMCU end of cable
(Male RJ-45)
Figure J-19 Cable Pin Outs
306
