Chapter 5. Diagnostics
An understanding of the jackfields on the Dual Enhanced DSX-1 Interface and Dual CSU Interface is
helpful when performing T1 transmission testing. Refer to Figures 5-4 and 5-5 for details on the
operation of the jackfields. T1 test equipment usually accesses the system and network through a
jackfield.

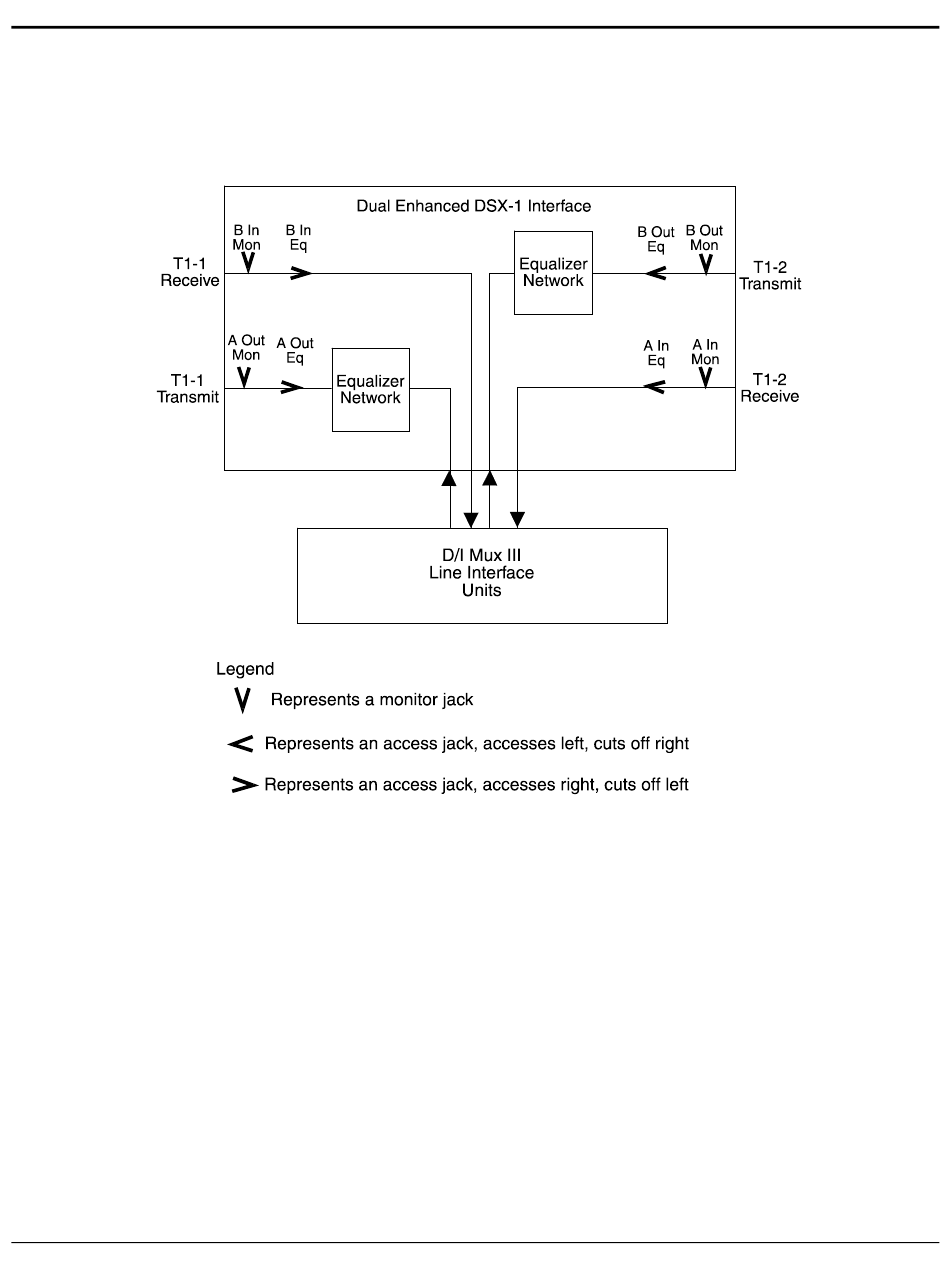

Figure 5-4. Dual Enhanced DSX-1 Interface - Jackfield Block Diagram (part number 30118-102)
173
