Electrical Installation
Connecting cables
1. Align the female connector of the M23 feed-in
cable to the male input connector (X1) of the 1
servo drive.
2. Fully rotate the threaded ring of the cable
connector counterclockwise. Use the marking
OPEN as a reference for the cable connector.
3. Ensure the marking OPEN on the cable connector
is facing the servo drive.
4. Press the connector towards the electronic
5 5 housing on the servo drive until the sealing on
the servo connector is covered entirely by the
cable connectors.
5. Tighten the M23 feed-in cable connector by
rotating the threaded ring clockwise out of the
flat area around the OPEN marking.

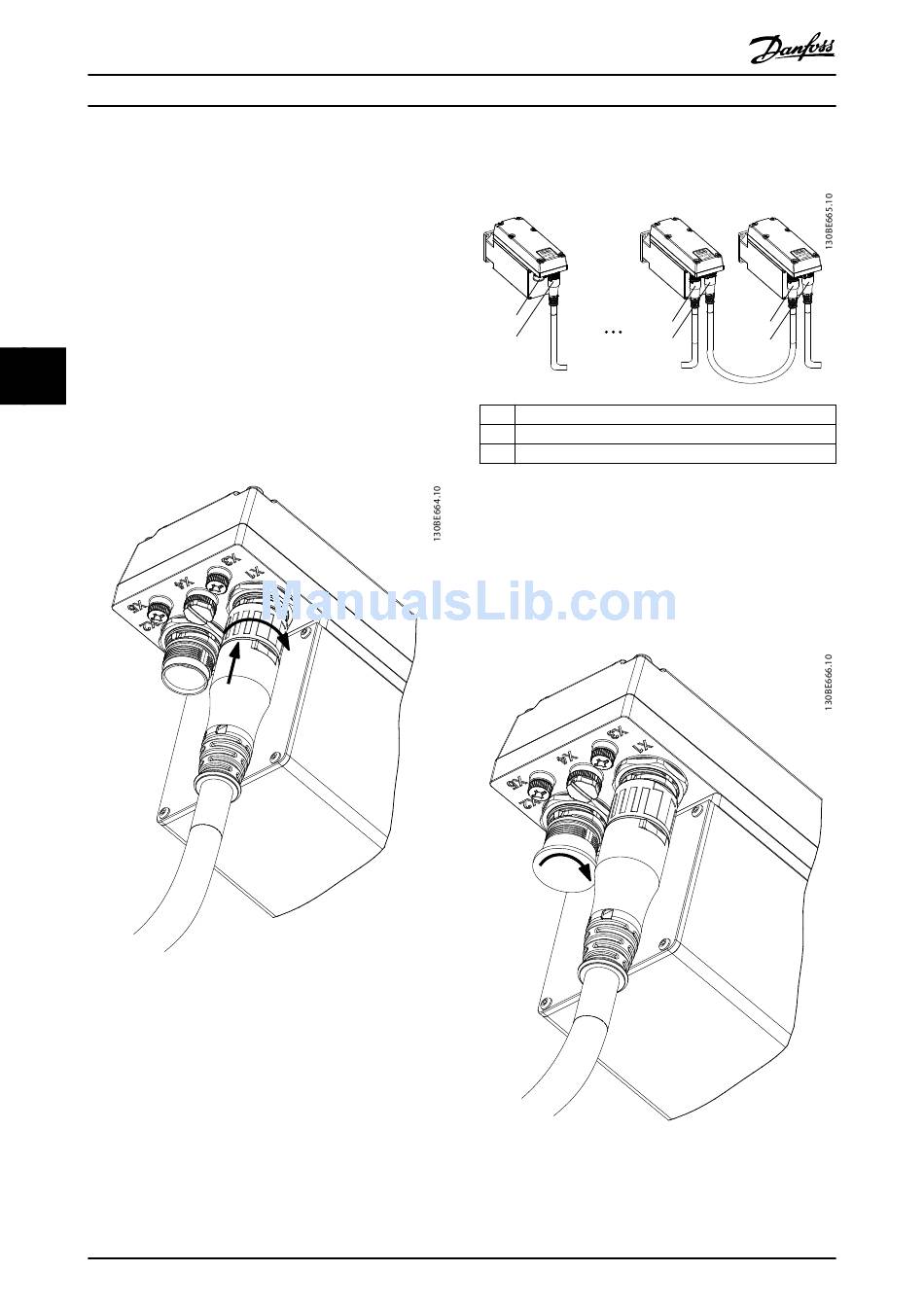

Illustration 5.7 Connecting the M23 Feed-In Cable
6. To add more servo drives in daisy-chain format,
connect the male connector of the loop cable to
the female connector (X2) of the 1
7. Connect the female connector of the loop cable
to the male connector (X1) of the next servo
drive, and so on.
8. Tighten the threaded rings by hand as described
in step 5.
40
®
VLT Integrated Servo Drive ISD
9.
st
ISD 510
1
2
3
Illustration 5.8 Adding Servo Drives in Daisy-Chain Format
10.
11.
st
servo drive.
Illustration 5.9 Mounting the M23 Blind Cap
Danfoss A/S © 12/2015 All rights reserved.
®
510 System
Ensure that there is no mechanical tension on the
cables.
ISD 510
n 2
3
2
1 1
X1 Male connector
X2 Female connector
M23 Metal blind cap
Screw the M23 metal blind cap onto the unused
M23 female output connector (X2) on the last
servo drive in the ISD 510 servo system.
Tighten the metal blind cap until the sealing on
the servo connector is covered.
ISD 510
1
2
1
